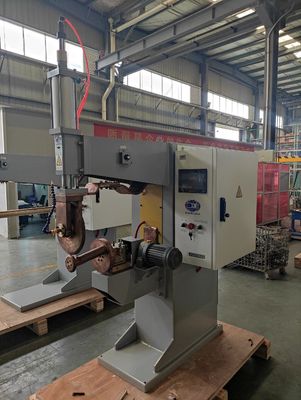

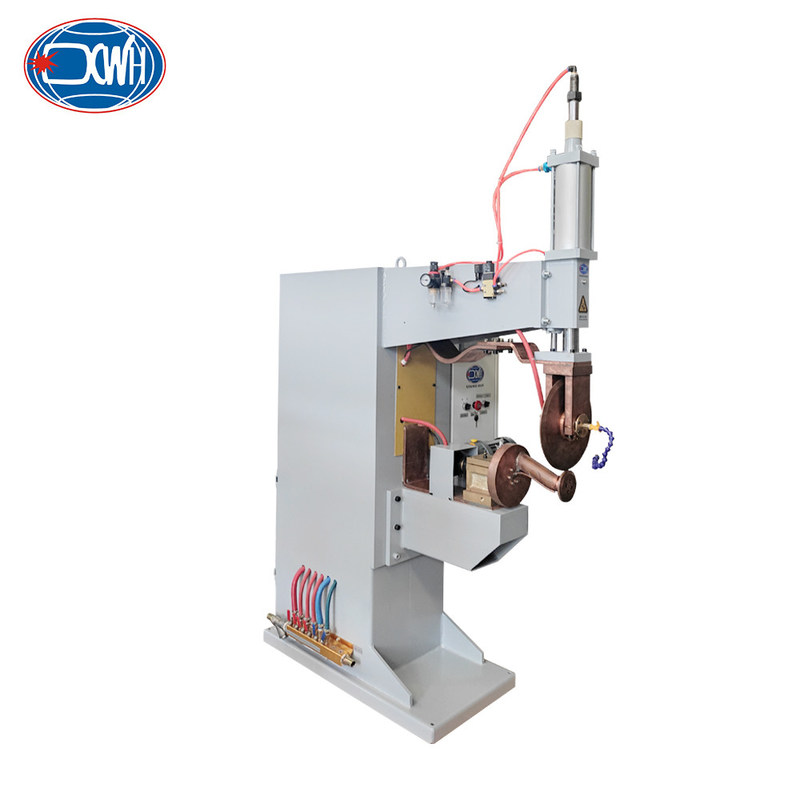

Air Pressure Vertical Circular Seam Welding Machine Longitudinal Seam Welder
| Brand Name: | XWH |
| Model Number: | FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E |
| MOQ: | 1 Set |
| Price: | $6000.00 - $7000.00 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Circular Seam Welding Machine
,Vertical Circular Seam Welding Machine
,Air Pressure Longitudinal Seam Welder
Seam welding machine refers to a resistance welding machine that assembles welded parts into overlapping or butt joints and places them between two roller electrodes. The roller electrodes pressurize the welded parts and rotate them, continuously or intermittently pulse to form a continuous weld seam. It can also be said that seam welding machines are an evolution of spot welding. Seam welding is widely used in the manufacturing of joints that require sealing, and sometimes it is also used to weld ordinary non sealing sheet metal parts.
|
Model Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
|
Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
|
Voltage input | V
| 380
| 380
| 380
| 380
| 380
|
|
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
|
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
|
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
|
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
|
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
|
Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
|
Motor Power | W | 550 | 750 | 750 | 750 | 400 |
|
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
| Weight | Kg | 380 | 510 | 630 | 530 | 700 |
Advantages
1.The welding process is stable and easy to adjust.
2.Internal cooling used in the welder, while external cooling of the welding wheel.
3.The rotating part is embedded silver tile structure, the conductive seat is fully sealed and lubricating, which improves the conductivity and the rotation flexibility.
4.Two kinds of welding modes: Horizontal and Vertical.
5.Widely used in hardware fittings, electrical, automobile, fuel tank and other manufacturing industries industry.
Detail Images
Images
Application
Please note: the welding machine can be custom-made according to your requirements.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
