Resistance Stainless Steel Spot Welder Table Electronic Component Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | XWH |
| Certification | CE |
| Model Number | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity | 1 |
| Price | USD8500-USD95000 |
| Packaging Details | Wooden Case |
| Delivery Time | 15 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50 sets/month |
Product Details
| Product Name | Electronic Component Welding Machine | Machine Type | Resistance Welding Machine |
|---|---|---|---|
| Application | Electronic Production | Function | Resistance Spot Welding |
| Keyword | Resistance Spot Welding Equipment | Welding Material | Alloy Metal Aluminum Stainless Steel |
| Max. Welding Capacity | 6+6mm | After Warranty Service | Free SpareVideo Technical Support, Online Support And Spare Parts Parts, Field Installation, Commissioning And Training |
| After-sales Service Provided | Free Spare Parts, Field Installation, Commissioning And Training | Certification | CE |
| Highlight | Resistance Stainless Steel Spot Welder,Stainless Steel Spot Welder Table,380V Electronic Component Welding Machine |
||
Product Description
Resistance Stainless Steel Spot Welder Table Electronic Component Welding Machine
Product Introduction

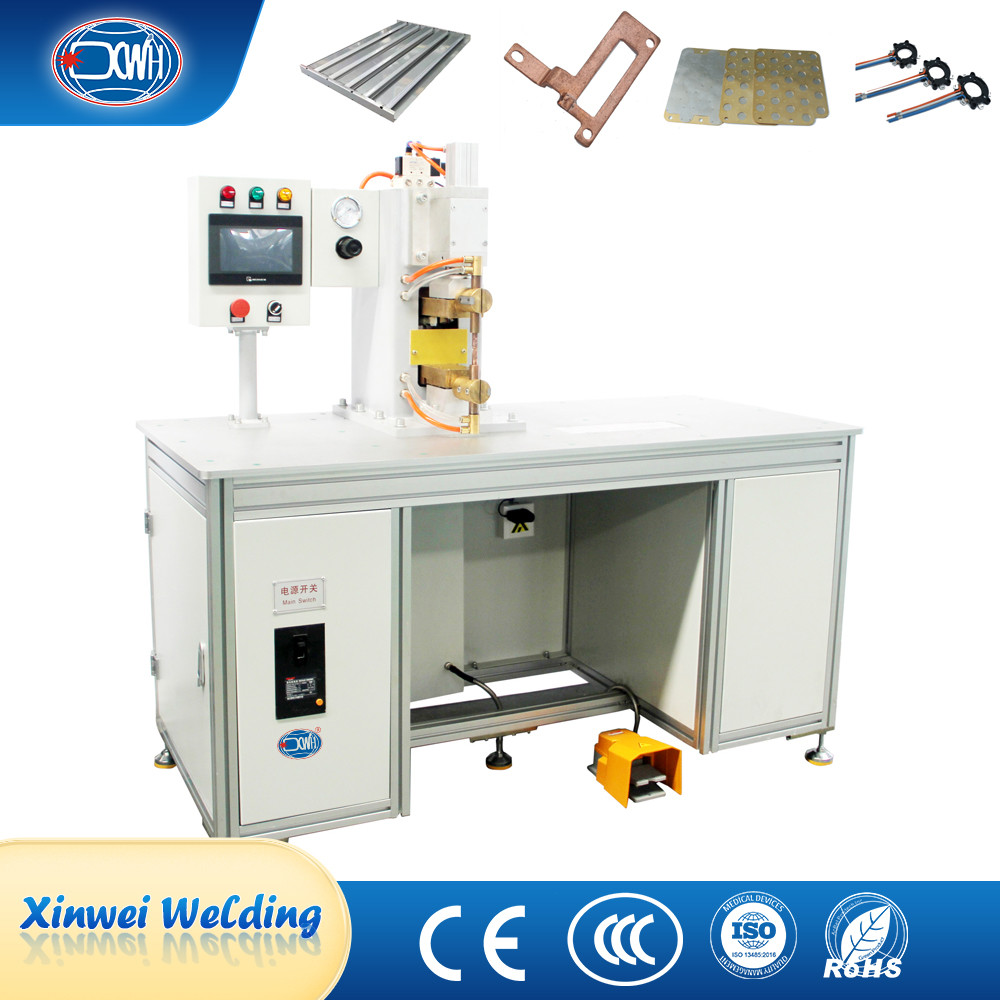

The electronic component desktop spot welding machine consists of a profile frame, welding transformer, water system, gas system, microcomputer resistance welding machine controller, foot switch, etc.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The upper electrode is pressurized by a cylinder, making pressure adjustment convenient and accurate
2. The upper electrode moves vertically up and down, and has a smooth adjustable working stroke
3. Adopting a direct solenoid valve to accelerate action response speed, significantly increase the operating speed of the upper pressure head, and reduce air flow loss
4. The descent and ascent speed of the pressurization head can be adjusted arbitrarily, easing the pressure impact on the work and reducing noise
Major Structure

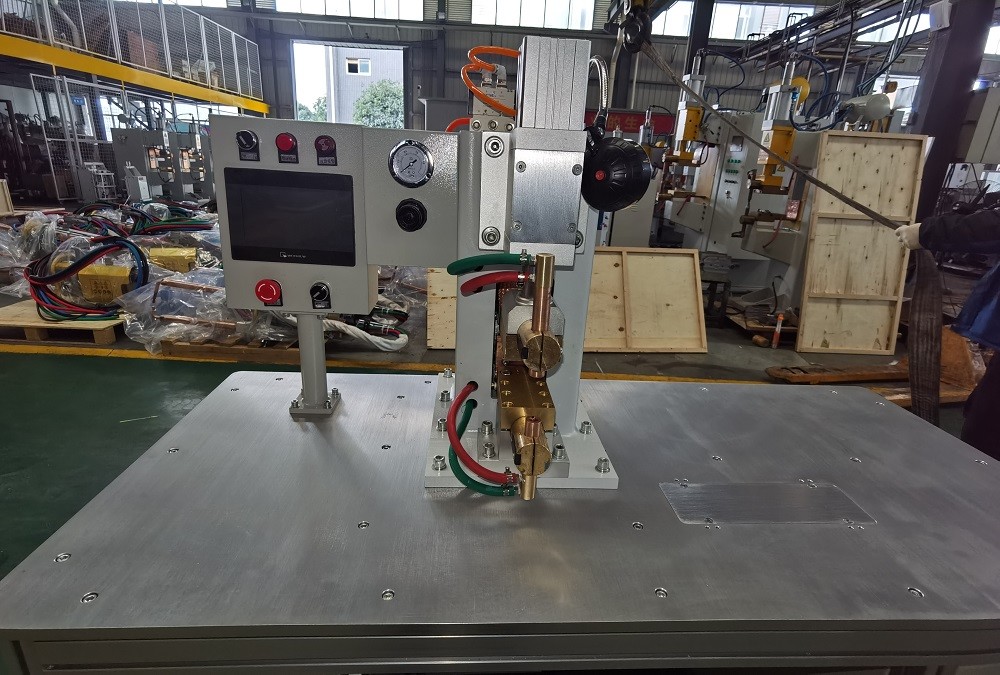

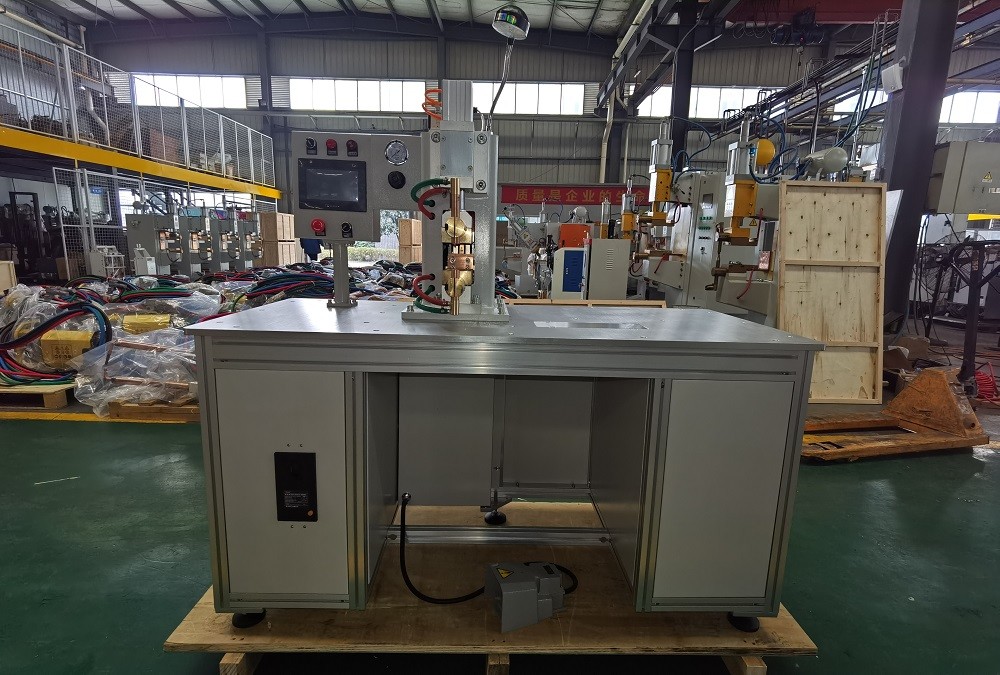

Reference Pictures
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
