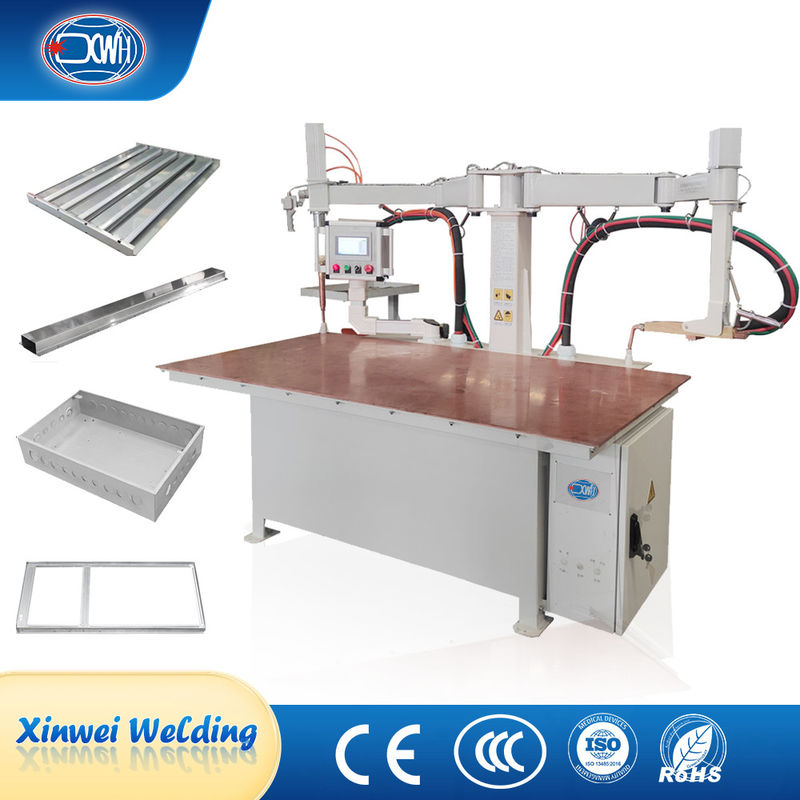

Manual Table Spot Welding Machine with Commissioning and Training Service

Place of Origin	China
Brand Name	Xingweihan
Certification	CE
Model Number	DN(B)-160, DN(B)-200, DN(B)-250
Minimum Order Quantity	1 Set
Price	USD15000-USD18000
Packaging Details	Non-fumigation Wooden Case
Delivery Time	15 working days
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	500 sets/month

Product Details

Cooling System	Water Cooling	Weight	500kg
Dimension	Customized	After Warranty Service	Video Technical Support, Online Support And Spare Parts
After-sales Service Provided	Free Spare Parts, Field Installation, Commissioning And Training	Machine Type	Resistance Welding Machine
Welding Thickness	4-6mm	Power Supply	AC220V/380V/50Hz
Highlight	Resistance Table Spot Welding Machine , 380V Table Spot Welding Machine , Manual Table Spot Welder

Leave a Message

Product Description

Product Description:

The rock arm spot welder is cutomized with two welding guns and makes it more efficient. The platform table spot welding machine is suitable for welding sheet metal, such as door panels, metal cabinets and so on.

Features:

1. Easy operation: The lower electrode is a welding electrode platform, and the workpiece can be directly placed on the platform for welding.

2. Flexible activity: The upper electrode is flexible, and there is no need to move the workpiece during welding, improving production efficiency.

3. Firm welding points: During welding, the pressure is generated by the cylinder, ensuring a balanced and consistent welding pressure for the workpiece and ensuring welding strength.

4. Beautiful solder joints: After welding, there are no welding pits or marks on the front of the workpiece, improving the appearance quality of the product.

5. Reduce process: After welding the workpiece, there is no need to apply putty or polish, reducing the processing process and saving the number of workers

6. Easy to use: The operation is simple and convenient. When welding, simply press the switch, and the operator can easily operate it with or without experience.

7. Scope of application: Used for welding metal plates such as cold plates, galvanized plates, stainless steel plates, etc.

8. Applicable industries: chassis cabinets, elevators, electrical cabinets, automobiles, steel and wood furniture, kitchen appliances, and other industries.

Technical Parameters:

Items Models	DN(B)-100	DN(B)-160	DN(B)-200	DN(B)-250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current (KA)	30	35	40	45
Duty cycle(%)	50	50	50	50
Max. force(N)	6000	6000	10000	15000
Electrode length( MM)	450	450	450	500
Working stroke( MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max. welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

Images:

Application:

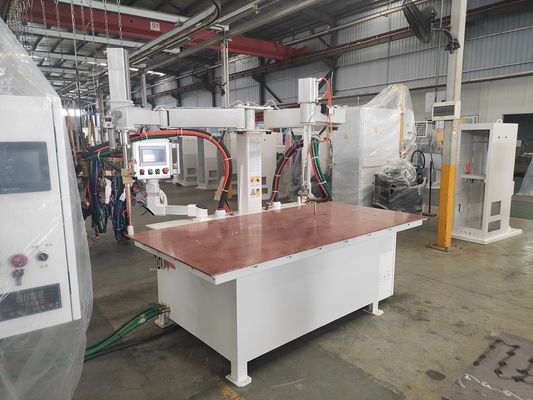

Manual Table Spot Welding Machine with Commissioning and Training Service 2

Packing and Shipping:

Table Spot Welding Machine is packaged and shipped in the following manner:

The product is carefully packed with a Non-fumigation Wooden Case.
The Wooden Case is placed in a sturdy shipping container.
The container is then sealed and shipped.

FAQ:

Q1. What brand name is this Table Spot Welding Machine?: A1. This Table Spot Welding Machine is Rocker Arm Spot Welder.
Q2. What model numbers are available?: A2. This Table Spot Welding Machine is available in DN(B)-160, DN(B)-200, and DN(B)-250.
Q3. Where is this Table Spot Welding Machine manufactured?: A3. This Table Spot Welding Machine is manufactured in China.
Q4. Does the Table Spot Welding Machine come with certification?: A4. Yes, this Table Spot Welding Machine comes with CE certification.
Q5. What is the minimum order quantity?: A5. The minimum order quantity is 1 set.; Company Profile:
