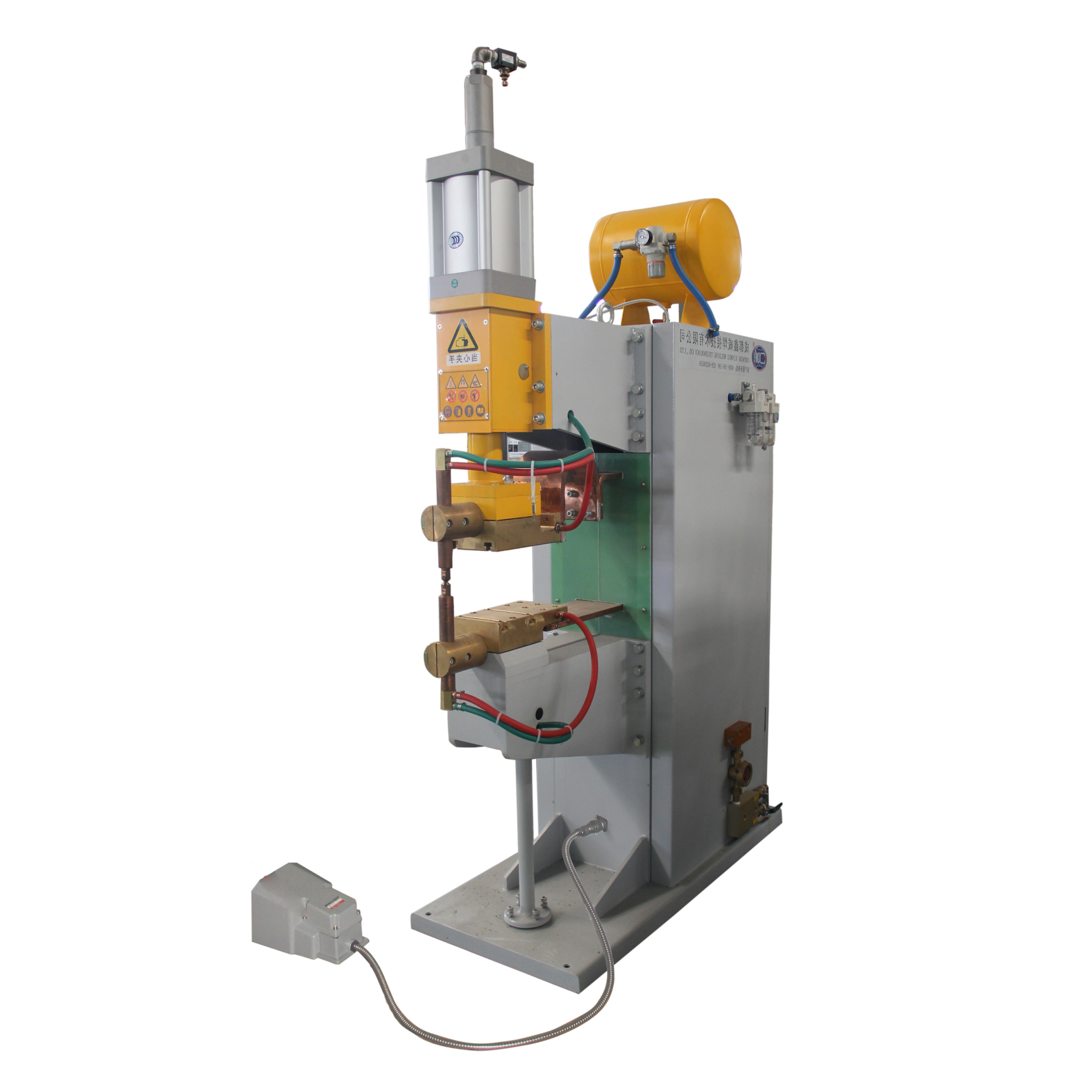

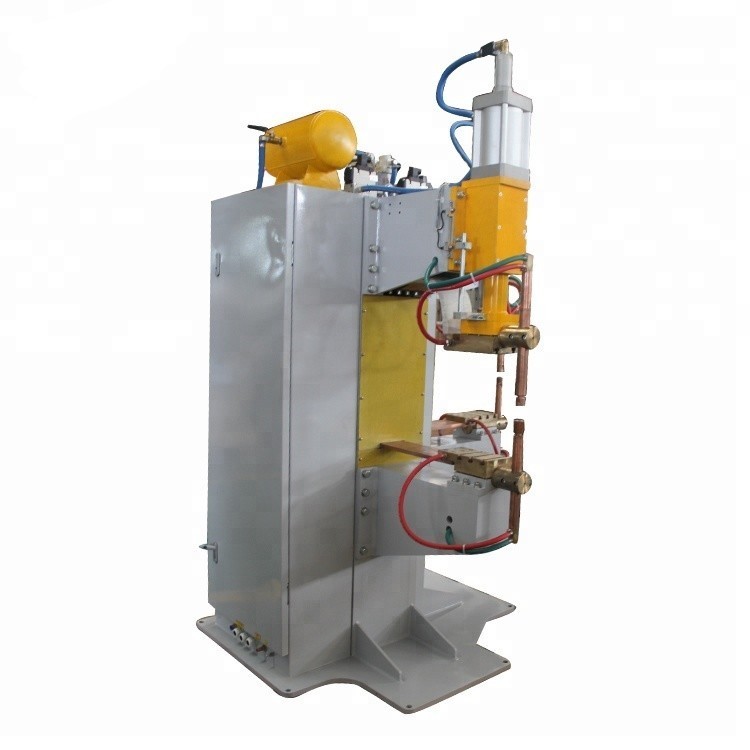

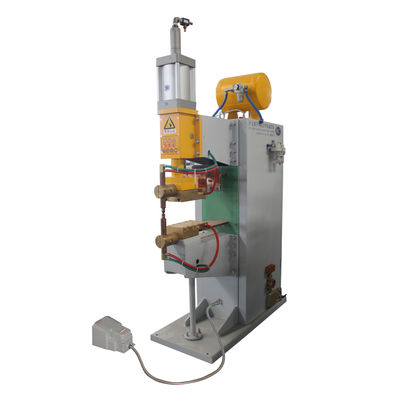

Resistance Projection Auto Body Point Welding Machine Stationary Spot Welding
| Brand Name: | XWH |
| Model Number: | DTN |
| MOQ: | 1 |
| Price: | USD3500-USD5000 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Resistance Projection Welder
Welding Material:
Stainless Steel , Galvanized Steel , Iron
Machine Type:
AC Spot Welding Machine
Frequency:
50HZ/60HZ
Rated Capacity:
40KVA-400KVA
MOQ:
MOQ
Max. Welding Thickness:
6mm+6mm
Feature:
Stationary Welding Machine
Supply Ability:
500 sets/month
Highlight:
40KVA Auto Body Point Welding Machine
,Galvanized Steel Point Welding Machine
,Resistance Projection Stationary Spot Welding Machine
Product Description
Resistance Projection Auto Body Point Welding Stationary Spot Welding Machine
Feature:
1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.
2. Spot welder can store up to 15 groups of welding modes, which can meet the requirements of different workpieces.
3. D(T)N series fixed spot welder can weld plate, nut, steel bar, metal wire, etc.
Parameter List
| Item Model | DN-40 | DN-63
| DN-80 | DN-100 | DN-125 | DN-160 | DN-200 |
| Rated capacity (KVA) | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Rated Primary voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Rated frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max. short circuit current (KVA) | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
| Rated duty cycle (%) | 50
| 50 | 50 | 50 | 50 | 50 | 50 |
| Throat (mm) | 400 | 400 | 400 | 450 | 450 | 450 | 450 |
| Max. force at electrodes (N) | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
| Working stroke (mm) | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
| Welding capability (Low carbon steel ) (mm) | 2.5+2.5 | 3.0+3.0 | 4.0+4.0 | 4.5+4.5 | 5.0+5.0 | 5.0+5.0 | 6.0+6.0 |
Why choose this our product?
With Stationary Spot Welding Machine, you can experience many advatages.It is widely used in nut, studs, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.
Company Information
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.
