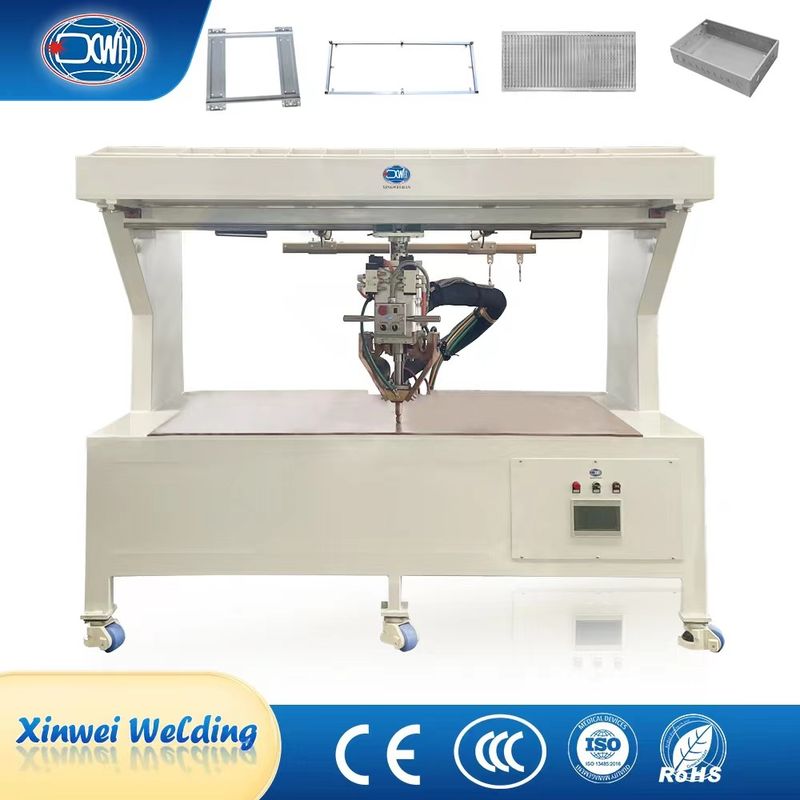

Resistance Aluminum Welding Equipment Spot Welder Roof Table Spot Welding Machine

Large Image : Resistance Aluminum Welding Equipment Spot Welder Roof Table Spot Welding Machine

Product Details:

Place of Origin:	China
Brand Name:	Xingweihan
Certification:	CE
Model Number:	DN(B)-160, DN(B)-200, DN(B)-250

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD15000-USD25000
Packaging Details:	Non-fumigation Wooden Case
Delivery Time:	15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/month

Contact Now

Resistance Aluminum Welding Equipment Spot Welder Roof Table Spot Welding Machine

Description

Weight:	2000kg	Cooling System:	Water Cooling
After Warranty Service:	Video Technical Support, Online Support And Spare Parts	Welding Mode:	Manual/Automatic
Welding Time:	0.1-3.0s	Dimension:	Customized
Power Supply:	AC220V/380V/50Hz	Welding Thickness:	4-6mm
Highlight:	Resistance Aluminum Welding Equipment , Roof Table Spot Welder

Product Description:

The roof platform spot welding machine is composed of components such as a frame, water cable, welding head moving mechanism, electrode components, welding transformer, welding machine controller, air circuit system, cooling water circuit system, etc.

Features:

Easy operation: The lower electrode is a welding electrode platform, and the workpiece can be directly placed on the platform for welding.
Flexible activity: The upper electrode is flexible, and there is no need to move the workpiece during welding, improving production efficiency; At the same time, the welding platform can be lifted and lowered within a certain range, facilitating the welding of products of different shapes and heights.
Firm welding points: During welding, the pressure is generated by the cylinder, ensuring a balanced and consistent welding pressure for the workpiece and ensuring welding strength.

Technical Parameters:

Items Models	DN(B)-100	DN(B)-160	DN(B)-200	DN(B)-250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current (KA)	30	35	40	45
Duty cycle(%)	50	50	50	50
Max. force(N)	6000	6000	10000	15000
Electrode length( MM)	450	450	450	500
Working stroke( MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max. welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

General Structures:

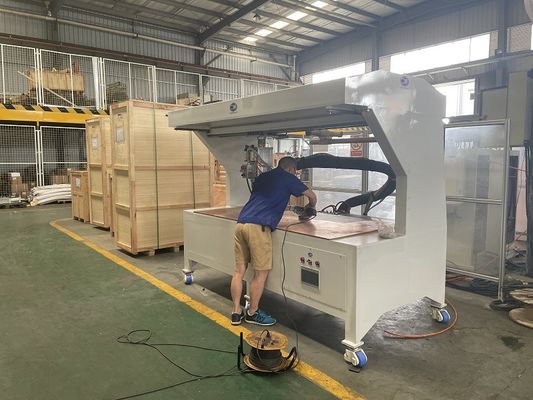

Application:

Resistance Aluminum Welding Equipment Spot Welder Roof Table Spot Welding Machine 3

Packing and Shipping:

Packaging and shipping of Table Spot Welding Machine:

The product will be placed in Non-fumigation wooden case
The box will be filled with foam to secure the product from potential damage during handling and shipping.
The box will also be clearly labeled with the product name, model, and relevant information.
The box will be sealed with tape for extra security.
The package will be shipped out via standard courier service.
