Spot Welder Platform Spot Welding Machine For Electrical Panel Box
| Place of Origin | China |
|---|---|
| Brand Name | XWH |
| Certification | CE |
| Model Number | DN(B)-160, DN(B)-200, DN(B)-250 |
| Minimum Order Quantity | 1 Set |
| Price | USD14000-USD18000 |
| Packaging Details | Non-fumigation Wooden Case |
| Delivery Time | 15 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500 sets/month |
Product Details
| Product Name | Platform Welding Machine | Application | For Welding Electrical Panel Box |
|---|---|---|---|
| Function | Sheet Metal Spot Welding | Machine Type | Manual Welding |
| Keyword | Hand Spot Welder | Welding Material | Steel Copper Aluminum |
| Feature | Durable | Warranty | 12 Months Guarantee |
| After-sales Service Provided | Free Spare Parts, Field Installation, Commissioning And Training | After Warranty Service | Video Technical Support, Online Support And Spare Parts |
| Highlight | Automobiles Hand Spot Welder,Customized Platform Spot Welding Machine,AC380V Platform Spot Welder |
||
Product Description

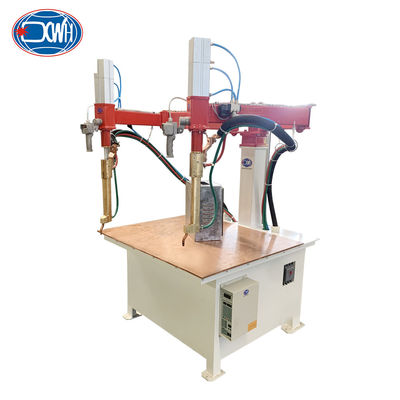

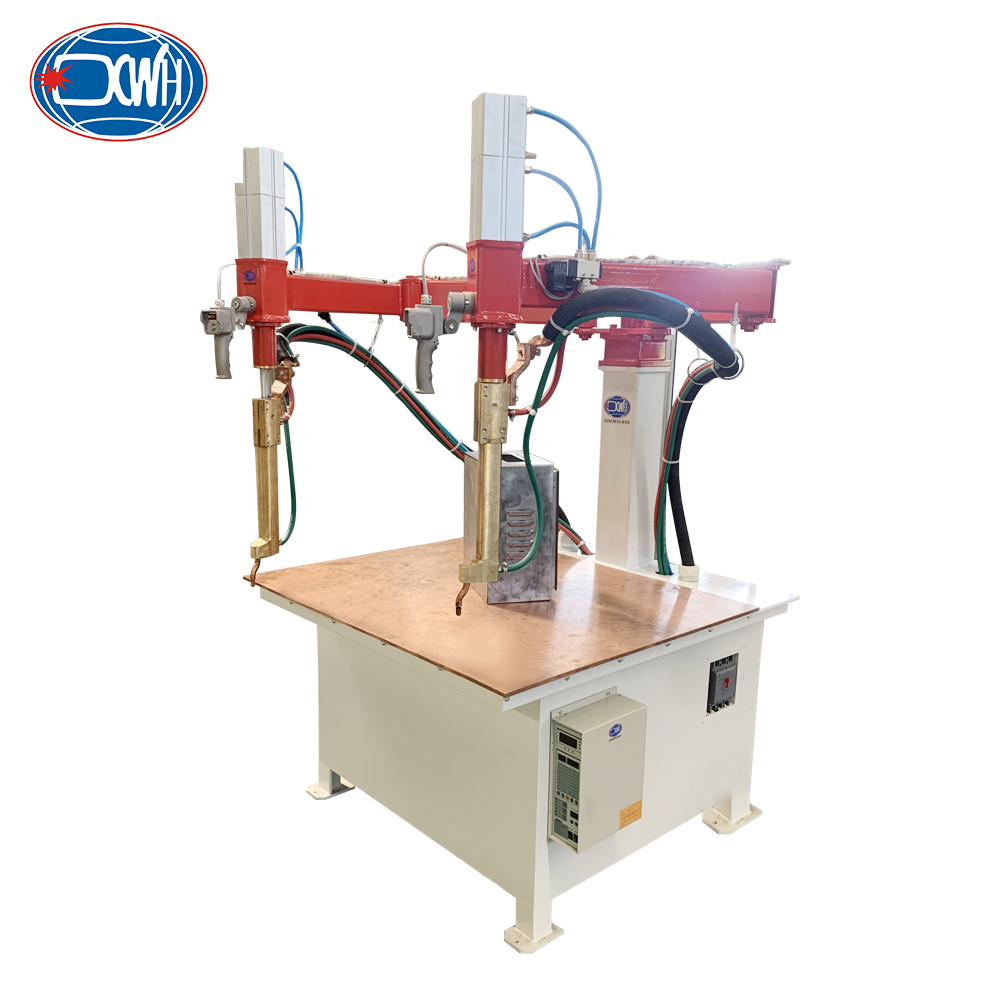

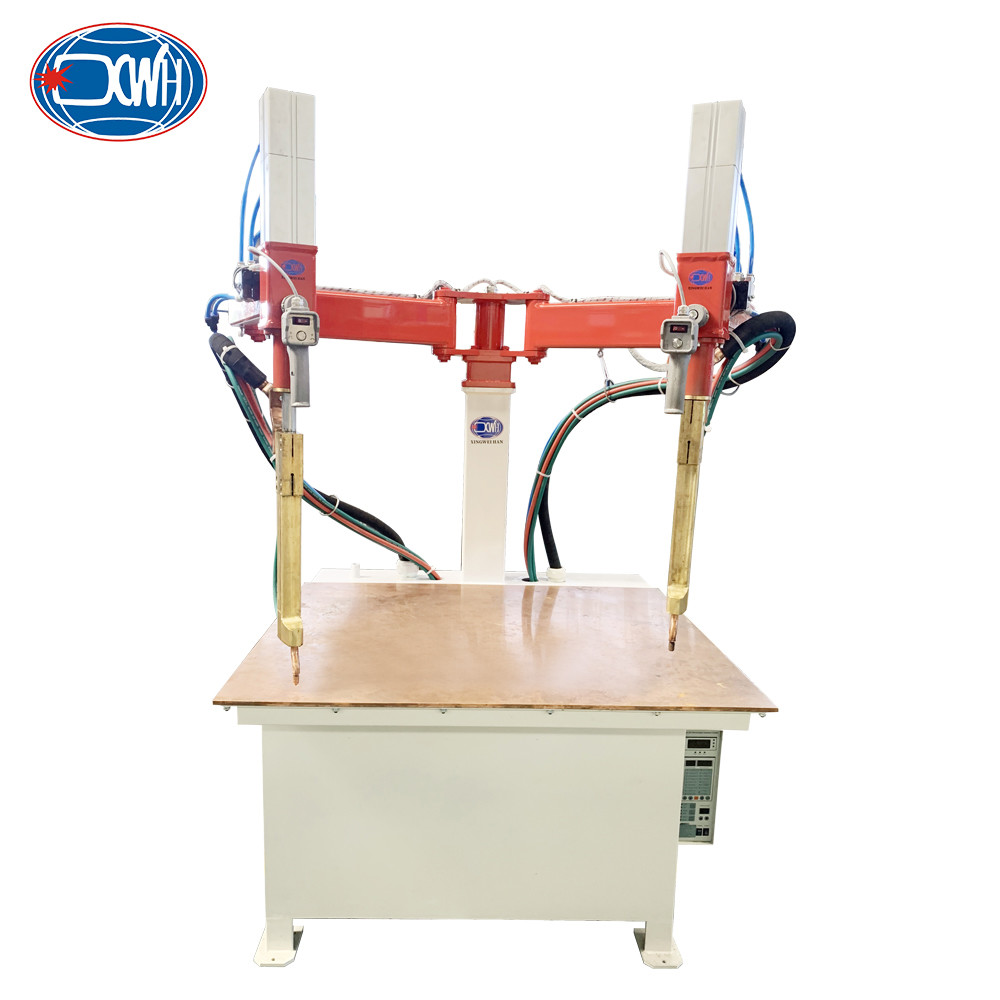

Spot Welder Platform Spot Welding Machine For Electrical Panel Box
Product Introduction:
The rock arm spot welder is cutomized with two welding guns and makes it more efficient. The platform table spot welding machine is suitable for welding sheet metal, such as door panels, metal cabinets and so on.
Advantages:
1. Welding power sources can be made into two types: AC spot welding or medium frequency inverter DC spot welding, and can be selected according to different welding materials.
2. . The lower electrode is a horizontal platform type: with a large welding range, the workpiece is flat and not easily deformed after welding, and the bottom of the welding point is smooth and traceless.
3. Firm welding points: During welding, the pressure is generated by the cylinder, ensuring a balanced and consistent welding pressure for the workpiece and ensuring welding strength.
4. Beautiful solder joints: After welding, there are no welding pits or marks on the front of the workpiece, improving the appearance quality of the product.
5. Applicable industries: chassis cabinets, elevators, electrical cabinets, automobiles, steel and wood furniture, kitchen appliances, and other industries.
Technical Parameters:
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
General Structures:
Production Line:
Application:
FAQ:
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
