Resistance Welders China Hand Industrial Copper Wire Spot Point Welding Machines
| Brand Name: | XWH |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| MOQ: | 1 |
| Price: | USD28000-USD38000 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Copper Wire Resistance Welders
,Copper Wire Spot Point Welder
,Resistance Spot Point Welding Machines

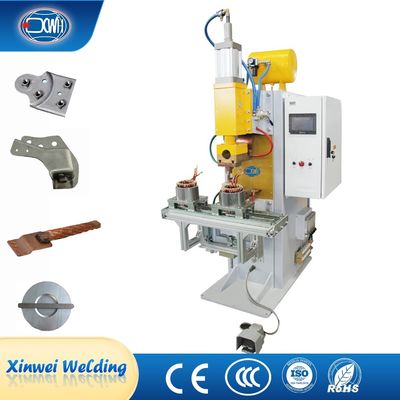

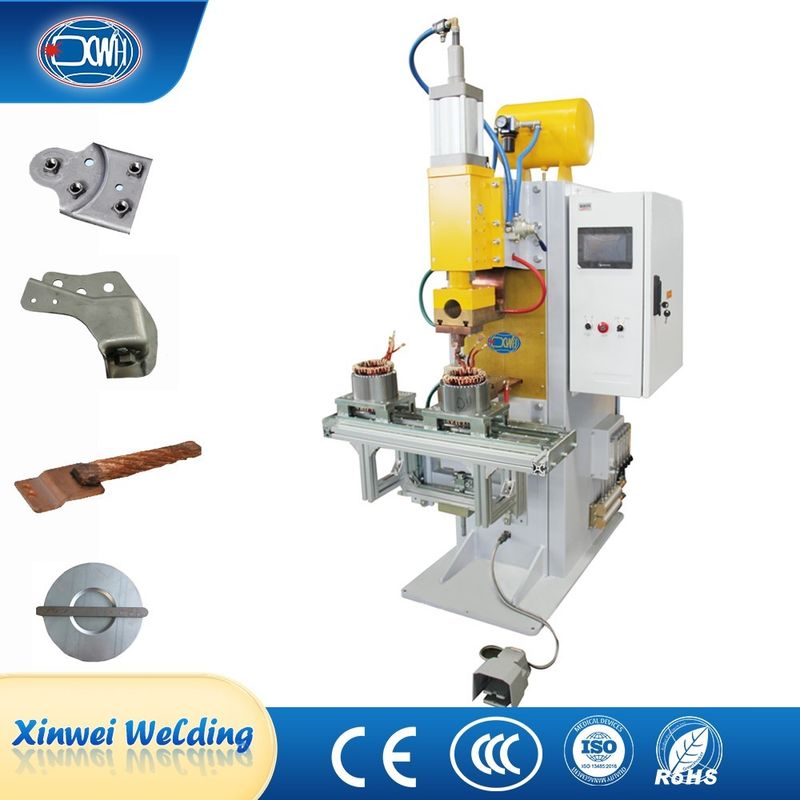

Resistance Welders China Hand Industrial Copper Wire Spot Point Welding Machines
Product Introduction
Copper wire welding machine is a projection spot welding machine specially designed for welding copper wire according to customer requirements. It is a welding equipment where the machine is stationary and the workpiece moves. The welding machine has a simple and compact structure, novel and beautiful design, and stable performance; Features such as safe, reliable, efficient, and energy-saving use.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
(1) The upper electrode is pressurized by air cylinder, and the pressure adjustment is convenient and accurate. The welding machine is equipped with a special air tank for standby;
(2) The upper electrode moves vertically up and down, and has a smooth adjusting working stroke and auxiliary stroke. The lower electrode can be adjusted in a vertical direction;
(3) The straight solenoid valve is adopted to accelerate the reaction speed, greatly improve the operating speed of the upper head, and reduce the air flow loss;
(4) . The lowering and rising speed of the pressure head can be adjusted at will, which alleviates the pressure impact on the work and reduces the noise;

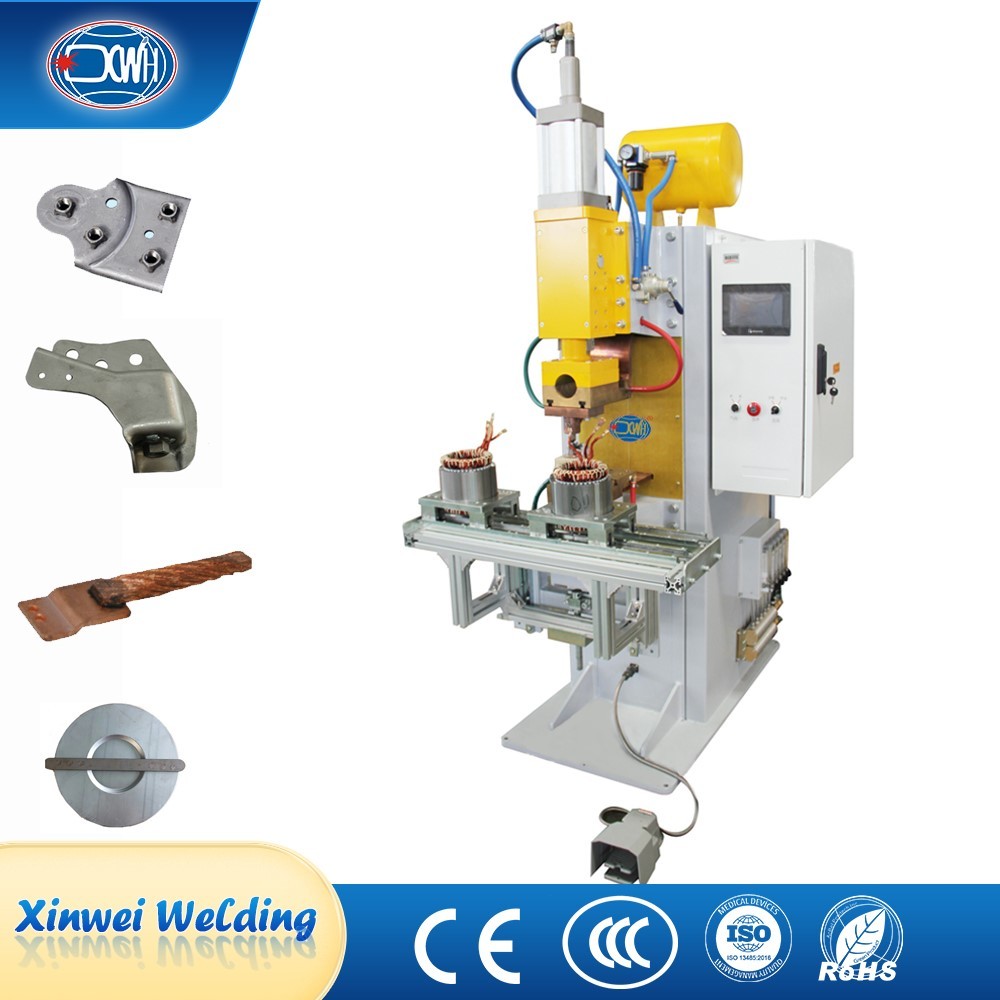

Major Structure

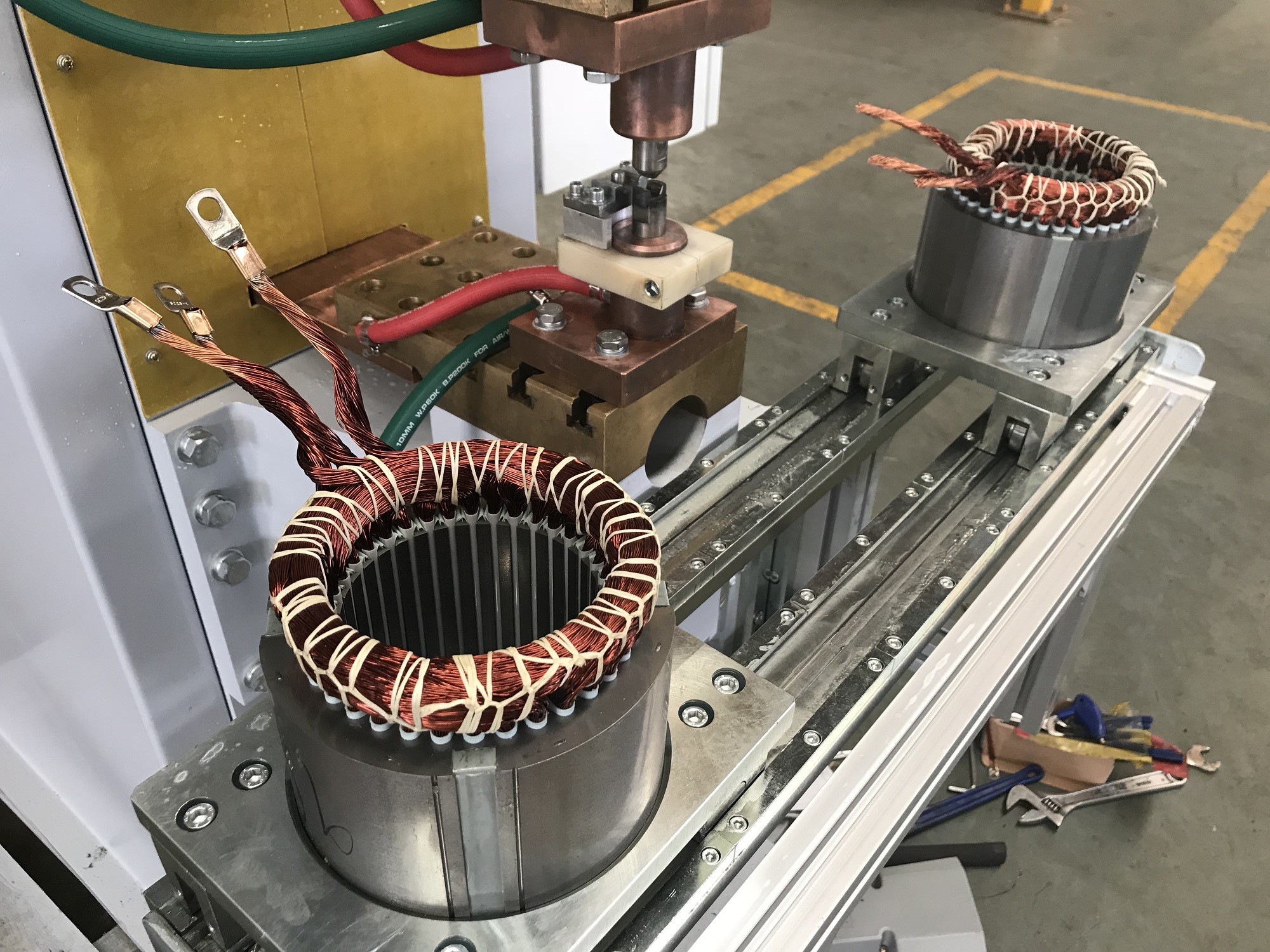

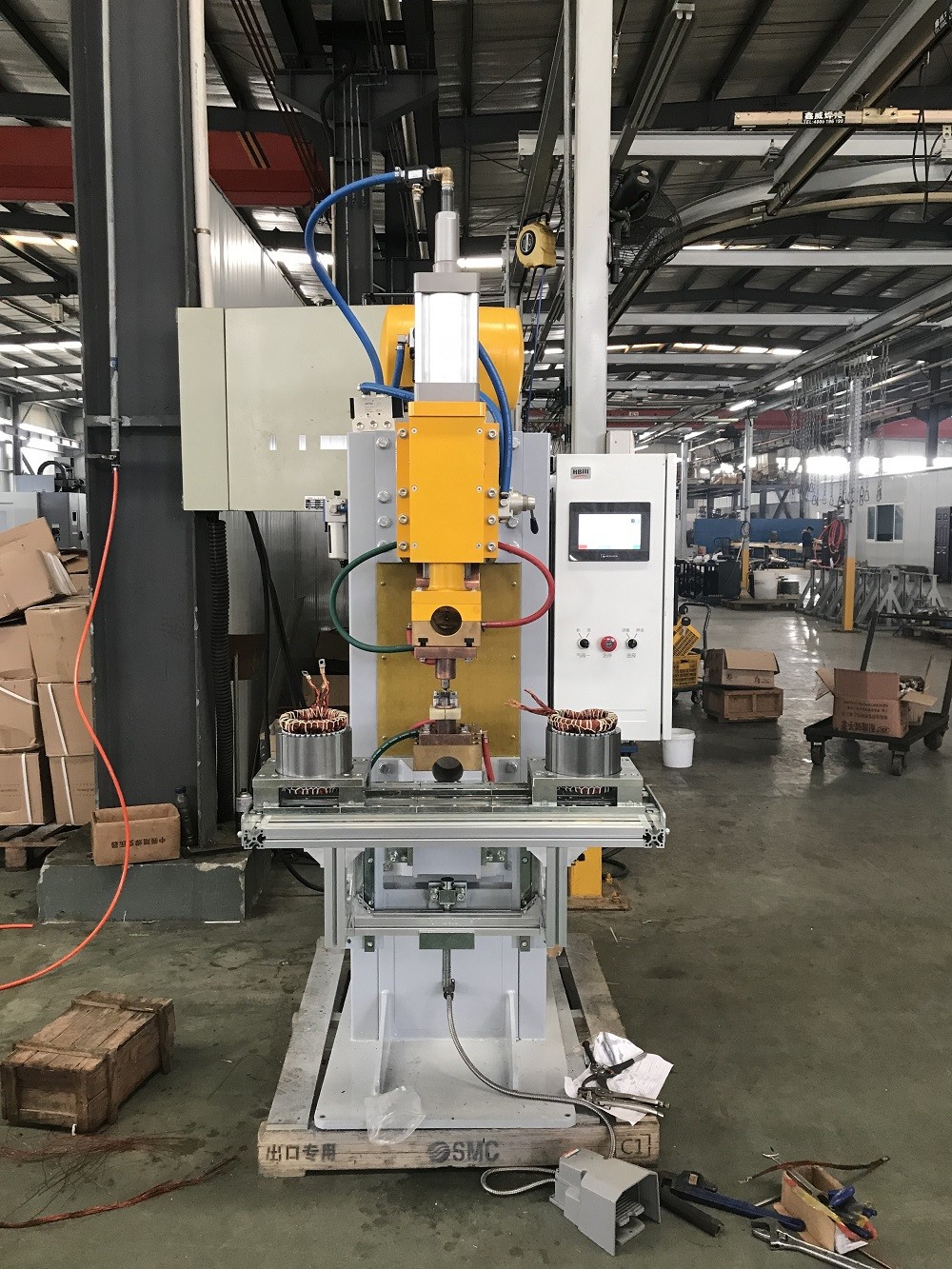

Reference Pictures
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
