Platform Spot Welder Table Type Welding Machine For Electronic Components
| Place of Origin | China |
|---|---|
| Brand Name | XWH |
| Certification | CE |
| Model Number | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity | 1 |
| Price | USD8500-USD95000 |
| Packaging Details | Wooden Case |
| Delivery Time | 15 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50 sets/month |
Product Details
| Product Name | Electronic Component Welding Machine | Machine Type | Pedal Control |
|---|---|---|---|
| Application | Electronic Production | Function | Projection Welding |
| Keyword | Manual Spot Welding Machine | Welding Material | Steel Copper Aluminum |
| Max. Welding Capacity | 6+6mm | After Warranty Service | Free SpareVideo Technical Support, Online Support And Spare Parts Parts, Field Installation, Commissioning And Training |
| After-sales Service Provided | Free Spare Parts, Field Installation, Commissioning And Training | Certification | CE |
| Highlight | Electronic Components Platform Spot Welder,Platform Spot Welding Machine,Platform Manual Spot Welding Machine |
||
Product Description

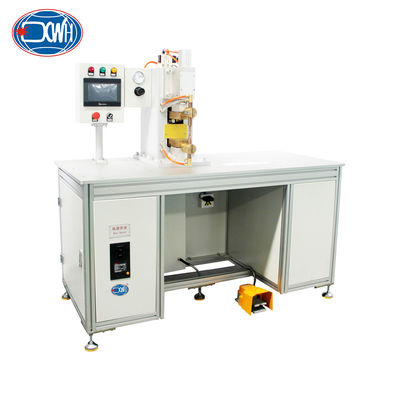

Platform Spot Welder Table Type Welding Machine For Electronic Components
Product Introduction
The electronic component desktop spot welding machine consists of a profile frame, welding transformer, water system, gas system, microcomputer resistance welding machine controller, foot switch, etc.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The secondary conductor adopts the upper insulation method, with stable and reliable insulation performance
2. The main circuit adopts a water-cooled high-power thyristor module, which has strong output, stability, and reliability, and the water distributor can be installed outside the equipment
3. All water circuit components are made of copper and stainless steel, and are equipped with a visual water flow display to display the water flow situation
4. The operation is controlled by a manual switch, which has high production efficiency and low labor intensity
5. Equipped with a touch screen for quick switching of welding processes
Major Structure

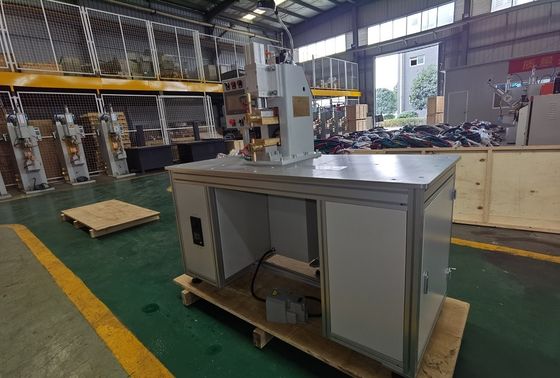

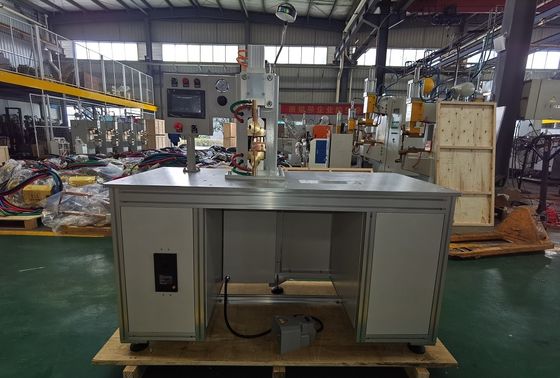

Reference Pictures
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
