Mesh Inverter Spot Welder Head
,200kva Aluminum Industrial Welding Machines
Mesh Inverter Buy Aluminum Industrial Types Of Welding Machines Spot Welder Head
Product Introduction

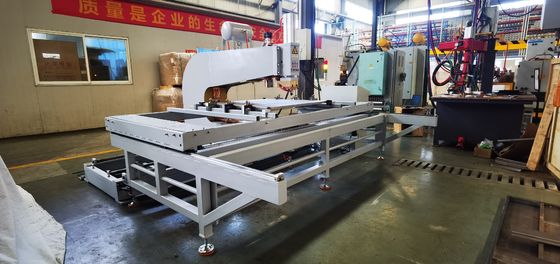

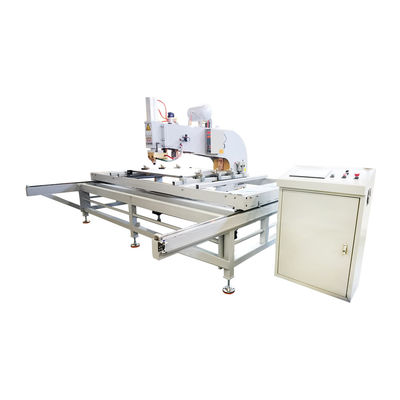

The stationary spot welding machine is customized for fire-proof door. The welding machine is composed of rack, workpiece moving platform, welding machine moving mechanism, upper and lower electrodes, welding transformer, welding machine controller, PLC controller, air circuit system, cooling water circuit system and other components.
Technical Parameters
| Models/Item | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 40 | 40 | 45 |
| Max. force (N) | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 |
| Max.welding capacity(MM) | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.
2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic: the inner water- cooled by force; stronger power and high duty ratio.
3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.
4. Can widely used in nut, studs, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.
Structure
Components of Welding Machine:
The fire door spot welding machine consists of a frame, a workpiece moving platform, a welding machine moving mechanism, upper and lower electrodes, a welding transformer, and a welding machine controller, PLC controller, air circuit system, cooling water circuit system and other components.
Pneumatic Transmission Mechanism:
When the fire door spot welding machine is used for welding, the lowering of the upper electrode and the pressing of the weldment are realized by the pneumatic transmission mechanism,the mechanism is composed of cylinder, piston, guide rod, sealing ring, sealing ring, etc.
Air Circuit System:
The air circuit system is composed of ball valve, air filter, pressure reducing valve, oil atomizer, electromagnetic air valve, cylinder, etc.
Working Principle
Install the workpiece: the rear positioning block and the right positioning block are used as the reference positioning block. To adjust, the motor zero point needs to be corrected. Other positioning blocks can be adjusted close to the workpiece. The side floating positioning block clamps the framework of the workpiece and the panel together to avoid the displacement of the welding spot. (The manual clamping screw fixes the workpiece on the side floating positioning block).
Welding: after the start (automatic) switch is pressed, the program automatically controls the action of the equipment to complete the product until the stop button is pressed.
Control System Functions
Specific functions are as follows:
1. Multiple welding programs: can store 250 welding programs for users to call.
2. The counting function: can monitor not only the number of welding points, but also the number of workpieces, which can facilitate the understanding of work efficiency.
3. Single/continuous: welding can be set as required to meet the special requirements of different workpieces.
4. Fault diagnosis and automatic protection function: during the working process, the controller will automatically shut down the output when it detects abnormal conditions, and prompt the cause of the fault.
Images
Application
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
