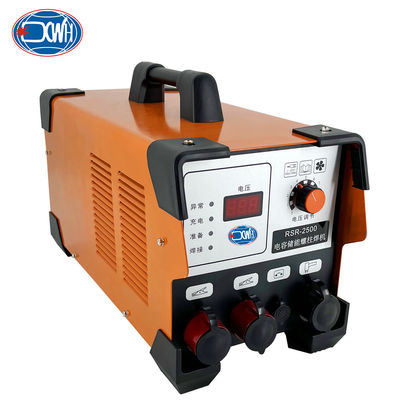

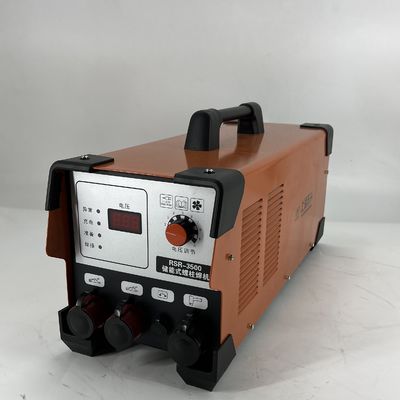

Arc Bolt Capacitor Energy Storage Shear Stud Welding Machine Harbor Freight
Product Details
| Product Name | Capacitive Energy Storage Stud Welding Machine | Application | Stud Welding |
|---|---|---|---|
| MOQ | 1 Set | Package | Wooden Case |
| Production Time | 15-20 Days | Type | Energy Storage |
| After Warranty Service | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided | Free Spare Parts, Field Installation, Commissioning And Training |
| Highlight | Capacitor Energy Storage Stud Welding Machine,Arc Bolt Stud Welding Machine,AC220V Shear Stud Welder |
||
Product Description
Arc Bolt Capacitor Discharge Harbor Freight Shear Stud Welding Machine For Sale
Product Description
Capacitive energy storage stud welding machine is a welding process that uses the principle of capacitive discharge to weld the stud on the workpiece. The discharge time is only 3-6 milliseconds, so that the stud can be welded on a 0.5-3 mm thin plate without causing deformation, discoloration or burning through.
Technical Parameters
| Item/Model | RSR-1600 | RSR-2500 | RSR-3000 |
| Input Voltage (V) | AC220 | AC220 | AC220 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 |
| Rated storage energy (J) | 1600 | 2500 | 3000 |
| Diameter of welding stud (mm) | M3~M6 | M3~M8 | M3~M10 |
| Thickness of welding plate (mm) | 0.2~1.0 | 0.2~2.0 | 0.2~3.0 |
| Capacitance (uf) | 720000 | 1080000 | 1440000 |
| Productivity (pcs/minute) | 20 | 20 | 20 |
| Charging voltage (V) | 30~200 | 30~200 | 30~200 |
| Overall dimension (mm) | 416*245*300 | 416*245*300 | 416*245*300 |
| Weight (kg) | 12 | 13 | 14 |
| Protection Degree | IP21S | IP21S | IP21S |
Features
1. Continuously display the energy storage voltage, which is not affected by the fluctuation of input voltage, and can automatically adapt to the changes of power grid, with over temperature self-protection function
2. The panel is LCD, microprocessor controlled, and has expert welding specifications
3. Small size, light weight and convenient operation
4. The welding is firm, with less splash and beautiful welding
5. Suitable for stud welding of carbon steel, stainless steel, copper and aluminum.
Panel diagram
Safety Warning
Arc radiation may damage your eyes and burn your skin!
- Use appropriate welding masks and filters, and wear protective clothing to protect your eyes and body.
- Use suitable masks or curtains to protect bystanders from injury.
Fire
- When welding, please make sure there is no flammable near the welding staton as the welding sparks may cause fire.
Samples
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
