Cnc Aluminium Electric Harbor Freight Shear Stud Welder Portable
Product Details
| Product Name | Capacitive Energy Storage Stud Welding Machine | Application | Stud Welding |
|---|---|---|---|
| MOQ | 1 Set | Package | Wooden Case |
| Production Time | 15-20 Days | Type | Energy Storage |
| After Warranty Service | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided | Free Spare Parts, Field Installation, Commissioning And Training |
| Highlight | Harbor Freight Shear Stud Welder,Cnc Aluminium Shear Stud Welder,Arc Electric Stud Welding Machine |
||
Product Description

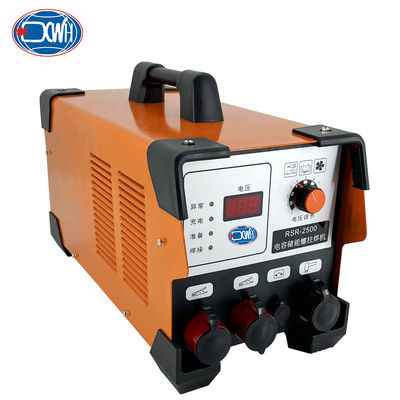

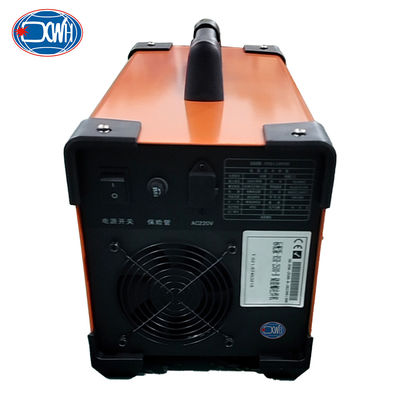

Arc Portable Cnc Aluminium Electric Harbor Freight Shear Stud Welder For Sale
Product Description
Capacitive energy storage stud welding machine is a welding process that uses the principle of capacitive discharge to weld the stud on the workpiece. The discharge time is only 3-6 milliseconds, so that the stud can be welded on a 0.5-3 mm thin plate without causing deformation, discoloration or burning through.
Technical Parameters
| Item/Model | RSR-1600 | RSR-2500 | RSR-3000 |
| Input Voltage (V) | AC220 | AC220 | AC220 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 |
| Rated storage energy (J) | 1600 | 2500 | 3000 |
| Diameter of welding stud (mm) | M3~M6 | M3~M8 | M3~M10 |
| Thickness of welding plate (mm) | 0.2~1.0 | 0.2~2.0 | 0.2~3.0 |
| Capacitance (uf) | 720000 | 1080000 | 1440000 |
| Productivity (pcs/minute) | 20 | 20 | 20 |
| Charging voltage (V) | 30~200 | 30~200 | 30~200 |
| Overall dimension (mm) | 416*245*300 | 416*245*300 | 416*245*300 |
| Weight (kg) | 12 | 13 | 14 |
| Protection Degree | IP21S | IP21S | IP21S |
Features
1. Continuously display the energy storage voltage, which is not affected by the fluctuation of input voltage, and can automatically adapt to the changes of power grid, with over temperature self-protection function
2. The panel is LCD, microprocessor controlled, and has expert welding specifications
3. Small size, light weight and convenient operation
4. The welding is firm, with less splash and beautiful welding
5. Suitable for stud welding of carbon steel, stainless steel, copper and aluminum.
Panel diagram
Safety Warning
Noise - excessive noise is harmful to people's hearing!
·Protect your ears, use ear shields or wear other hearing protection.
·Warn bystanders that noise may cause potential damage to their hearing.
Failure - seek professional help when encountering difficulties!
·If you encounter difficulties in installation and operation, please follow the relevant contents of this manual for troubleshooting.
·If you still cannot fully understand after reading, or cannot solve the problem according to the instructions of this manual, you should contact us immediately.
Samples
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
