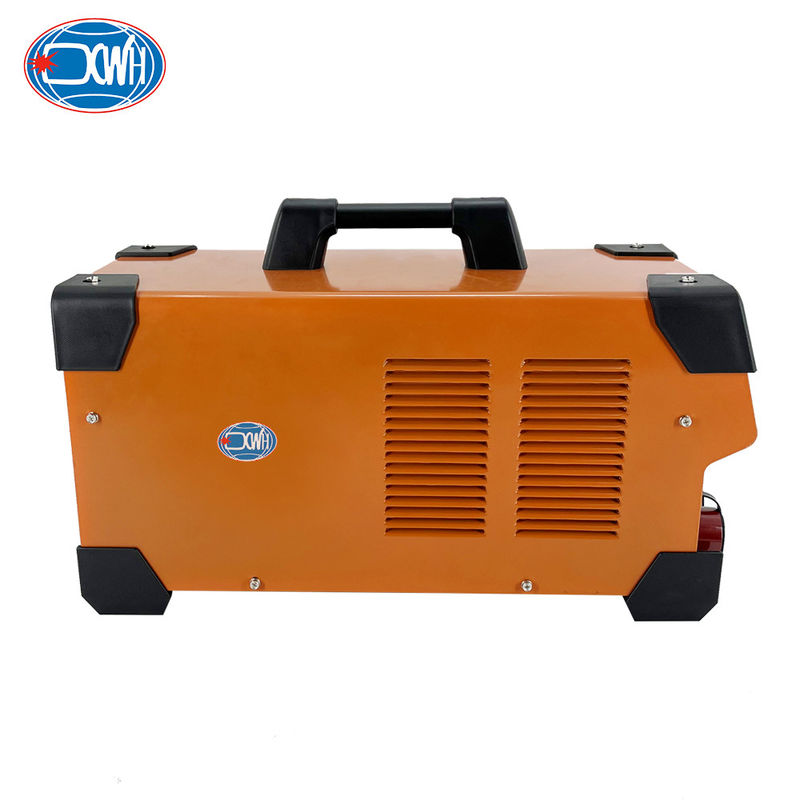

Shear Stud Welding Machine For Stainless Steel Threaded Bolt Pro Weld
| Brand Name: | XWH |
| Model Number: | RSR-1600, RSR-2500, RSR-3500 |
| MOQ: | 1 |
| Price: | USD600-USD800 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Threaded Bolt Stud Welding Machine
,SS Threaded Bolt Stud Welder
,60HZ Shear Stud Welding Machine
Best Headed Stainless Steel Threaded Bolt Pro Weld Shear Stud Welding Machine
Product Description
Capacitive energy storage stud welding machine is a welding process that uses the principle of capacitive discharge to weld the stud on the workpiece. The discharge time is only 3-6 milliseconds, so that the stud can be welded on a 0.5-3 mm thin plate without causing deformation, discoloration or burning through.
Technical Parameters
| Item/Model | RSR-1600 | RSR-2500 | RSR-3000 |
| Input Voltage (V) | AC220 | AC220 | AC220 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 |
| Rated storage energy (J) | 1600 | 2500 | 3000 |
| Diameter of welding stud (mm) | M3~M6 | M3~M8 | M3~M10 |
| Thickness of welding plate (mm) | 0.2~1.0 | 0.2~2.0 | 0.2~3.0 |
| Capacitance (uf) | 720000 | 1080000 | 1440000 |
| Productivity (pcs/minute) | 20 | 20 | 20 |
| Charging voltage (V) | 30~200 | 30~200 | 30~200 |
| Overall dimension (mm) | 416*245*300 | 416*245*300 | 416*245*300 |
| Weight (kg) | 12 | 13 | 14 |
| Protection Degree | IP21S | IP21S | IP21S |
Features
1. This machine is mainly used for stud connection of various structural parts and decorative parts of low carbon steel, stainless steel and aluminum alloy.Such as various low-carbon steel or stainless steel cabinets, instrument housings, car bodies, kitchenware, hardware products and welding of fixed studs on aluminum alloy ceiling.

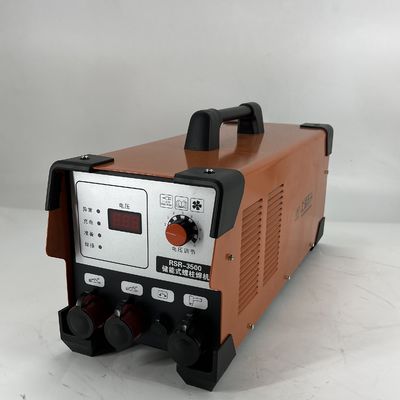

Panel diagram
Safety Warning
Smoke - may be harmful to health!
-Keep the head out of the smoke.
-During arc welding, use ventilation or air extraction device to avoid inhaling welding gas.
Fire
-Welding sparks may cause fire, please make sure there is no flammable near the welding station.
Samples
Frequently Asked Questions
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
