Pro Pulse Resistance Hand Wire Copper Single Side Spot Welding Machine Small
| Brand Name: | XWH |
| Model Number: | DND3 |
| MOQ: | 1 |
| Price: | USD4800-USD6000 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Manual Single Side Spot Welding Machine
Rated Capacity:
160KVA, 200KVA
Application:
Metal Mesh Welding
Weight:
220KG
Voltage:
220V/380V
Max. Welding Thickness:
1.5mm+5mm
Machine Type:
Resistance Welding Machine
Function:
Spot Welding
Supply Ability:
500 sets/month
Highlight:
Hand Wire Copper Spot Welding Machine
,Pro Pulse Resistance Spot Welding Machine
,ISO Small Single Side Spot Welder
Product Description

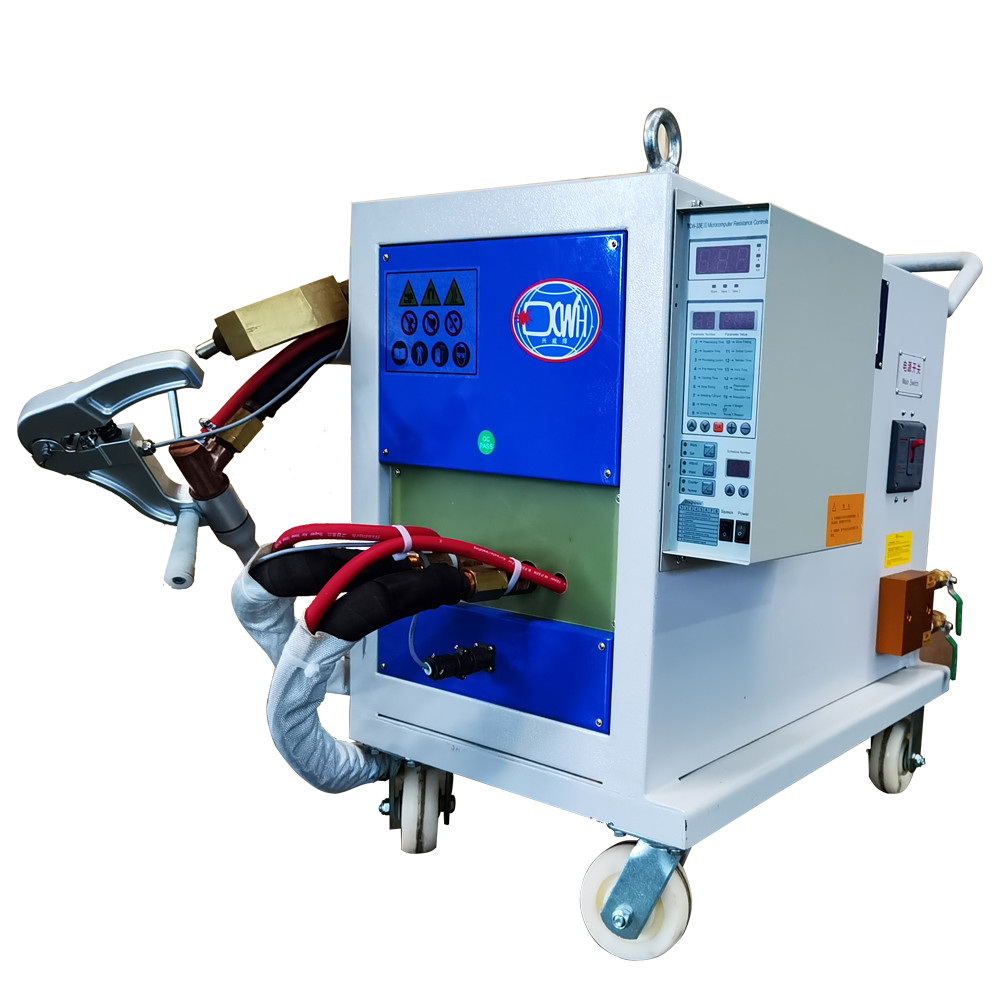

Pro Pulse Resistance Hand Wire Small Copper Single Side Spot Welding Machine
Product Description
Based on fixed spot welding machine, the single spot welding machine is a new mobile spot welding machine designed according to the needs of market production development. Besides maintaining the spot welding function of fixed spot welding machine, it highlights its advantages of convenient operation and accurate control. The machine has a very wide range of applications.
| Models /Item | Unit | DND3-160 | DND3-200 |
| Rated power | KVA | 160 | 200 |
| Rated input current | A | 400 | 475 |
| Rated duty cycle | % | 50 | |
| Rated input voltage | V | 380 | |
| Power supply frequency | Hz | 50/60 | |
| Secondary unload voltage | V | 21.7-19 | 24.5-21.7 |
| Max welding ability | MM | 1.0+framework | 1.5+framework |
| Max output current | A | 14800 | 16200 |
| Insulating grade | | F | |
| Cooling water consumption 2.5bar | L/min | 14 | 16 |
| Pressure of cool water | Mpa | 0.15-0.3Mpa | |
| Pressure of compressed air | Mpa | 0.5-0.6Mpa | |
| Insulating resistance | | 500VDC=500M | |
| Dielectric intensity | | 2500V,60S(primary-secondary) | |
| weight | Kg | 220 | 240 |
♦The single side spot weling machine can be customized according to your requirements.
Application:
The single sided spot welding machine is mainly used for welding the thin plate between the bus surface skin and the structure, and can also weld metal boxes, doors and Windows, etc. The welding machine can be moved freely, and the welding gun can be moved to meet the requirement of all-directional welding.
