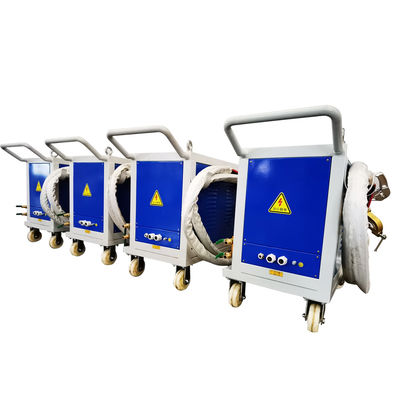

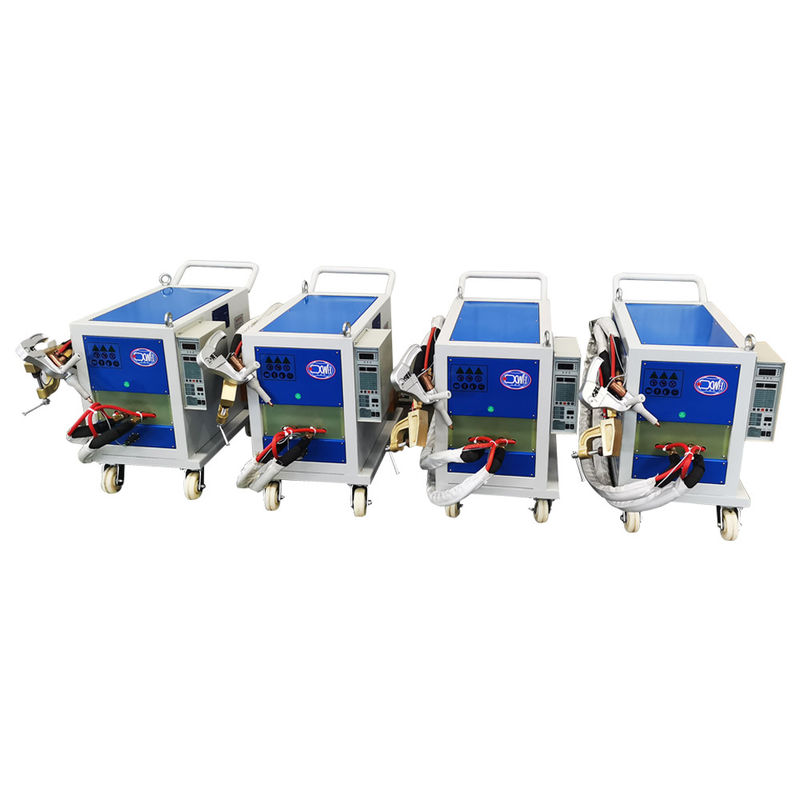

Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive
| Brand Name: | XWH |
| Model Number: | DND3 |
| MOQ: | 1 |
| Price: | USD4800-USD6000 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Portable Single Side Spot Welding Machine
Rated Capacity:
160KVA, 200KVA
Function:
Automobile Welding
Keyword:
Handheld Welding Machine
Voltage:
220V/380V
Max. Welding Thickness:
1.5mm+5mm
Machine Type:
Resistance Welding Machine
After Warranty Service:
Video Technical Support, Online Support And Spare Parts
Delivery Time:
15 working days
Supply Ability:
500 sets/month
Highlight:
Single Sided Spot Welding Machine
,Resistance Single Sided Spot Welding Machine
,Automotive Single Side Spot Welding Machine
Product Description
Mfdc Resistance Single Sided Small Portable Spot Welding Machine In Automotive
Product Description
The single side spot welding machine consists of the machinery frame structure, welding transformer, control system, water-cooling cable and welding torch,, especially suitable for automobile and cabinet manufacturing industry, as well as sheet metal and components.
| Models /Item | Unit | DND3-160 | DND3-200 |
| Rated power | KVA | 160 | 200 |
| Rated input current | A | 400 | 475 |
| Rated duty cycle | % | 50 | |
| Rated input voltage | V | 380 | |
| Power supply frequency | Hz | 50/60 | |
| Secondary unload voltage | V | 21.7-19 | 24.5-21.7 |
| Max welding ability | MM | 1.0+framework | 1.5+framework |
| Max output current | A | 14800 | 16200 |
| Insulating grade | | F | |
| Cooling water consumption 2.5bar | L/min | 14 | 16 |
| Pressure of cool water | Mpa | 0.15-0.3Mpa | |
| Pressure of compressed air | Mpa | 0.5-0.6Mpa | |
| Insulating resistance | | 500VDC=500M | |
| Dielectric intensity | | 2500V,60S(primary-secondary) | |
| weight | Kg | 220 | 240 |
♦The single side spot weling machine can be customized according to your requirements.
Features:
1. The single spot welding machine is widely used to weld the low carbon steel, stainless steel sheet and low carbon steel structure.
2. As the singe side spot welding machine is flexible and humanized, so it can reduce labor intensity.
3. The single side spot welding machines is movable as it can be installed on the cart. Besides it can alsobe hanged for moving freely. When welding, the workpiece can stay still while the welding gun moves .
