Inverter Aluminum Sheet Resistance Welding Machine For Automotive Spot Soldering
| Brand Name: | XWH |
| Model Number: | DND3 |
| MOQ: | 1 |
| Price: | USD4800-USD6000 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Portable Single Side Spot Welding Machine
Rated Capacity:
160KVA, 200KVA
Function:
Automobile Welding
Keyword:
Handheld Welding Machine
Voltage:
220V/380V
Max. Welding Thickness:
1.5mm+5mm
Machine Type:
Resistance Welding Machine
After Warranty Service:
Video Technical Support, Online Support And Spare Parts
Supply Ability:
500 sets/month
Highlight:
Automotive Spot Soldering Resistance Welding Machine
,Inverter Aluminum Sheet Resistance Welding Machine
,160KVA Single Side Spot Welding Machine
Product Description

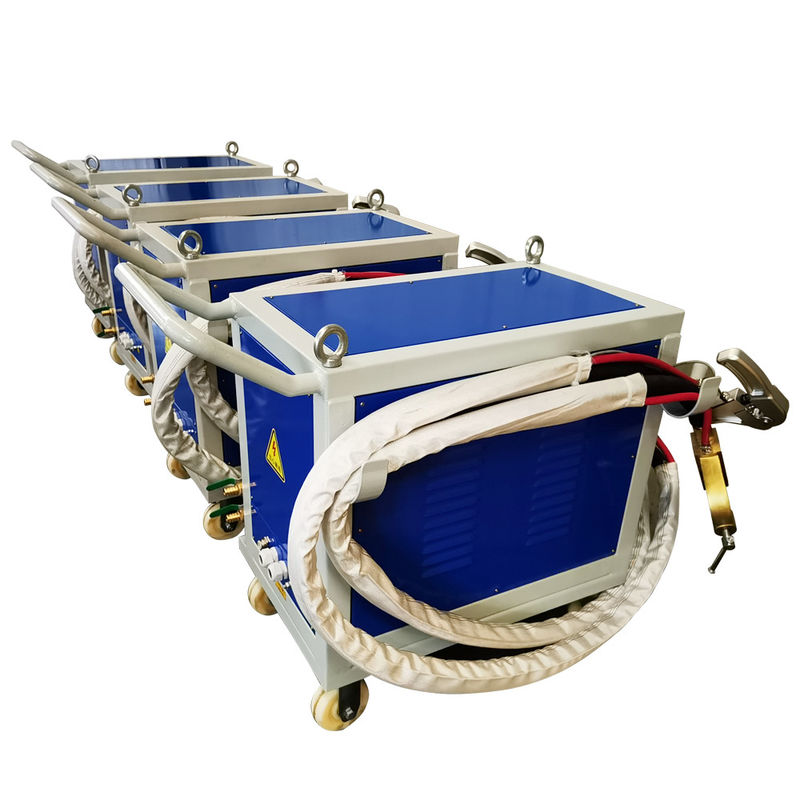

Inverter Aluminum Sheet Automotive Spot Soldering Resistance Welding Machine
Product Description
The single spot welding machine is a new mobile spot welding machine designed according to the needs of market. It not only maintains the spot welding function of fixed spot welding machine,it but also highlights its advantages of convenient operation and accurate control.
| Models /Item | Unit | DND3-160 | DND3-200 |
| Rated power | KVA | 160 | 200 |
| Rated input current | A | 400 | 475 |
| Rated duty cycle | % | 50 | |
| Rated input voltage | V | 380 | |
| Power supply frequency | Hz | 50/60 | |
| Secondary unload voltage | V | 21.7-19 | 24.5-21.7 |
| Max welding ability | MM | 1.0+framework | 1.5+framework |
| Max output current | A | 14800 | 16200 |
| Insulating grade | | F | |
| Cooling water consumption 2.5bar | L/min | 14 | 16 |
| Pressure of cool water | Mpa | 0.15-0.3Mpa | |
| Pressure of compressed air | Mpa | 0.5-0.6Mpa | |
| Insulating resistance | | 500VDC=500M | |
| Dielectric intensity | | 2500V,60S(primary-secondary) | |
| weight | Kg | 220 | 240 |
♦ The single side spot weling machine can be customized according to your requirements.
Features:
1. Conrolled by microcomputer, the welding time and current can be controlled precisely.
2. The welding gun is movable and suitable for different strctures of welding workpieces.
3. The single side spot welding machine mainly used in kinds of plates, metal sheets and other metal materials composed of box, cabinet, platform, frame, shell, and other workpiece welding processing
Company Information
Chengdu Xinwei Weldinghan Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Certifications
Exhibition Pictures
Service
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Transportation Display
FAQ
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5.How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
