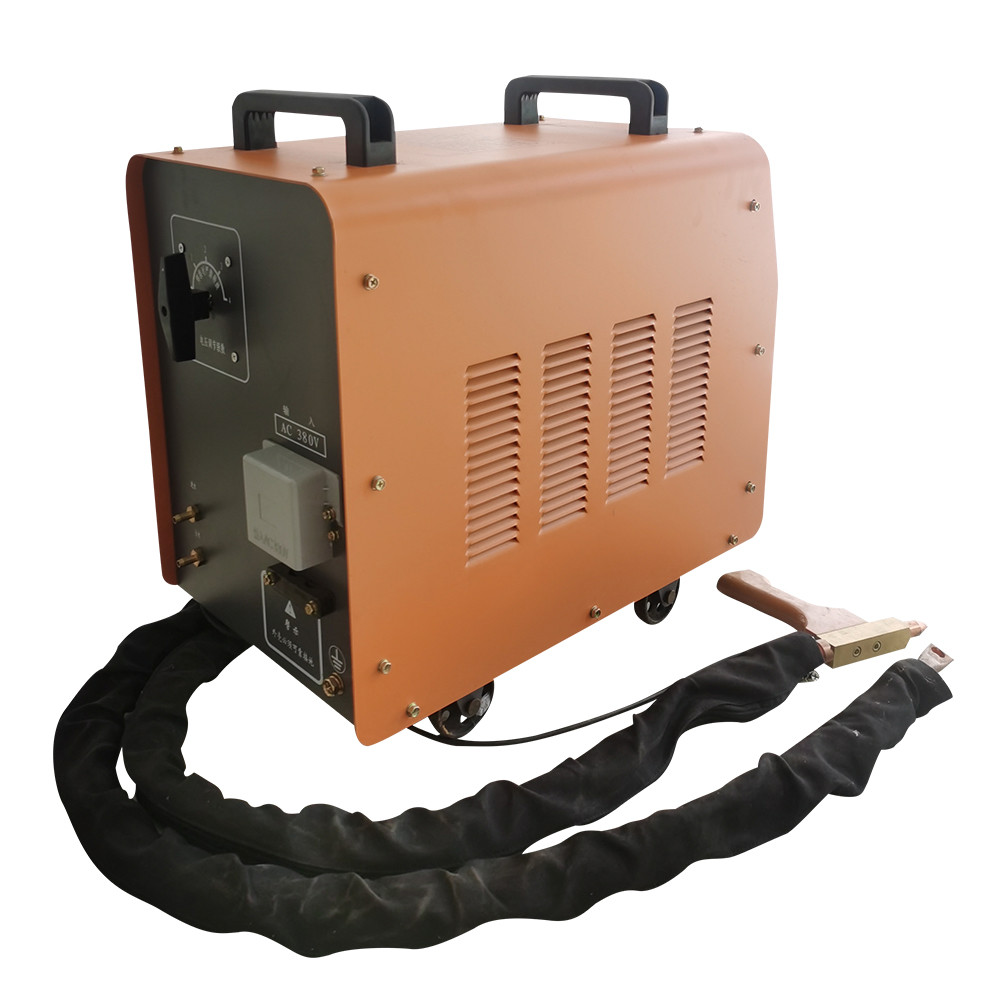

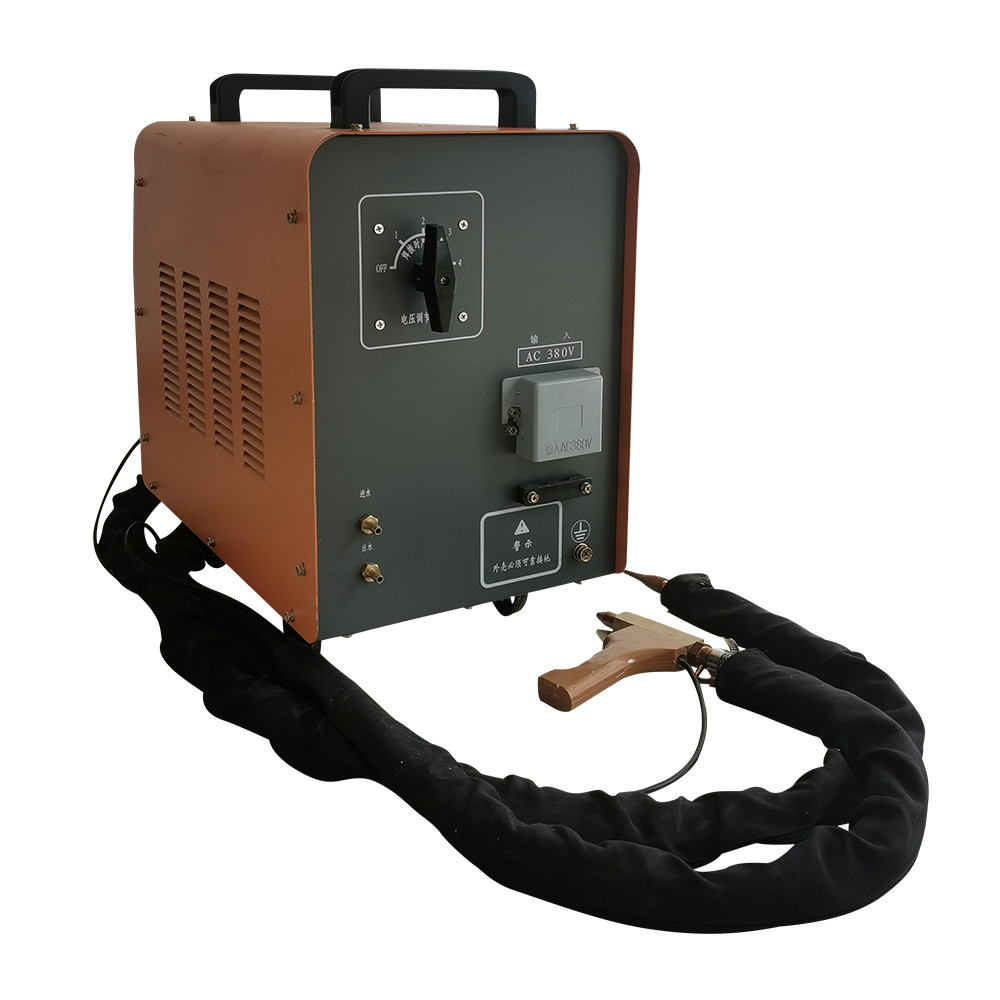

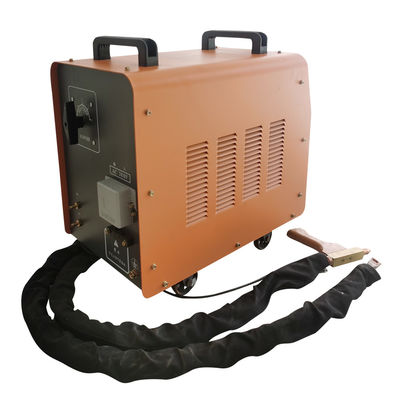

Advanced Pulse Resistance Portable Spot Welding Machine Industrial
| Brand Name: | XWH |
| Model Number: | DNY |
| MOQ: | 1 Set |
| Price: | $600.00 - $650.00 |
| Packaging Details: | wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Portable Mobile Stick Spot Welder Welding Machine
Machine Type:
Resistance Welding Machine
Feature:
Stability
After Warranty Service::
Video Technical Support, Online Support, Spare Parts
Weight (KG):
80-120KG
Function:
Material Spot Weld
MOQ:
1 Set
Application:
Welding Pieces
Supply Ability:
50 Set/Sets per Week
Highlight:
Resistance Portable Spot Welding Machine
,Industrial Portable Spot Welding Machine
,Advanced Pulse Resistance Spot Welder
Product Description
Advanced Pulse Industrial Resistance Portable Spot Welder Welding Machine
The mobile portable spot welding machine is a resistance welding machine. The principle is to convert electric energy into heat energy through a transformer, melting iron plate. The welding gun is connected with a welding wire, and the ground wire is connected to the copper plate, and the workpiece is in contact with the copper plate and the welding torch is put on the workpiece with a little force to complete the welding.
Product Description
| Model Parameter | DNY-80 | DNY-50 | DNY-35 | DNY-25 | DNY-16 |
| Rated power | 80KVA | 50KVA | 35KVA | 25KVA | 16KVA |
| Rated input power | 380V | 380V | 380V | 380V | 380V |
| Rated primary current | 211A | 132A | 92A | 66A | 42.1A |
| Rated duty cycle | 10% | 10% | 10% | 10% | 10% |
| Secondary unload voltagea djustment | 9.5～19V | 7.6～15.2V | 7.6～12.7V | 7.6～12.7V | 6.2～11V |
| Adjustment level | 2 | 2 | 1 | 4 | 4 |
| Welding time adjustment | 0～250CYC | 0～250CYC | 0～250CYC | 0～9.99s | 0～9.99s |
| Secondary cable length | 2m | 2m | 2m | 2m | 2m |
| Welding thickness | (0.2~1.5)+4mm | (0.2~1.5)+3.5mm | (0.2~1.2)+3mm | (0.2~1)+3mm | (0.1~0.6)+2mm |
| Cooling method | Main transformer: water cooling Electrode: water cooling | ||||
Features:
1. The machine is light and small, so it's easy to move and operate.
2. The current input is stable and wear well.
3. The welding time is adjustable and the input voltage is visible.
4. It's widely used in welding carbon steel, stainless steel, galvanized plate, cabinet and could plate.
Company Information
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
