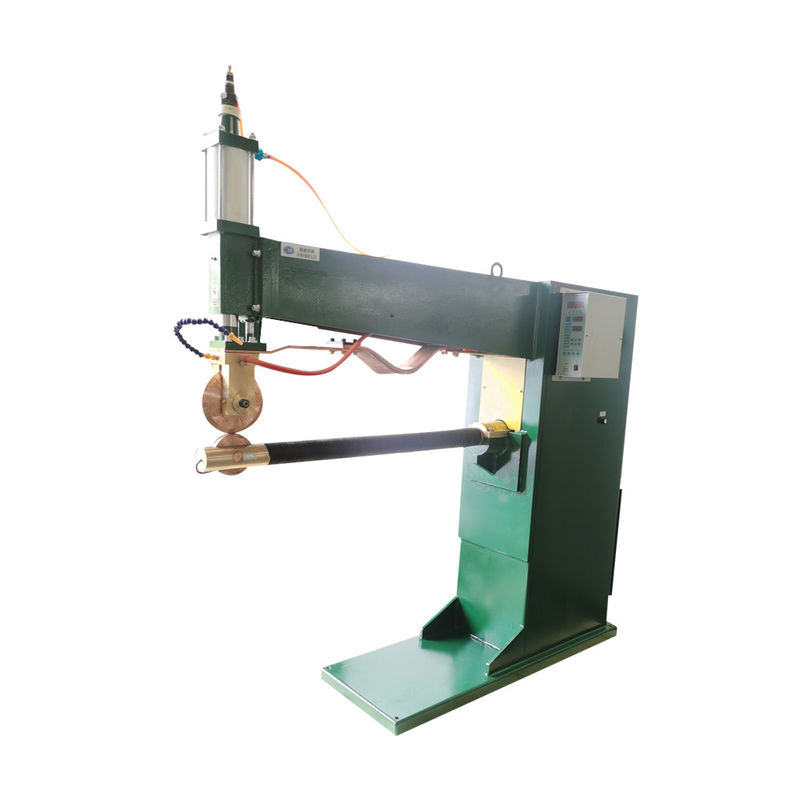

Tube Linear Resistance Welding Equipment Long Roll Spot Seam Welding Machine

Place of Origin	China
Brand Name	XWH
Certification	CE
Model Number	FN
Minimum Order Quantity	1
Price	USD6000-USD10000
Packaging Details	Wooden Case
Delivery Time	15 working days
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	500 sets/month

Product Details

Product Name	Resistance Seam Welder	Welding Material	Metal Sheet Welding
MOQ	1 Set	Warranty	1 Year
Application	Solar Water Heater Tank	Welding Mode	Roll Welding
Control System	Touch Screen	Working Mode	Auto Longitudinal Seam Welder
Highlight	Tube Linear Resistance Welding Equipment , CE Resistance Welding Equipment , Long Roll Spot Seam Welding Machine

Leave a Message

Product Description

Tube Linear Resistance Welding Equipment Long Roll Spot Seam Welding Machine

Seam welding machine is a resistance welding machine in which the workpiece is placed between the roller electrode or between the roller electrode and the strip electrode, continuously or intermittently rolling and intermittent or continuous application of current, forming a linear weld.

Product Description

Model Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700

Seam welder can be divided into continuous seam welder and stepping seam welder according to the rotation mode of the roller electrode; According to the relationship between welding seam and electrode arm, it can be divided into transverse seam welder, longitudinal seam welder and universal seam welder.

Transverse seam welder: the formed welding joint is perpendicular to the electrode arm and the rotating axis of the roller electrode of this kind of welder is parallel to the electrode arm. It is mainly used for welding long welds and circular welds of horizontal workpiece.

Longitudinal seam welder: the formed welding joint is parallel to the electrode arm. The rotating axis of the roller electrode of this kind of welder is perpendicular to the electrode arm and is mainly used for welding short welds of horizontal workpiece and vertical straight joints of cylindrical vessels.

Universal seam welder: it's a vertical and horizontal welder. Seam welding machine generally by the body, pressure mechanism, transmissionmechanism, welding transformer, power regulation mechanism, welding loop, in addition to the electrode and transmission mechanism, other parts and spot welding machine basically similar.

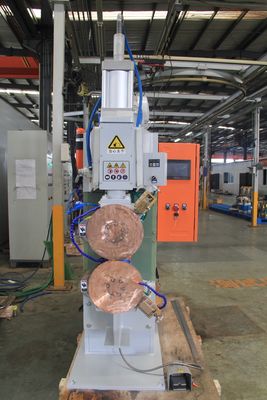

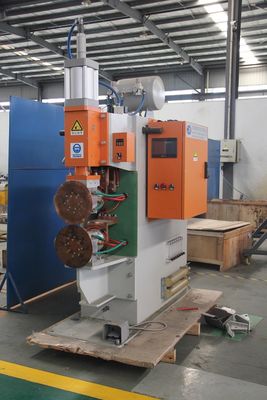

Tube Linear Resistance Welding Equipment Long Roll Spot Seam Welding Machine 0

Company Information

Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
