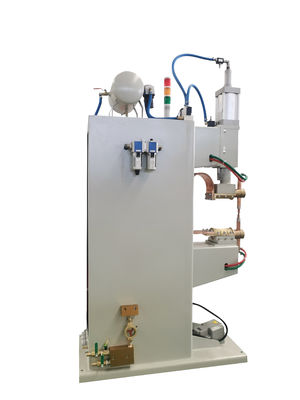

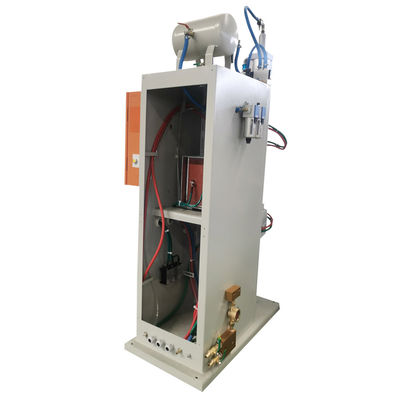

Nut Wire Mesh Ss Stationary Spot Welding Machine Ac Water Cooled For Sheet Metal
| Brand Name: | XWH |
| Model Number: | DTN |
| MOQ: | 1 |
| Price: | USD8000-USD9000 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Ss Stationary Spot Welding Machine
,Water Cooled Stationary Spot Welding Machine
,100KVA Nut Spot Welding Machine
Stationary Spot Welding Machine is working on the 380V/50Hz three-phase AC power supply.By the three-phase rectifier, inverter technology
and the feedback control system, to control the welding heat, pre-press time, the maintenance time and cease time, achieving the welding requirements.
Feature:
1. Designed with thickened steel plate and optimized mechanical structure, ensuring stable welding quality and high efficiency.
2. The operation interface adopts digital tube or liquid crystal display, which is clear, clear and intuitive.
3. Controlled by microcomputer, each welding time and welding current can be easy to operate and accurately adjusted.
Parameter List
| Items Models |
DN(B)-100 |
DN(B)-160 |
DN(B)-200 |
DN(B)-250 |
| Rated power (KVA) |
100 |
160 |
200 |
250 |
| Power input(V) |
3φAC 380V |
3φAC 380V |
3φAC 380V |
3φAC 380V |
| Max. short circuit current (KA) |
30 |
35 |
40 |
45 |
| Duty cycle (%) |
50 |
50 |
50 |
50 |
| Max. force(N) |
6000 |
6000 |
10000 |
15000 |
| Electrode length (mm) |
450 |
450 |
450 |
500 |
| Working stroke (mm) |
80 |
80 |
80 |
80 |
| Cooling consumption (L/min) |
20 |
20 |
20 |
20 |
| Max. welding capacity (mm) |
3.0+3.0 |
4.0+4.0 |
5.0+5.0 |
6.0+6.0 |
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Our engineers will train customer how to operate, repair and maintaining machines and so on...
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5.How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
