ISO Table Spot Welding Machine , Sheet Metal Spot Welding Machine 200mm Stroke
Product Details
| Product Name | Crank Arm Elevator Plate Metal Sheet Spot Welding Machine | Frequency | 50HZ/60HZ |
|---|---|---|---|
| Power | 130KVA | Voltage | 380V/220V |
| Rated Duty Cycle | 50% | Usage | Table Spot Welding |
| Platform Distance | 2000mm | Rated Capacity | 25/35/50 KVA |
| Highlight | 200mm table spot welding machine,ISO table spot welding machine,200mm sheet metal spot welding machine |
||
Product Description

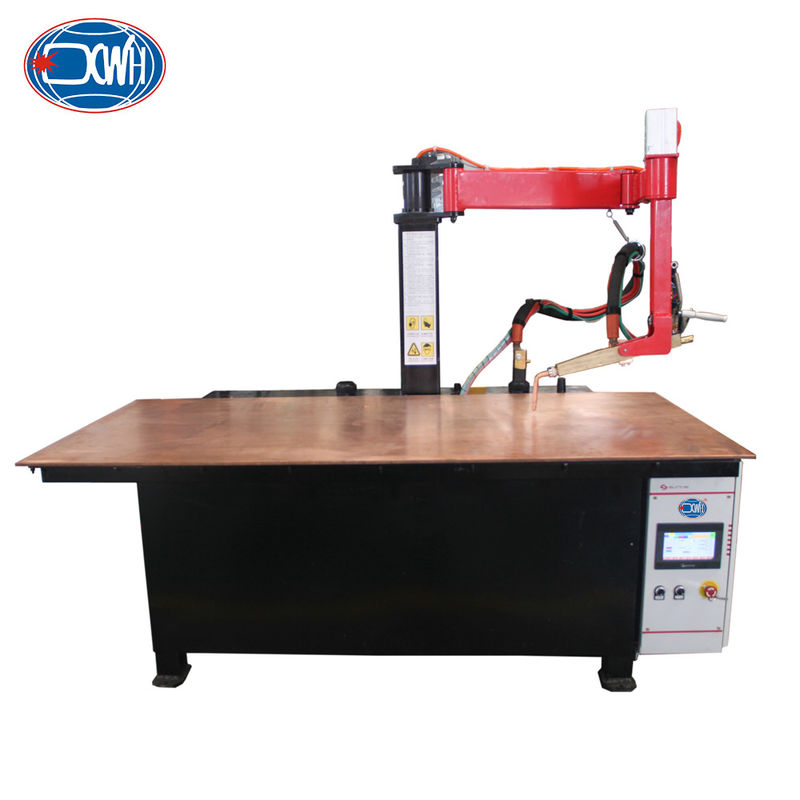

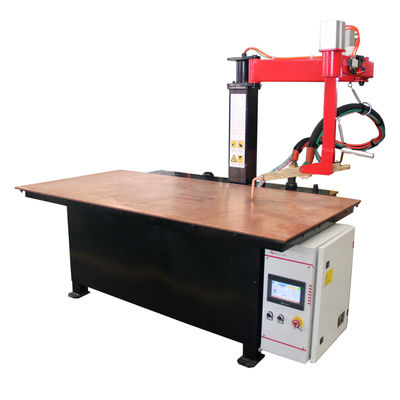

Crank Arm Elevator Plate Metal Sheet Spot Welding Machine
Product Description
Main Features
1. The movement patterns of crank arm mobile flat plate spot welder can be chosen as manual or CNC automatic mobile type.
2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated products.
3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined good quality of slide rail, ball screw and automatic testing system in order to complete the electrode automatic movement.
4. Automatic device adopts the axis X, Y of mobile working table, utilizing the PLC to store setting mobile program. Simple and convenient setting.
5. Adopt direct single-point welding method. The lower electrode is designed as complete flat, which is suitable for welding of flat plate with multiple welding spots on the surface and be able to guarantee both the smoothness of surface and the consistency of welding spots.
Technical parameters
DNT-100K Rocker Arm galvanized sheet Table Spot Welding Machine
Rated Capacity: 50KVA~200KVA,
Input Voltage:220V/380V~480VAC(Optional), 50Hz/60Hz
Air Source Pressure: =0.5Mpa;
Electrode Force: =2.2KN
Welding Table Size:800mm(W) ×1000mm(L);
Welding Table Height: 750~950mm (200mm Stroke);
Welding Gun Type: Horizontal Gun or Vertical Gun
(Optional);
Welding Gun Length: 395mm;
Machine Size : L:1580mm×W:1000mm×H:1900mm;
Machine Weight: 850kg
