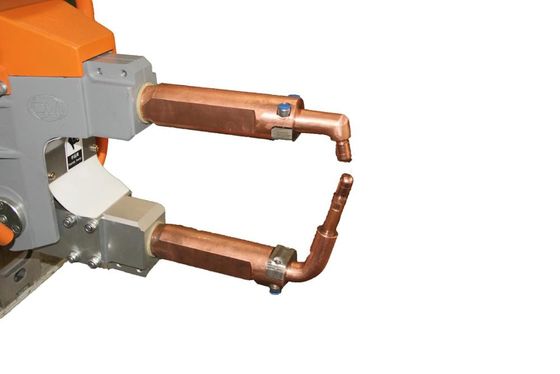

X Type 60Hz 45KVA Portable Spot Welding Machine For Car Body

  • X Type 60Hz 45KVA Portable Spot Welding Machine For Car Body
  • X Type 60Hz 45KVA Portable Spot Welding Machine For Car Body
Place of Origin China
Brand Name XWH
Certification CE
Model Number DN2
Minimum Order Quantity 1 Set
Price $3,000.00-$5,000.00
Packaging Details wooden Case
Delivery Time 15 Working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500 Set/Sets per Week
Product Details
Product Name X Type Gun/ Portable Spot Welding Machine For Car Body Machine Type Auto Repair Tools
Rated Capacity 45KVA After Warranty Service Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG) 60 KG Max. Welding Thickness 3.5+3.5mm
Rated Duty Cycle 50% Voltage 380V
Highlight

45KVA portable spot welding machine

,

portable spot welding machine 60Hz

,

45KVA car body spot welder
Leave a Message
Product Description

 X Type Gun/ Portable Spot Welding Machine for Car Body






Details



Features



Item/models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KVA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

120-280



 100 120-330 100 160-430 100
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-800 200-500 400-1100 200-500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 12 12 12 12 12 12



Resistance welding is a type of welding method that uses resistance heat as the energy source, including electroslag welding that uses slag resistance heat as the energy source and resistance welding that uses solid resistance heat as the energy source.


Resistance welding is generally a welding method in which the workpiece is placed under a certain electrode pressure and the contact surface between the two workpieces is melted by the resistance heat generated when the current passes through the workpiece to realize the connection. Generally, a larger current is used. To prevent arcing on the contact surfaces and to forge the weld metal, pressure must always be applied during the welding process. When performing this type of resistance welding, the surface quality of the welded workpiece is of paramount importance for obtaining stable welding quality. Therefore, the contact surface between the electrode and the workpiece and between the workpiece and the workpiece must be cleaned before welding.
