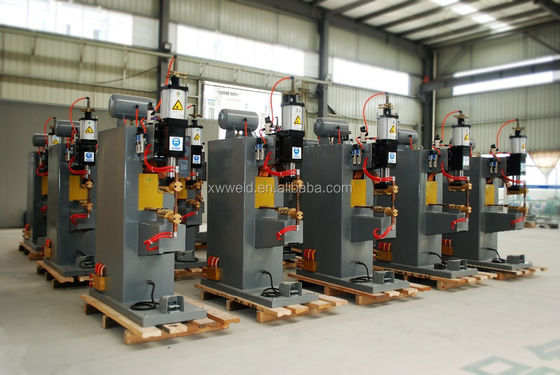

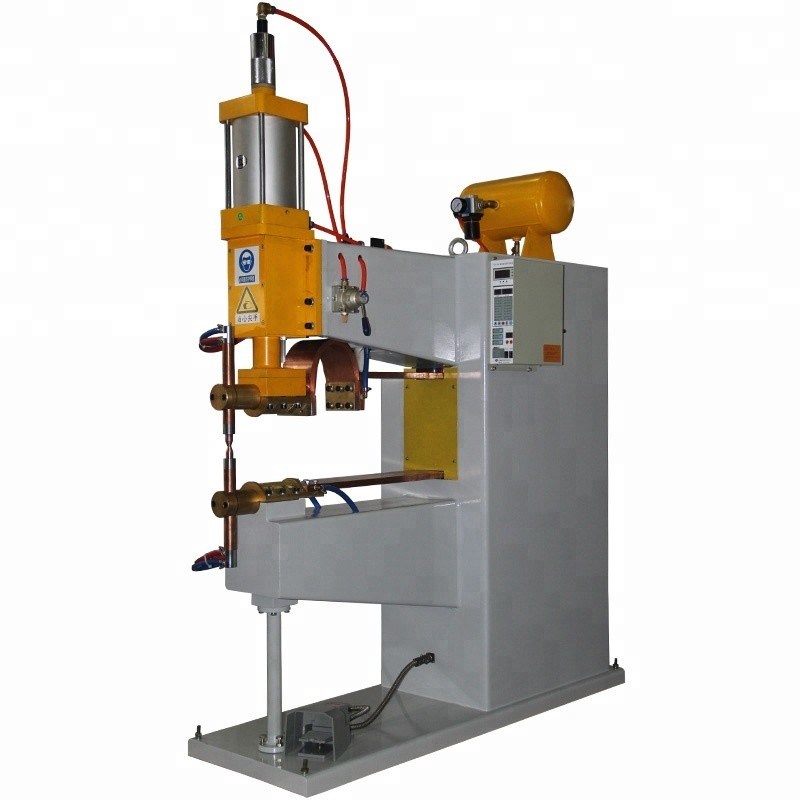

18mm Projection Nut Welding Machine

  • 18mm Projection Nut Welding Machine
  • 18mm Projection Nut Welding Machine
  • 18mm Projection Nut Welding Machine
Place of Origin China
Brand Name XWH
Certification CE
Model Number DNB
Minimum Order Quantity 1
Price USD2000-USD100000
Packaging Details Wooden Case
Delivery Time 20 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 30 sets/month
Product Details
Product Name Nut Spot Projection Welding Machine For Cage Kitchen Machine Type Resistance Welding
Core Components Engine, Motor, Transformer Voltage 220V
Frequency 50HZ/60HZ Welding Area 1-18mm
Rated Duty Cycle 50% Weight 500kg
Highlight

18mm projection nut welding machine

,

ISO projection nut welding machine
Leave a Message
Product Description

Nut Spot Projection Welding Machine For Cage Kitchen



Details
MODEL

DN-40
DN-63
D(T)N-80
D(T)N-100
D(T)N-125
D(T)N-160
D(T)N-200
Rated power At 50%
KVA
40
63
80
100
125
160
200
Rated primary power
V
380
380
380
380
380
380
380
Secondary Voltage
V
5.2
6.7
7.9
8.3
8.6
9.1
10.6
Rated frequency
HZ
50/60
50/60
50/60
50/60
50/60
50/60
50/60
Max.Short Circuit Current
KA
14
15
16
18
20
28
34
Max. weld power
KVA
62
86
170
280
300
330
410
Throat
MM
500
500
630
630
630
630
630
Max.Froce at electrodes
N
6000
6000
10000
10000
10000
12000
12000
Working stroke
MM
20
20
30
40
40
50
50
Cooling Water Consumpion 2.5bar
L/min
6
6
8
8
8
10
10
Electrodes tlp
MM
Φ13*45
Φ13*45
Φ16*45
Φ16*45
Φ16*45
Φ20*45
Φ20*45
Arms
MM
Φ50*150
Φ50*150
Φ80*220
Φ80*220
Φ80*220
Φ80*220
Φ80*220
Projection Clamping Plate
MM
125*125
125*125
200*200
200*200
200*200
200*200
200*200
Max.Welding
Capaciry
A3 steel
MM
2.5+2.5
3+3
4+4
4.5+4.5
5+5
5+5
6+6
Cooling water flow L/min
8
8
8
8
8
8







18mm Projection Nut Welding Machine 0

Company Information

18mm Projection Nut Welding Machine 1


Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing,marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products.Now it is located in Eastern Industrial Zone, Xindu, Chengdu.


Our main product:

1. Resistance C Type Crank Arm Table Spot Welding Machine
2. Portable MF Spot Welder
3. Suspension Spot Welding Machine
4. Stationary Resistance SpotWelding Machine
5. Robotic Welding Gun
6. Nut Feeder
7. Micro-computer resistance controller,etc
