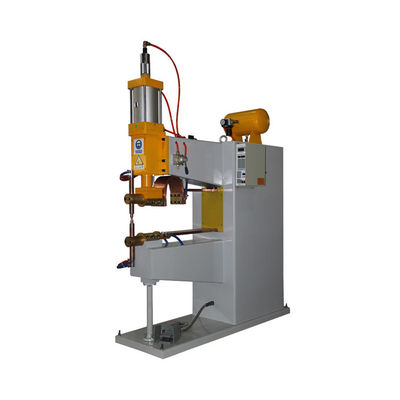

ISO 150KVA Stationary Spot Welding Machine Press Projection Type
Product Details
| Product Name | Resistance Water Refrigerated Spot Welders | Welding Material | Stainless Steel , Galvanized Steel , Iron |
|---|---|---|---|
| Rated Duty Cycle | 50% | Frequency | 50HZ/60HZ |
| Rated Capacity | 25KVA-400KVA | Welding Head | Single Head |
| Production Time | 25-35 Days | Usage | Spot Welding |
| Highlight | ISO stationary spot welding machine,150KVA stationary spot welding machine,ISO projection welding machine |
||
Product Description
stationary frequency inverter resistance press projection type spot welding welder machine
Resistance Water Refrigerated Spot Welders
Product
FEATURE
This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the workpieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.
Parameter List
| Item Model | DN-25 | DN-35 | DN-50 | DN-75 | DN-100 | DN-150 | DN-200 |
| Rated capacity KVA | 25 | 35 | 50 | 75 | 100 | 150 | 200 |
| Rated Primary voltage V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Rated frequency Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Maximum welding input KVA | 38 | 54 | 70 | 146 | 216 | 340 | 450 |
| Rated duty cycle % | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Arm length mm | 340 | 380 | 380 | 380 | 380 | 450 | 450 |
| Maximun compression N | 2500 | 4700 | 4700 | 7300 | 7300 | 12000 | 12000 |
| Electrode stroke mm | 60 | 80 | 80 | 80 | 80 | 100 | 100 |
| Welding capability Low carbon steel mm | 2.0+2.0 | 2.5+2.5 | 3.0+3.0 | 4.0+4.0 | 4.5+4.5 | 5.0+5.0 | 6.0+6.0 |
Why choose this our product?
With this welding product, you can experience many advatages. Pneumatic AC Manul Spot Welder Long Arm Welding Machine can widely used in nut, studs, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.
