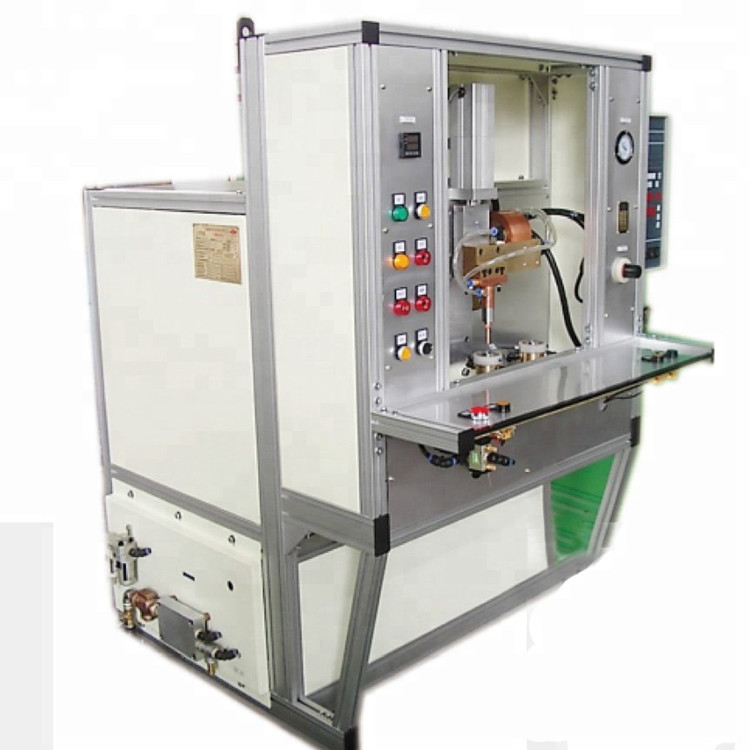

100KVA Table Spot Welding Machine , 60Hz Rocker Arm Spot Welder

  • 100KVA Table Spot Welding Machine , 60Hz Rocker Arm Spot Welder
  • 100KVA Table Spot Welding Machine , 60Hz Rocker Arm Spot Welder
Place of Origin China
Brand Name XWH
Certification CE, ISO
Model Number DNB
Minimum Order Quantity 1
Price USD 800-USD 1000
Packaging Details Wooden Case
Delivery Time 10 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500 sets/month
Product Details
Product Name 100KVA Rocker Arm Galvanized Sheet Table Spot Welding Machine Frequency 50HZ/60HZ
Power 100KVA Voltage 380V Or 480V Or Custom Made
Rated Duty Cycle 50% Usage Table Spot Welding
Platform Distance 2000mm Rated Capacity 25/35/50 KVA
Highlight

100KVA table spot welding machine

,

60Hz table spot welding machine

,

60Hz rocker arm spot welder
Leave a Message
Product Description
100KVA Rocker Arm galvanized sheet Table Spot Welding Machine

Product Description

Main Features


DNT-100K Rocker Arm galvanized sheet Table Spot Welding Machine



1. There are two types of Welding Power Source : AC Spot Welding or Medium Frequency inverter DC spot welding;



2. The lower welding electrode is designed level flat table:Welding range increased,the welded workpiece stays

very flat,not deformed,no mark and smooth under welding point;



3. The up welding electrode is designed as Multi-joint arm, welding easily, without moving work piece, only move the welding gun, can weld any position in the range of the down flat table;



4. At the same time in the 200mm range the lower welding flat table can go up and down freely, by this way

it is suitable for welding various shape and size of products;



5. Welding Gun can be made in two types: Vertical Welding or Horizontal Welding,choosed according to

different workpiece,More easily operating and freely, safe and reliable.



Technical parameters



DNT-100K Rocker Arm galvanized sheet Table Spot Welding Machine



Rated Capacity: 50KVA~200KVA,

Input Voltage:220V/380V~480VAC(Optional), 50Hz/60Hz

Air Source Pressure: =0.5Mpa;

Electrode Force: =2.2KN

Welding Table Size:800mm(W) ×1000mm(L);

Welding Table Height: 750~950mm (200mm Stroke);

Welding Gun Type: Horizontal Gun or Vertical Gun

(Optional);

Welding Gun Length: 395mm;

Machine Size : L:1580mm×W:1000mm×H:1900mm;

Machine Weight: 850kg
