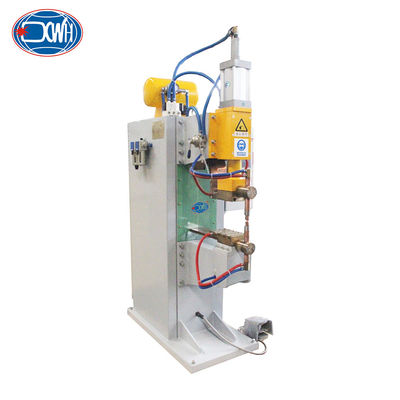

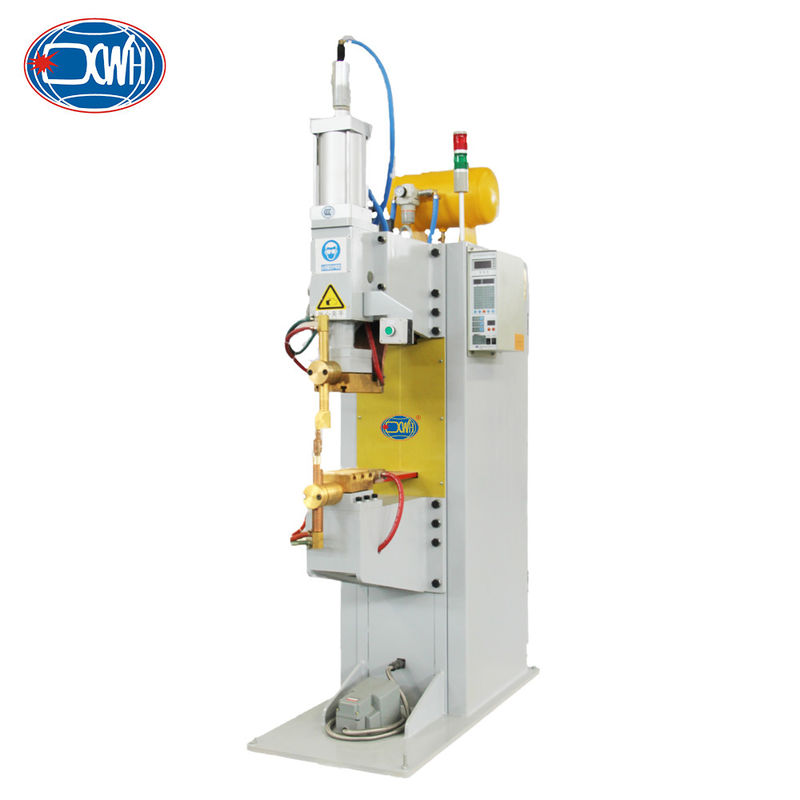

Pneumatic AC380V Stationary Spot Welding Machine , 10000N Manual Spot Welder
| Brand Name: | XWH |
| Model Number: | DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200 |
| MOQ: | 1 |
| Price: | USD3000-USD5000 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
10000N manual spot welder
,10000N stationary spot welding machine
,AC380V stationary spot welding machine
Product Introduction:
Stationary type carbon steel resistance ac spot welding machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of workpiece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.
We are a professional carbon steel resistance ac spot welding machine manufacturer, the power of the stationary type carbon steel resistance AC spot welding machine and carbon steel ac spot welding machine that we produce is from 25KVA to 800KVA. It can be used to weld 10mm of iron and metals like stainless steel. Low cost ac spot welding machine applicable to all kinds of hardware.
Technical Parameters:
| Model Item | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 |
| Rated power At 50%(KVA) | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Rated primary power(V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Secondary Voltage(V) | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
| Rated frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max.Short Circuit Current(KA) | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
| Max. weld power(KVA) | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
| Throat(mm) | 500 | 500 | 630 | 630 | 630 | 630 | 630 |
| Max.Froce at electrodes(N) | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
| Working stroke(mm) | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
| Cooling Water Consumpion 2.5bar(L/min) | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
| Electrodes tlp(mm) | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
| Arms(mm) | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
| Projection Clamping Plate(mm) | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
| Max.Welding Capaciry(mm) | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 | 6+6 |
Advantages:
1. The body of the stationary spot welding machine is cast by the thickened steel plate, and the body is stable.
2. The upper and lower electrodes are made of highly conductive materials with auxiliary pressure, which has good welding effect and high efficiency. The internal water cooling system can reduce the welding temperature.
3. Spot welder can store up to 15 groups of welding modes, which can meet the requirements of different workpieces.
4. D(T)N series fixed spot welder can weld plate, nut, steel bar, metal wire, etc.
