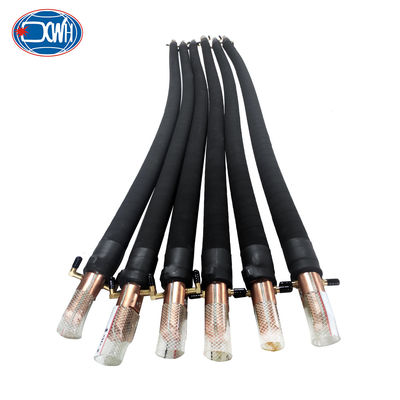

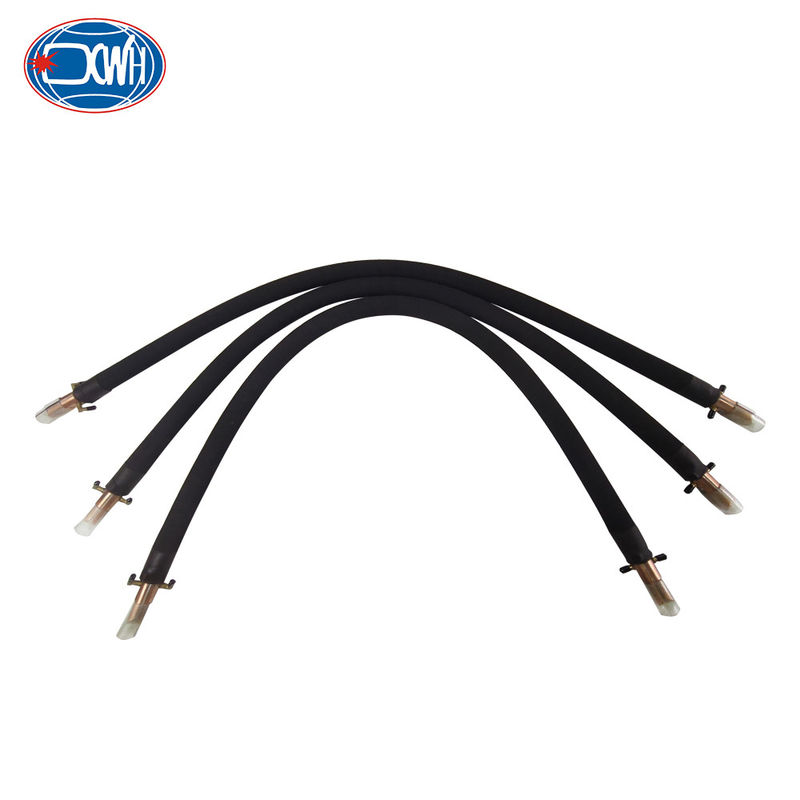

Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine
| Brand Name: | XWH |
| Model Number: | XW |
| MOQ: | 5 |
| Price: | USD300-USD350 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Industrial Water Cooled Kickless Cables
,Copper Kickless Cables
,Spot Welding Water Cooled Cable
Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine
Parameter
| Item Specifiction | 300mm² | 400mm² | Note | |
| Impedance | 2.0M | 480±15μΩ | 358±15μΩ | |
| 2.4M | 593±15μΩ | 445±15μΩ | ||
| Dc impedance value | 2.0M | 475μΩ | 355μΩ | |
| 2.4M | 587μΩ | 440μΩ | ||
| Resistance | 2.0M | 78μΩ | 74μΩ | Calculated Value |
| 2.4M | 82μΩ | 88μΩ | ||
| Power | =0.99 | =0.99 | ||
| Cooling water capacity | 7.0L/MIN | 7.0L/MIN | Pressure Loss of 0.7KG/cm | |
| Temperature rise characteristic | 2.0M | 45℃/5900A | 45℃/6800A | |
| 2.4M | 45℃/5400A | 45℃/6200A | ||
| Weight | 2.0M | 10.4KG | 13.2KG | Average Value |
| 2.4M | 12.2KG | 15.3KG | ||
Features
1. High-purity red copper hinge cables, having higher conductivity and lowering impedance between the transformer output and the welding gun
2. Excellent rubber sleeves and plum blossom rubber cores, having good pressure resistance, heat resistance, wear resistance, and bending performance
3. High resistance to repeating kicks and bending caused by electro-magnetic force induced by welding current and welding operation, and accordingly long life and good economy.
4. Minimal water pressure drop for excellent cooling effect
5. Convenient cable replacement and minimal downtime
Standard Drawing
Cross Section 300mm²
Cross Section 400mm²
Besides standard models, we can customized according to your requirements. More details, please contact!
Scene images
Raw Materials: Pure Red Copper
Careful Protection :Additional Rubber Sleeve
Finished Product
Application
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
