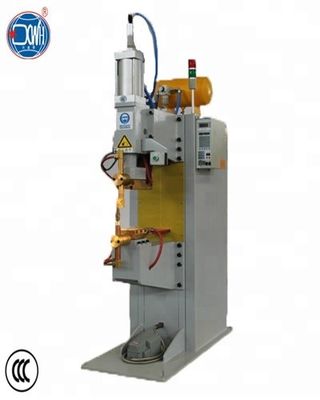

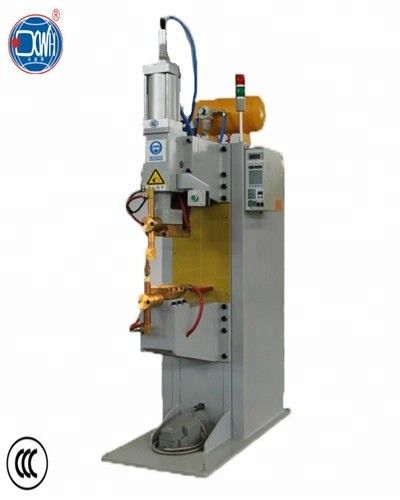

Product Details:
|
| Product Name: | Portable Foot Press Spot Welding Machine | Machine Type: | Auto Repair Tools |
|---|---|---|---|
| Rated Capacity: | 40-200KVA | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maint |
| Weight (KG): | 200 KG | Rated Duty Cycle: | 50% |
| Voltage: | 380V | ||
| Highlight: | 20mm auto body spot welder,200KVA foot operated spot welder,6000N foot operated spot welder |
||
| MODEL | DN-40 | DN-63 | DN-80 | DN-100 | DN-125 | DN-160 | DN-200 | |||
| Rated power At 50% | KVA | 40 | 63 | 80 | 100 | 125 | 160 | 200 | ||
| Rated primary power | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 | ||
| Secondary Voltage | V | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 | ||
| Rated frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | ||
| Max.Short Circuit Current | KA | 14 | 15 | 16 | 18 | 20 | 28 | 34 | ||
| Max. weld power | KVA | 62 | 86 | 170 | 280 | 300 | 330 | 410 | ||
| Throat | MM | 400 | 400 | 400 | 450 | 450 | 450 | 450 | ||
| Max.Froce at electrodes | N | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 | ||
| Working stroke | MM | 20 | 20 | 30 | 40 | 40 | 50 | 50 | ||
| Cooling Water Consumpion 2.5bar | L/min | 6 | 6 | 8 | 8 | 8 | 10 | 10 | ||
| Electrodes Dimensions | Electrodes tlp | MM | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 | |
| Arms | MM | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | ||
| Projection Clamping Plate | MM | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 | ||
| Max.Welding Capaciry | A3 steel | MM | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 | 6+6 | |
ChengDu XinWei Welding Technoloy Co.Ltd is a high tech-corporation of resistance welding machine and relative products integrated with researching , developing, manufacturing, marketing and service.We have 15 years experience in welding technology.In 2008,our output of single product is more than 1000 units.
Cooperative partner
This is one of our overseas customers' factories.
Exhibition
Our company is a manufacturer of welding equipment and has the right to run the import/export business.
1. Packaging: Depending on customers' requirement,such as iron case or iron pallet etc.
2. Shipping: When the container arrived our factory,our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.
♥ Your reply will be replied within 24 hours.
♥ Fast delivery time and good after service.
♥ Keep the mass production as the sample in high quality.
♥ Freight forwarder: faster, safer, and convenient.
♥ Good factory price.
♥ Guaranteed for one year.
♥ Providing overseas services.
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2. Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3. Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4. How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
6. How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8. Can you put my brand name (logo) on this Spot Welder?
Yes,we can . In order to explore the market better and provide more convenient services to global customers.
9. What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
