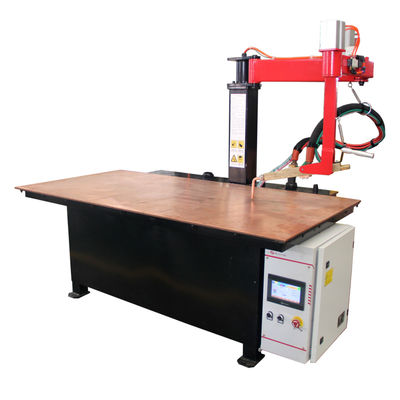

C Type 130KVA 3500N Resistance Spot Welding Equipment Table Top

  • C Type 130KVA 3500N Resistance Spot Welding Equipment Table Top
Place of Origin China
Brand Name XWH
Certification CE, ISO
Model Number DNB
Minimum Order Quantity 1
Price USD5000-USD8000
Packaging Details Wooden Case
Delivery Time 15 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500 sets/month
Product Details
Product Name 130KVA Resistance C Type Crank Arm Table Spot Welding Machine Voltage 220V/380V/415V/440V
Frequency 50HZ/60HZ Table Customized
Dimensions Customized Rated Duty Cycle 50%
Max. Welding Thickness 3mm+3mm Weight 800kg
Highlight

130KVA resistance spot welding equipment

,

3500N resistance spot welding equipment

,

3500N table top spot welding machine
Leave a Message
Product Description
160KVA Resistance C Type Crank Arm Table Spot Welding Machine

Product Display

Resistance C Type Crank Arm Table Spot Welding Machine are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets.

Meanwhile the arm can be custom-made according to your requirement.Portable Spot Welder are used in low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets.



Models Item
DN(B)-60
DN(B)-80
DN(B)-100
DN2-130
Power at 50% KVA

60
80
100
130
Maximum short circuit current KA

10
12
14
14
Secondary unload voltage V

8.9
8.9
8.9
8.9
Voltage at 50Hz/60Hz V

3φ380
3φ380
3φ380
3φ380
Distance between the arms mm

120-280
120-280
120-280
100-300
Max. strength at electrodes N




3500
3500
3500
3500
Working stroke mm

15-45
15-45
15-45
15-25
Max. stroke mm

50-120
50-120
50-120
60/100/140
Arm length mm

240-500
240-600
240-600
200-500
Compressed Air supply MPa

0.5
0.5
0.5
0.5
Max.thickness of mild steel sheet with min. length s arm mm

3+3
4+4
5+5
5+5
With 500mm arms mm

2+2
3+3
3+3
3+3
With maximum length arms mm

1.2+2
2+2
2.0+2.0
2.0+2.0
Cross wire maximum mm

14+14
16+16
20+20
20+20
Cooling water pressure drop MPa

0.05
0.05
0.05
0.05
Cooling water flow L/min

8
8
8
8


Company Information

C Type 130KVA 3500N Resistance Spot Welding Equipment Table Top 0


Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing,marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products.Now it is located in Eastern Industrial Zone, Xindu, Chengdu.


Our main product:

1. Resistance C Type Crank Arm Table Spot Welding Machine
2. Portable MF Spot Welder
3. Suspension Spot Welding Machine
4. Stationary Resistance SpotWelding Machine
5. Robotic Welding Gun
6. Nut Feeder
7. Micro-computer resistance controller,etc

Certifications

C Type 130KVA 3500N Resistance Spot Welding Equipment Table Top 1
C Type 130KVA 3500N Resistance Spot Welding Equipment Table Top 2

Exhibition

C Type 130KVA 3500N Resistance Spot Welding Equipment Table Top 3



Service

C Type 130KVA 3500N Resistance Spot Welding Equipment Table Top 4

Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining spot welding machines and so on..
