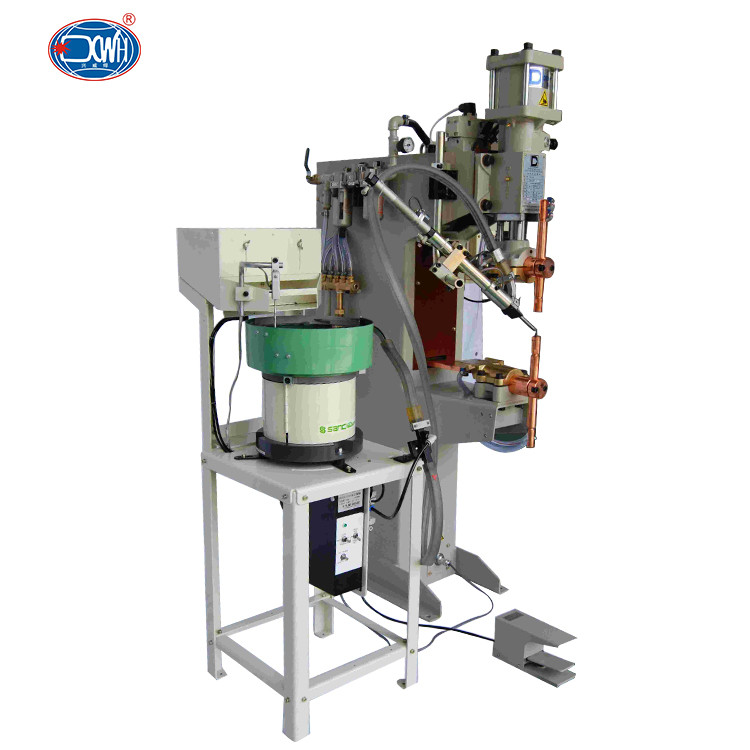

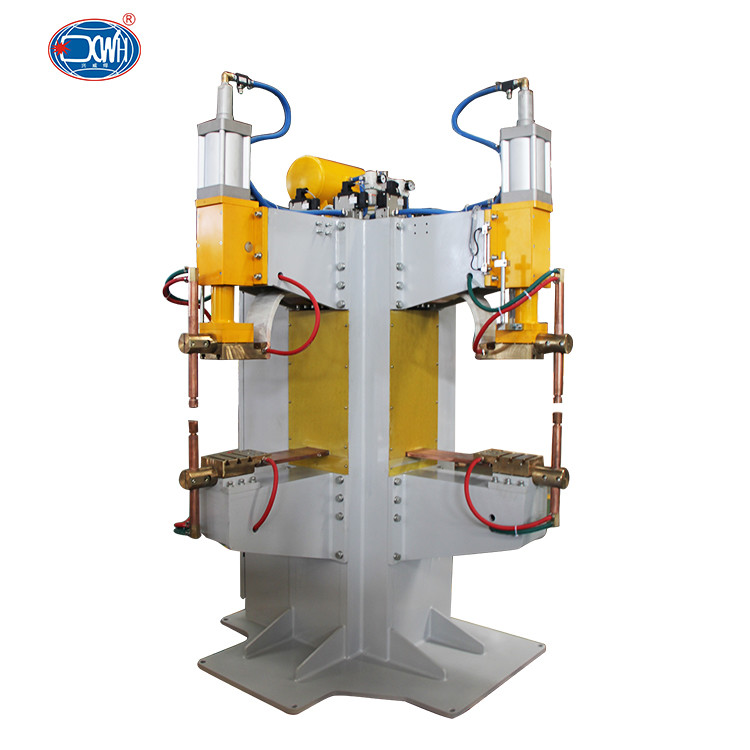

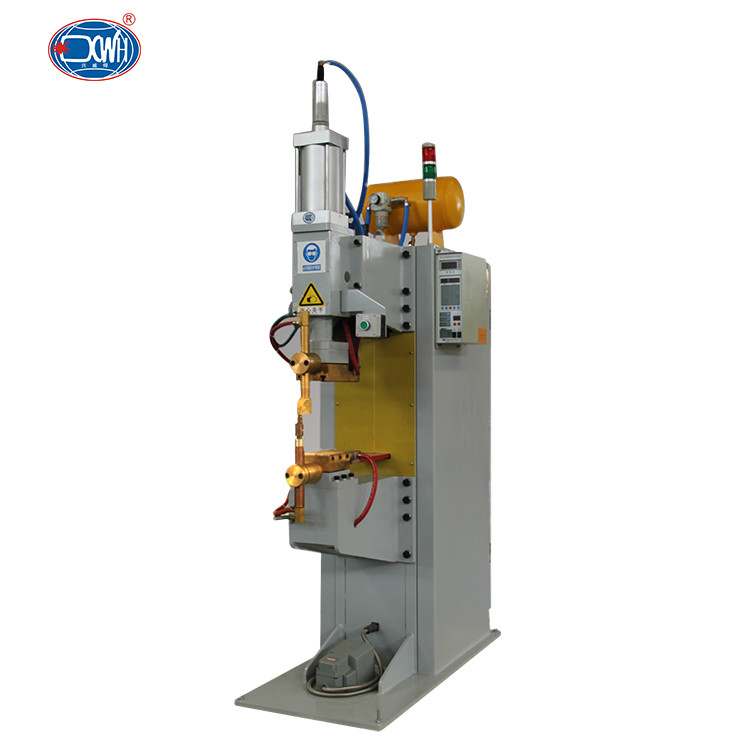

OEM Stationary Spot Welding Machine , 100Kva Projection Nut Welding Machine

  • OEM Stationary Spot Welding Machine , 100Kva Projection Nut Welding Machine
  • OEM Stationary Spot Welding Machine , 100Kva Projection Nut Welding Machine
  • OEM Stationary Spot Welding Machine , 100Kva Projection Nut Welding Machine
  • OEM Stationary Spot Welding Machine , 100Kva Projection Nut Welding Machine
Place of Origin China
Brand Name XWH
Certification CE
Model Number DTN
Minimum Order Quantity 1
Price USD3000-USD5000
Packaging Details Wooden Case
Delivery Time 15 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500 sets/month
Product Details
Product Name 100 Kva Stationary Resistance Nut Projection Spot Welding Machine MOQ 1 Set
Throat Customized Frequency 50HZ/60HZ
Voltage 220V/380V/415V/440V Control System Microcomputer
Power 100 Kva Machine Type Resistant Spot Welding Machine
Highlight

100Kva projection nut welding machine

,

100Kva stationary spot welding machine

,

OEM stationary spot welding machine
Leave a Message
Product Description
100 Kva Stationary Resistance Nut Projection Spot Welding Machine


Advantages:

1. Transformer is made of copper and epoxy resins with cooling water and low resistance,low loss and high output, good seismic performance, high power factor, transformer can be replaced without charge in five yeas because of quality defects.

2. Microcomputer constant pressure/current controller, three sections discharging,can control each welding time and welding current accurately,easy to operate.

3. The upper and lower arms are entire plate and " C " structure, which make the machine body having good rigidity. The main axis of the cylinder is designed with big and small axis, fall down fast and reduce shock. These designd promise the high and steadily welding quality.

4. Reasonable secondary circuit structure, high quality conductive material, which reduces circuit impedance greatly and makes sure high efficiency and saving energy welding.



MODEL
Item
Unit
DN-40
DN-63
D(T)N-80
D(T)N-100
D(T)N-125
D(T)N-160
D(T)N-200
Rated power At 50%
KVA
40
63
80
100
125
160
200
Rated primary power
V
380
380
380
380
380
380
380
Secondary Voltage
V
5.2
6.7
7.9
8.3
8.6
9.1
10.6
Rated frequency
HZ
50/60
50/60
50/60
50/60
50/60
50/60
50/60
Max.Short Circuit Current
KA
14
15
16
18
20
28
34
Max. weld power
KVA
62
86
170
280
300
330
410
Throat
MM
500
500
630
630
630
630
630
Max.Froce at electrodes
N
6000
6000
10000
10000
10000
12000
12000
Working stroke
MM
20
20
30
40
40
50
50
Cooling Water Consumpion 2.5bar
L/min
6
6
8
8
8
10
10
Electrodes tlp
MM
Φ13*45
Φ13*45
Φ16*45
Φ16*45
Φ16*45
Φ20*45
Φ20*45
Arms
MM
Φ50*150
Φ50*150
Φ80*220
Φ80*220
Φ80*220
Φ80*220
Φ80*220
Projection Clamping Plate
MM
125*125
125*125
200*200
200*200
200*200
200*200
200*200
Max.Welding Capaciry
MM
2.5+2.5
3+3
4+4
4.5+4.5
5+5
5+5
6+6

OEM Stationary Spot Welding Machine , 100Kva Projection Nut Welding Machine 0
OEM Stationary Spot Welding Machine , 100Kva Projection Nut Welding Machine 1

100 Kva Stationary Resistance Nut Projection Spot Welding Machine can widely used in nut, studs, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.
