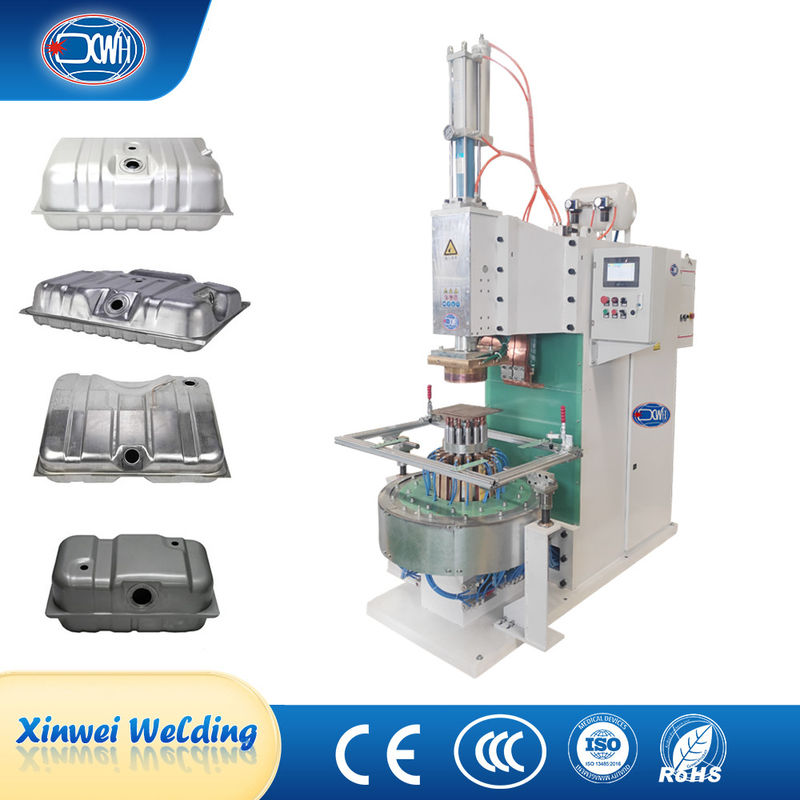

Stainless Steel Multi-Spot Multi Spot Welder Aluminum Fuel Tank Welding Machine
| Brand Name: | XWH |
| Model Number: | DN(B)-160, DN(B)-200, DN(B)-250 |
| MOQ: | 1 |
| Price: | USD30000-USD40000 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Suction Car Dent Remover Machine
,1.2mm Body Panel Spot Welder
,6800A Car Dent Puller
Stainless Steel Multi-Spot Multi Spot Welder Aluminum Fuel Tank Welding Machine
Product Introduction:
Platform type spot welding machine is mainly designed for large metal workpieces in industries such as hardware, sheet metal, elevators, kitchenware, and automobiles.
Advantages:
1. The overall structure has a unique style and is commonly used in welding operations of automotive fuel tanks. The body is designed for impact resistance, seismic resistance, and high rigidity, and is finely processed by machinery to meet the installation and load strength of various components. Multiple reinforcement ribs have been welded inside the frame to ensure the rigidity of the equipment and minimal deformation during the welding process, ensuring the stability of welding and the safety of manual use.
2. The upper electrode is pressurized by an auxiliary cylinder, which makes stroke adjustment convenient and accurate, making the workpiece operation stroke continuously adjustable.
3. The spare dedicated gas storage tank for welding machines is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.
Technical Parameters:
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
General Structures:
Workpiece:
Production Line:
Application:
FAQ:
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
