Welder Machines Industrial Cnc Automatic Spot Welding Machine For Stainless Steel
| Place of Origin | China |
|---|---|
| Brand Name | XWH |
| Certification | CE |
| Model Number | DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200 |
| Minimum Order Quantity | 1 Set |
| Price | USD48000-USD58000 |
| Packaging Details | Non-fumigation Wooden Case |
| Delivery Time | 15 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500 sets/month |
Product Details
| Product Name | Spot Welding Machine For Stainless Steel | Application | Heater Housing Welding |
|---|---|---|---|
| Function | Sheet Metal Spot Welding | Machine Type | Pneumatic |
| Keyword | Welding Machine Prices | Welding Material | Alloy Metal Aluminum Stainless Steel |
| Feature | Microcomputer Digital Control | Warranty | 12 Months Guarantee |
| After-sales Service Provided | Free Spare Parts, Field Installation, Commissioning And Training | After Warranty Service | Video Technical Support, Online Support And Spare Parts |
| Highlight | Cnc Automatic Spot Welding Machine,Stainless Steel Spot Welding Machine,Industrial Cnc Spot Welder |
||
Product Description

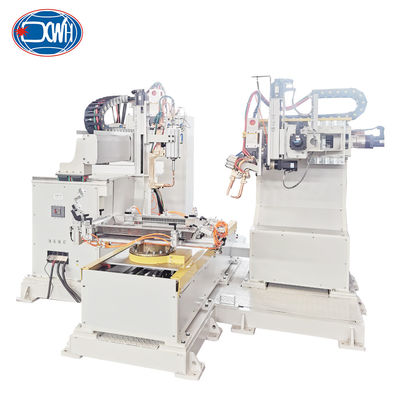

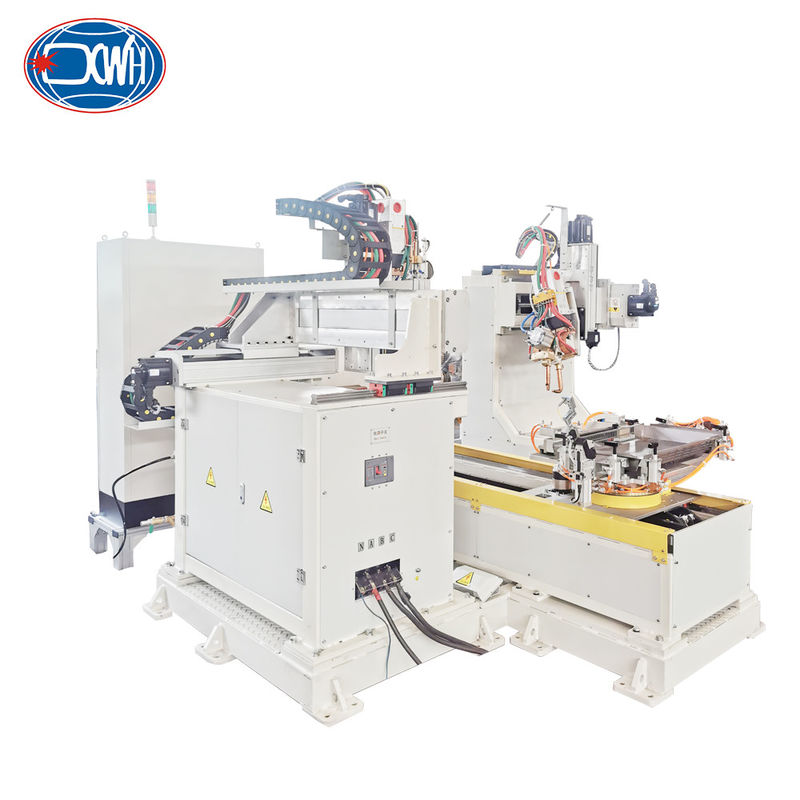

Welder Machines Industrial Cnc Automatic Spot Welding Machine For Stainless Steel
Product Description:
The heater shell welding machine is mainly used for welding the shell, and the welding workpiece is mainly made of carbon steel and stainless steel. By adjusting the positioning block, three types of workpieces can be welded.
Advantages:
1. Control system: composed of main control cabinet, touch screen, and operation box. The main control cabinet is placed independently, and the touch screen is installed on the fence. This device is equipped with a three color light sound and light warning device.
2. X-type welding clamp moving mechanism: composed of linear module, servo motor, rotating platform, X-type welding clamp (cylinder), welding transformer, etc. Using linear modules to make the appearance of the equipment cleaner and more aesthetically pleasing. The rotating platform can rotate the welding tongs to the desired angle, making adjustment more convenient and concise.
3. C-type welding clamp moving mechanism: composed of linear module, servo motor, C-type welding clamp (cylinder), welding transformer, etc. Using linear modules to make the appearance of the equipment cleaner and more aesthetically pleasing.
Technical Parameters:
| Item/Model | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 | |
| Rated power At 50% | KVA | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Rated primary power | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Secondary Voltage | V | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
| Rated frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max.Short Circuit Current | KA | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
| Max. weld power | KVA | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
| Throat | MM | 500 | 500 | 630 | 630 | 630 | 630 | 630 |
| Max.Froce at electrodes | N | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
| Working stroke | MM | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
| Cooling Water Consumpion 2.5bar | L/min | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
| Electrodes tlp | MM | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
| Arms | MM | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
| Projection Clamping Plate | MM | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
| Max.Welding Capaciry A3 steel | MM | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 |
6+6 |
Workpiece:
The customized spot welding machine can weld 3 workpieces as long as you adjust the positioning block.
General Structures:
Production Line:
Application:
Daily Maintenance Guide:
1. When welding, the cabinet door of the welding machine control device must be closed;
2. The inspection and adjustment of the control box device should be carried out by professional personnel;
3. Due to strong vibrations in the workshop, regularly tighten the electrical control screws.
Regular Inspection Content:
| Check Positions | Inspection contents | Inspection Method | Inspection Cycle | Treatment |
| Welding Tongs | Is there any damage | Visual inspection, regular inspection | Once a week | cleaning |
| Rotation Support | Once a month | Add lubricating oil (grease) | ||
| Linear Guide Rail | Once a month | Add lubricating oil (grease) |
FAQ:
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
