380volt Cnc Welding Resistance Industrial Copper Wire Spot Welder Welding Machines
| Brand Name: | XWH |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| MOQ: | 1 |
| Price: | USD28000-USD38000 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Industrial Copper Wire Spot Welder
,Resistance Copper Wire Spot Welder
,380volt Cnc Welding Machine
380volt Cnc Welding Resistance Industrial Copper Wire Spot Welder Welding Machines
Product Introduction
Standard projection welding machine is mainly used for welding plates of low-carbon steel, stainless steel, aluminum alloy, and some non-ferrous metals, as well as projection welding between plates, nuts, and bolts. And this welding machine is a copper wire welding machine, which is a fixed point projection welding machine specially designed for welding copper wire according to customer requirements. It is a welding equipment that does not move the machine and moves the workpiece. The welding machine has a simple and compact structure, novel and beautiful design, and stable performance; Features such as safe, reliable, efficient, and energy-saving use.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The body of the stationary spot welding machine is cast by the thickened steel plate, and the body is stable.
2. The upper and lower electrodes are made of highly conductive materials with auxiliary pressure, which has good welding effect and high efficiency. The internal water cooling system can reduce the welding temperature.
3. Spot welder can store up to 15 groups of welding modes, which can meet the requirements of different workpieces.
4. Widely used in aerospace, automobile and automobile parts manufacturing,new energy and power battery and other special areas of high quality welding requirements.
Major Structure

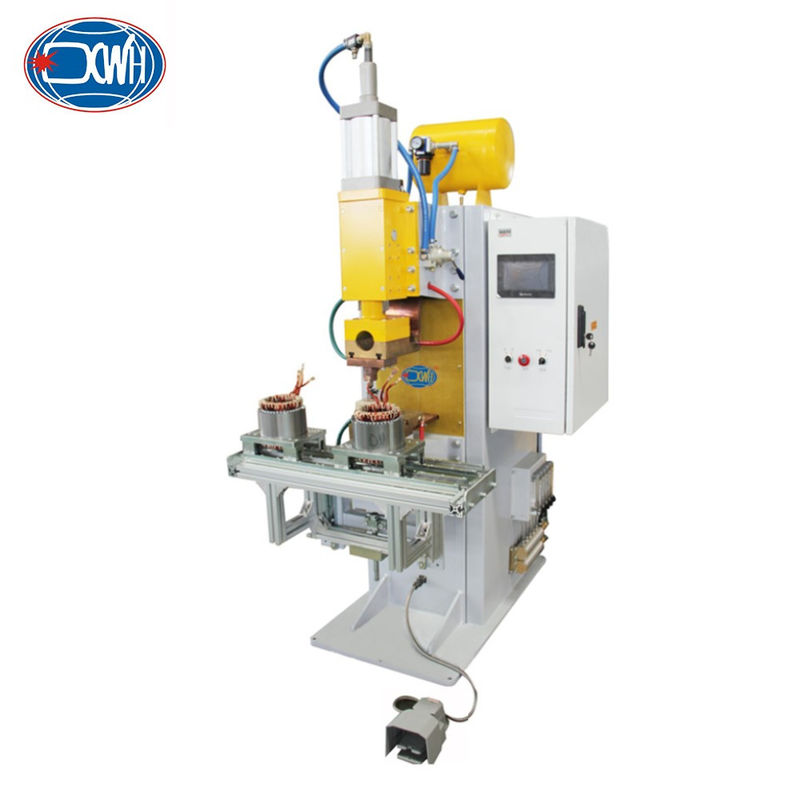

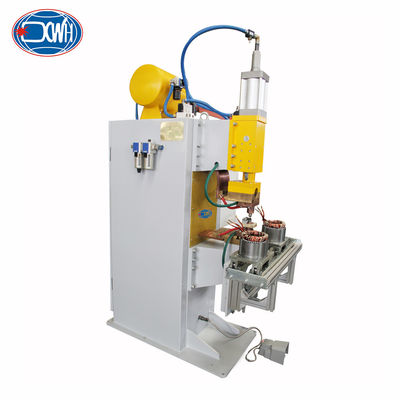

Reference Pictures
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
