Industrial Welding Equipment Welder Spot Welding Machine For Shock Absorber
| Place of Origin | China |
|---|---|
| Brand Name | XWH |
| Certification | CE |
| Model Number | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity | 1 |
| Price | USD28000-USD38000 |
| Packaging Details | Wooden Case |
| Delivery Time | 15 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50 sets/month |
Product Details
| Product Name | Shock Absorber Welding Machine | Machine Type | Spot Welding Machine |
|---|---|---|---|
| Application | Welding Shock Absorber | Function | Point Welding Machine |
| Keyword | Manual Spot Welding Machine | Welding Material | Alloy Metal Aluminum Stainless Steel |
| Max. Welding Capacity | 6+6mm | After Warranty Service | Free Spare Video Technical Support, Online Support And Spare Parts Parts, Field Installation, Commissioning And Training |
| After-sales Service Provided | Free Spare Parts, Field Installation, Commissioning And Training | Certification | CE |
| Highlight | Shock Absorber Industrial Welding Equipment,Industrial Manual Spot Welding Machine,Shock Absorber Point Welding Machine |
||
Product Description

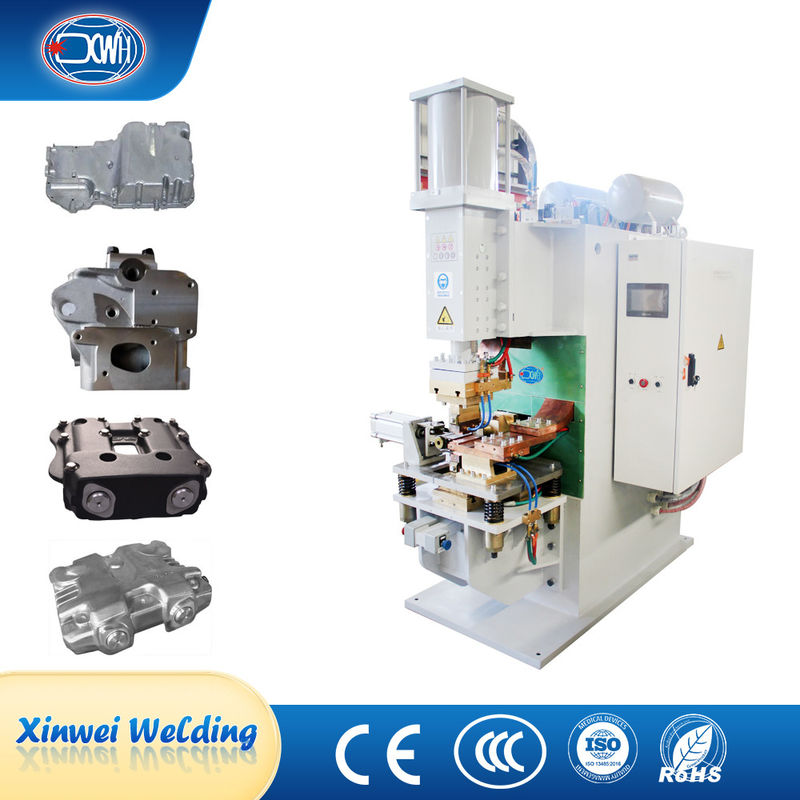

Industrial Welding Equipment Welder Spot Welding Machine For Shock Absorber
Product Introduction
The shock absorber welding machine is designed based on the workpiece with protrusions on the bracket and inner plate provided by the customer. The thickest plate thickness of the welding material is 4.5mm+2.5mm (with 5 welding protrusions on one side). This welding machine adopts pneumatic pressurization and vertical movement of the upper electrode. Each model has the characteristics of simple and compact structure, novel and beautiful appearance, stable performance, safe and reliable use, high efficiency and energy conservation.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. Special fixtures can accurately locate products with high precision
2. Safe and fast production process
3. DC power supply, stable current output, and good product quality
4. Short welding time and high production efficiency
Major Structure
Use and Maintenance of Welding Machines
1. When there is water accumulation in the air filter, close the intake valve to automatically drain the water accumulation.
2. During the use of the welding machine, the workpiece should not be randomly touched or collided with various parts of the welding machine.
3. Regularly inspect and replace damaged components, and replace water and air hoses in a timely manner.
4. The welding table should be cleaned daily and the electrode heads should be trimmed.
5. The water and air systems should be regularly inspected to prevent leakage; No looseness is allowed in the fastening parts.

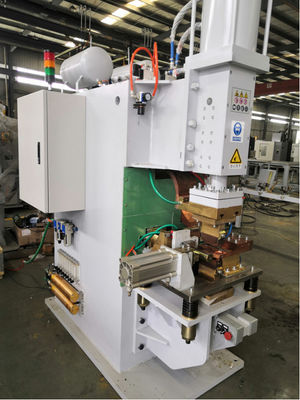

Reference Pictures
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
