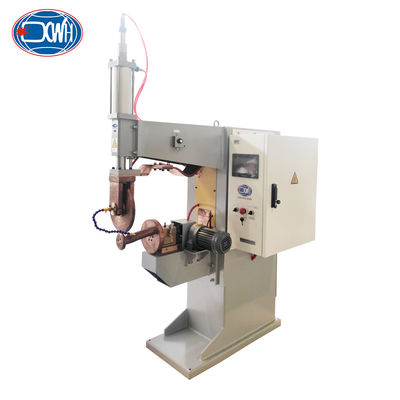

Horizontal Type Water Tank Resistance Rolling Seam Welder Welding Machine For Cans
Brand Name: | XWH |
Model Number: | FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E |
MOQ: | 1 Set |
Price: | $6000.00 - $7000.00 |
Packaging Details: | Wooden Case |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Water Tank Rolling Seam Welder
,Horizontal Rolling Seam Welding Machine
,Cans Resistance Rolling Seam Welder
The FN series AC seam welding machine is a welding equipment that uses electrodes to compress the workpiece and directly uses the heating method of welding current for seam welding. Application: automobile manufacturing industry, agricultural machinery, plate metal processing, construction steel, household appliances, kitchen appliances and other manufacturing industries.
Model Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
Voltage input | V
| 380
| 380
| 380
| 380
| 380
|
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
Motor Power | W | 550 | 750 | 750 | 750 | 400 |
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
Weight | Kg | 380 | 510 | 630 | 530 | 700 |
Advantages
1.The welding process is stable and and the joint is smooth.
2.The welding wheel can move left and right, front and back so as to meet the welding requirements.
3.The whole machine adopts PLC and AC frequency conversion speed regulation to ensure the reliability.
4.Welding forms can be preset, stored and transmitted. You can easily change parameters and state transitions.

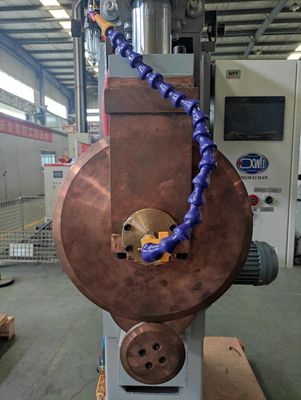

Detail Images

Images
Application
Please note: the welding machine can be custom-made according to your requirements.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
