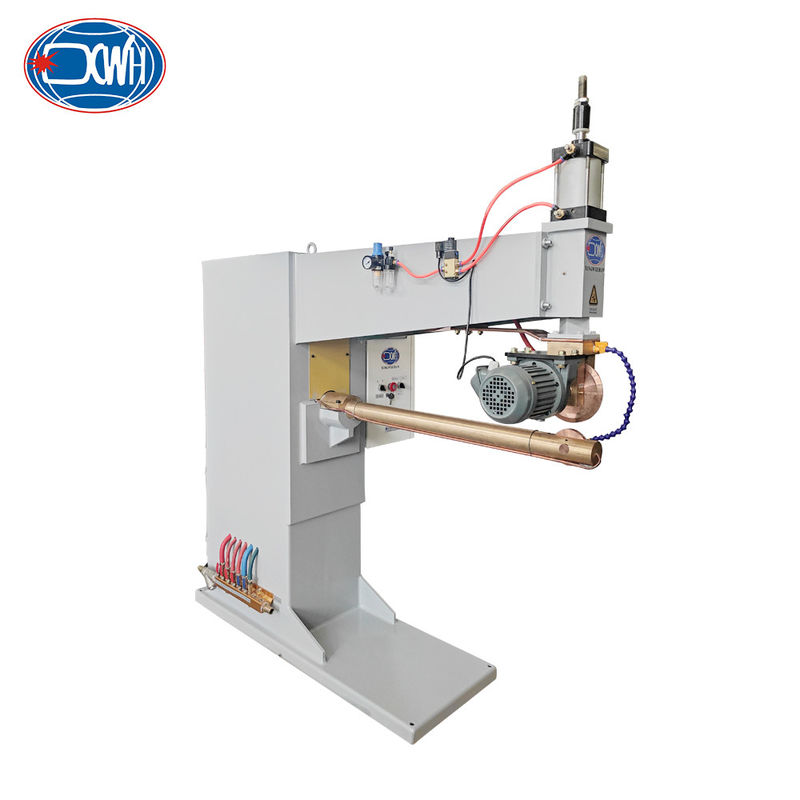

Resistance Automatic Longitudinal Seam Welding Machine Seam Welders For Cans
| Brand Name: | XWH |
| Model Number: | FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E |
| MOQ: | 1 Set |
| Price: | $6000.00 - $7000.00 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Automatic Longitudinal Seam Welding Machine
,Resistance Longitudinal Seam Welding Machine
,Seam Welders For Cans
Seam welding machine is used for lap welding and stitching between stainless steel plates, galvanized plates, high-strength plates, etc., in order to achieve workpiece sealing, such as automotive fuel tanks, motorcycle fuel tanks, water tanks, etc. Adopting pneumatic transmission, cylinder pressurization, mechatronics integration, precise welding process control, and stable welding quality.
|
Model Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
|
Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
|
Voltage input | V
| 380
| 380
| 380
| 380
| 380
|
|
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
|
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
|
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
|
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
|
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
|
Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
|
Motor Power | W | 550 | 750 | 750 | 750 | 400 |
|
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
| Weight | Kg | 380 | 510 | 630 | 530 | 700 |
Advantages
1.The welding process is stable and easy to adjust.
2.Internal cooling used in the welder, while external cooling of the welding wheel.
3.The rotating part is embedded silver tile structure, the conductive seat is fully sealed and lubricating, which improves the conductivity and the rotation flexibility.
4.Two kinds of welding modes: Horizontal and Vertical.
5.Widely used in hardware fittings, electrical, automobile, fuel tank and other manufacturing industries industry.

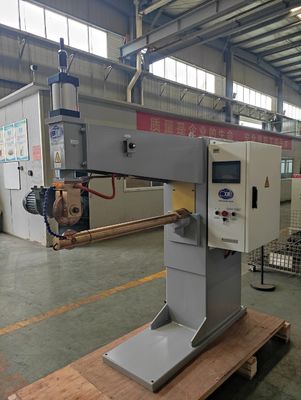

Detail Images
Images
Application
Please note: the welding machine can be custom-made according to your requirements.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
