Precision Steel Door Aluminum Stud Multi Head Spot Welding Machine Dc Inverter
| Place of Origin | China |
|---|---|
| Brand Name | XWH |
| Certification | CE |
| Model Number | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity | 1 |
| Price | USD29000-USD39000 |
| Packaging Details | Wooden Case |
| Delivery Time | 15 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50 sets/month |
Product Details
| Product Name | Dc Inverter Precision Steel Door Aluminum Stud Multi Head Spot Welding Machine | Welding Material | Steel Copper Aluminum Etc |
|---|---|---|---|
| Function | Car Fuel Tank Spot Weldinng | Machine Type | Resistance Welding Machine |
| Advantage | Welding Firmly | Keyword | Multi Head Spot Welding Machine |
| After Warranty Service | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided | Free Spare Parts, Field Installation, Commissioning And Training |
| Highlight | Multi Head Spot Welding Machine CE,200KVA Resistance Welding Machine,Dc Inverter Resistance Welding Machine |
||
Product Description

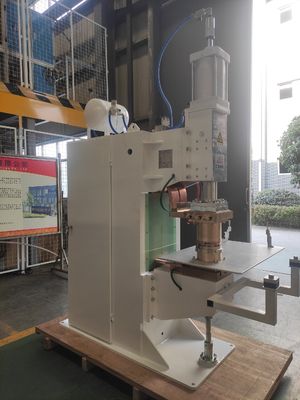

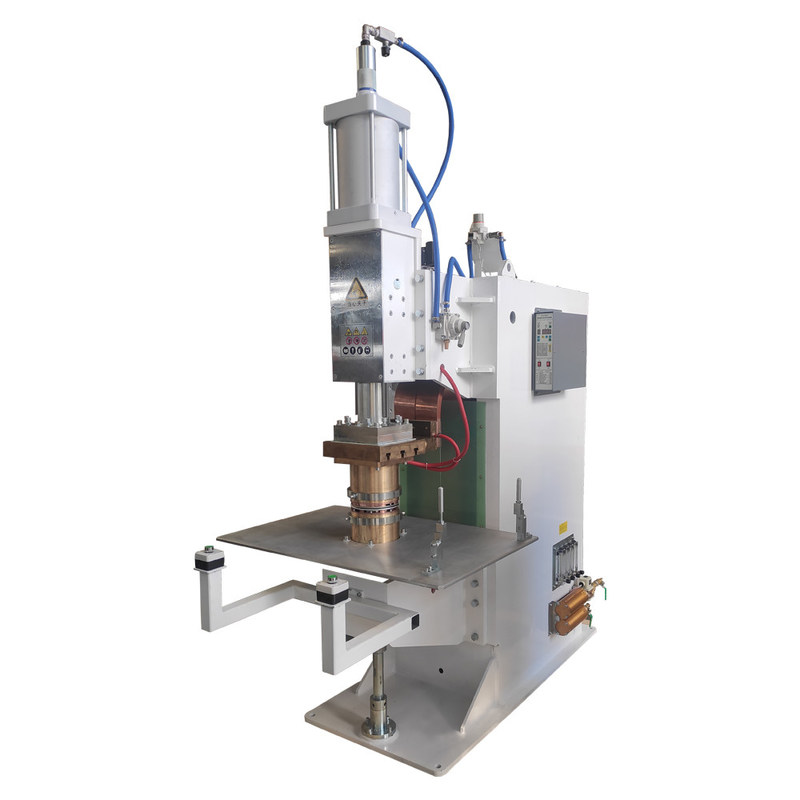

Dc Inverter Precision Steel Door Aluminum Stud Multi Head Spot Welding Machine
Product Introduction
The multi head spot welding machine is mainly composed of machine body, transformer, upper and lower projection welding platform (special projection welding machine), upper and lower welding arm body (special spot welding machine), gas circuit (pressurization) system, water circuit (cooling) system, controller and manual switch.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The welding current is DC. When there are inductive/magnetic materials in the secondary winding, the welding will not be affected;
2. The body of the stationary spot welding machine is cast by the thickened steel plate, and the body is stable.
3. The upper and lower electrodes are made of highly conductive materials with auxiliary pressure, which has good welding effect and high efficiency. The internal water cooling system can reduce the welding temperature.
4. Spot welder can store up to 15 groups of welding modes, which can meet the requirements of different workpieces.
Major Structure
Working Principle
The time control of "pressurization", "welding", "maintenance", "rest" and other procedures in the process of welding workpiece is completed by the time regulator in the spot welding controller. The time required for each procedure and the size of welding current (i.e., "welding specification") should be set in advance.
When the welding machine is welding, first place the workpiece between the electrode of the welding tongs, then press the switch manually, the "pressurization" program starts, the solenoid valve acts, and the compressed air enters the cylinder of the welding machine to make the electrode of the welding tongs act, and then press the workpiece tightly; After an appropriate delay, the "welding" procedure begins. At this time, the primary coil of the welding transformer is connected to the power supply through the triggered thyristor (whose conduction angle is controllable), and the secondary welding current is generated to weld the workpiece; After the "welding" procedure, the thyristor is turned off, the transformer primary coil is powered off, and the welding machine enters the "maintenance" procedure; After the pressure is maintained for a period of time, the solenoid valve is disconnected, the upper electrode releases the workpiece, and the welding machine enters the "rest" procedure. At this time, a welding cycle has been completed.
Reference Pictures
Application
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
