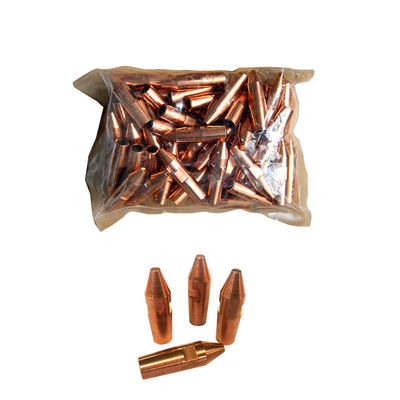

CuCrZr Pro Different Types Copper Electrode For Spot Welding
Product Details
| Product Name | Best Weld Pro Different Types Of Spot Welding Copper Electrodes For Spot Welder | Application | Resistance Spot Welding Machine |
|---|---|---|---|
| Welding Type | Welding Accessroies | Material | CuCrZr |
| Type | Projection Welding Electrodes | Certification | CE |
| After Warranty Service | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided | Free Spare Parts, Field Installation, Commissioning And Training |
| Highlight | CuCrZr Copper Electrode For Spot Welding,CE Copper Electrode For Spot Welding,CuCrZr Copper Electrodes |
||
Product Description
Best Weld Pro Different Types Of Spot Welding Copper Electrodes For Spot Welder
Product Description
Spot welding electrode has a long service life. The key technology of non-stick electrode is the selection of electrode material, the shape of spot welding head, and the shape of electrode rod. Before designing the electrode, there are three key elements that designers need to be very clear: A) shape of the workpiece B) coating type of the workpiece C) geometric map of the workpiece welding (welding process route).
Technical Parameters
| Product Name | Spot Welding Copper Electrodes Cap | |||
| Samples | Provided, please contact us. | |||
| OEM | Accept Customized | |||
| Material | CuCrZr, CuBe2, or According to requirements | |||
| Material no. UNS (ASTM) | C18150, C17200, or According to requirements | |||
| Material description | Age hardenable Cu alloy with high electrical and thermal conductivity under a high degree of hardness and strength. | |||
| Size | According to customer's requirements | |||
| Application | Spot Welding | |||
Advantages
1.Chrome zirconium copper:high hardness, wear resistance, high temperature resistance and good heat dissipation.
2.Spot welding electrode head:it does not stick to the workpiece, and the welding is firm and efficient.
3.Spot welding electrode cap:the softening temperature is high, the hardness is still high under high temperature, and the welding process is not easy to deform.
4.Spot Welding: welding iron, stainless steel, cold rolled sheet, carbon steel plate, low carbon steel, galvanized plate and so on.
Different Types of Electrodes
Selection of Workpiece Material
Most spot welding is to weld one metal to another different metal. This application requires two different electrode materials. Another problem is that the workpiece is composed of different materials. For example, the pins of many axial electronic components are steel cores, with copper coating on the outer layer and tin coating on the outer layer. In most cases, the material of the workpiece determines the selection of electrode material.
For metals with low conductivity (high resistance), such as beryllium copper, platinum, nickel and steel, copper alloy need copper alloy electrode materials with high conductivity. The electrode with high conductivity will keep the heat on the work-piece contact surface instead of generating the heat on the electrode head.
High conductivity metals such as copper, some copper alloys and silver require low conductivity electrode materials such as tungsten copper, tungsten and molybdenum. The electrode head generates high heat, which is transmitted to the work-piece contact surface.
General Types
Images
Please note: the electrode cap tip can be custom-made according to your requirements.
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
