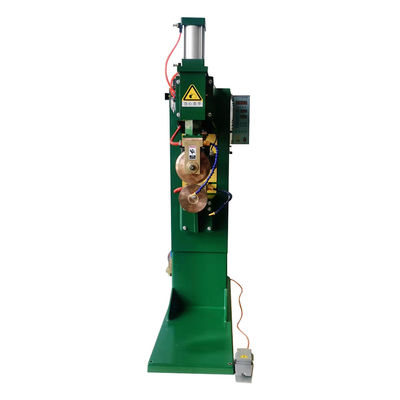

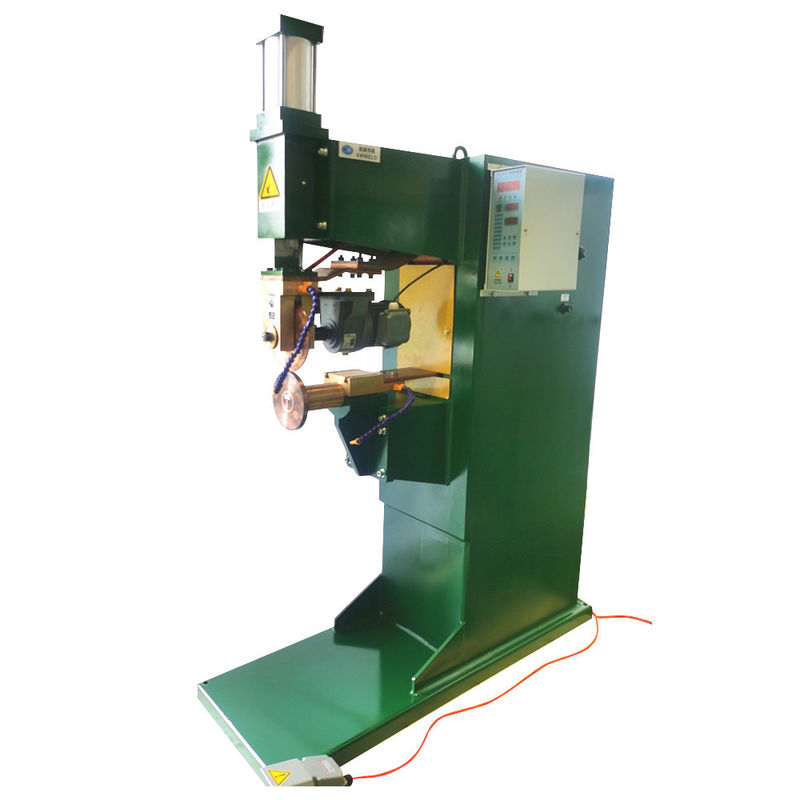

Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder

Place of Origin	China
Brand Name	XWH
Certification	CE
Model Number	FN
Minimum Order Quantity	1
Price	USD6000-USD10000
Packaging Details	Wooden Case
Delivery Time	15 working days
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	500 sets/month

Product Details

Product Name	Resistance Seam Welding Machine	Type	Portable Seam Welding Machine
MOQ	1 Set	Warranty	1 Year
Function	Tank Welding	Welding Mode	Roll Welding
Control System	Touch Screen	Working Mode	Auto Seam Welder
Highlight	Water Tank Circular Seam Welding Machine , Longitudinal Seam Welding Machine , Automatic Longitudinal Seam Welder

Leave a Message

Product Description

Weld Water Tank Circle Seam Welding Machine Automatic Longitudinal Seam Welder

Seam welding is a metal welding that forms a permanent bond. During welding, the welding part is pressed between two welding wheels, and the rotating welding wheel drives the welding part and electrified. The welding current heats up through the local part of the welding part, forming overlapping welding spots to form continuous welds, and realizing permanent connection. Seam welder is widely used in box, such as automobile, motorcycle oil tank; Barrel body, such as oil tank and forming plate workpiece, such as rinm, muffler, radiator, etc.

Product Description

Model Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700

compare with spot welding:

Seam welding machine is actually a development of resistance spot welding machine, its essence is the same as resistance spot welding machine. The difference is that spot welders usually weld only one spot at a time while seam welder is made up of overlapping joints like a sewing machine.

Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 0

Company Information

Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
