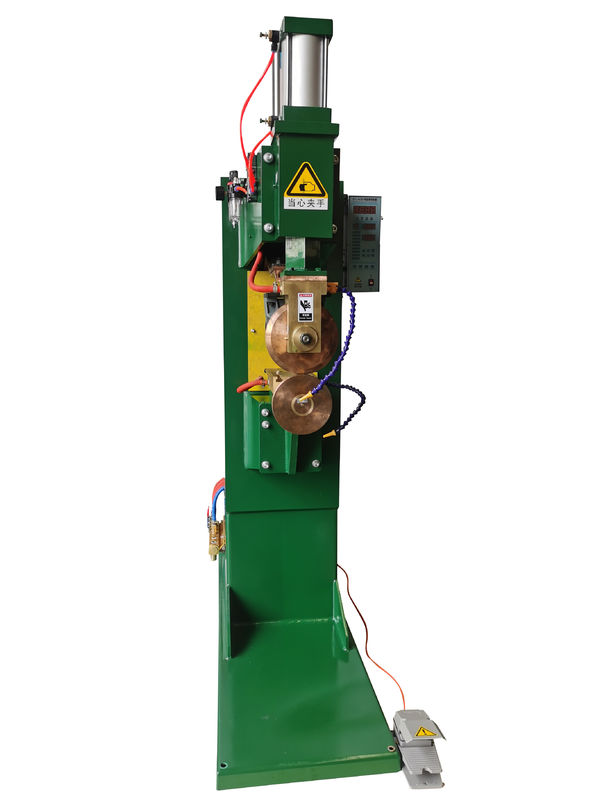

Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding
| Brand Name: | XWH |
| Model Number: | FN |
| MOQ: | 1 |
| Price: | USD6000-USD10000 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Ultrasonic Copper Pipe Resistance Seam Welder
,Ac Resistance Seam Welder
,ISO Resistance Seam Welding Machine
Ac Resistance Welding Ultrasonic Copper Pipe Welding Resistance Seam Welder
Seam welding machine is a resistance welding machine in which the workpiece is placed between the roller electrode or between the roller electrode and the strip electrode, continuously or intermittently rolling and intermittent or continuous application of current, forming a linear weld.
Product Description
|
Model Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
|
Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
|
Voltage input | V
| 380
| 380
| 380
| 380
| 380
|
|
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
|
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
|
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
|
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
|
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
|
Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
|
Motor Power | W | 550 | 750 | 750 | 750 | 400 |
|
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
| Weight | Kg | 380 | 510 | 630 | 530 | 700 |
compare with spot welding:
Seam welding machine is actually a development of resistance spot welding machine, its essence is the same as resistance spot welding machine. The difference is that spot welders usually weld only one spot at a time while seam welder is made up of overlapping joints like a sewing machine.
