Inverter Seam Welding Equipment Roller Spot Longitudinal Seam Welding Machine

Place of Origin	China
Brand Name	XWH
Certification	CE
Model Number	FN
Minimum Order Quantity	1
Price	USD6000-USD10000
Packaging Details	Wooden Case
Delivery Time	15 working days
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	500 sets/month

Product Details

Product Name	Resistance Seam Welding Machine	Welding Material	Metal Sheet Welding
MOQ	1 Set	Warranty	1 Year
Application	Water Heater Inner Tank Welding	Welding Mode	Roll Welding
Control System	Touch Screen	Working Mode	Auto Longitudinal Seam Welder
Highlight	Inverter Seam Welding Equipment , Roller Spot Longitudinal Seam Welding Equipment , ISO Longitudinal Seam Welding Machine

Leave a Message

Product Description

Inverter Seam Welding Equipment Roller Spot Longitudinal Seam Welding Machine

Seam welding machine is a resistance welding machine in which the workpiece is placed between the roller electrode or between the roller electrode and the strip electrode, continuously or intermittently rolling and intermittent or continuous application of current, forming a linear weld.

Product Description

Model Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700

Feature:

1. The welding process is stable and and the joint is smooth.

2. The welding wheel can move left and right, front and back so as to meet the welding requirements.

3. The whole machine adopts PLC and AC frequency conversion speed regulation to ensure the reliability.

4. Welding forms can be preset, stored and transmitted. You can easily change parameters and state transitions.

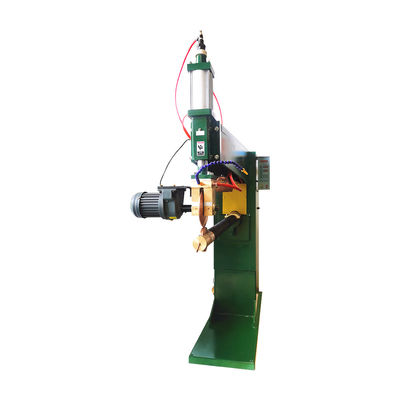

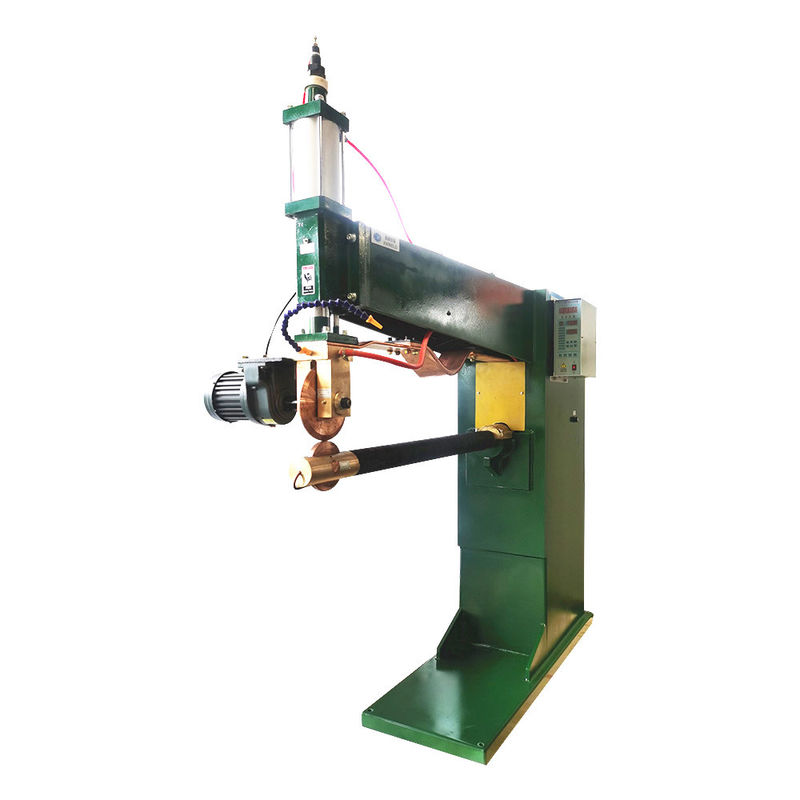

Inverter Seam Welding Equipment Roller Spot Longitudinal Seam Welding Machine 0

Company Information

Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
