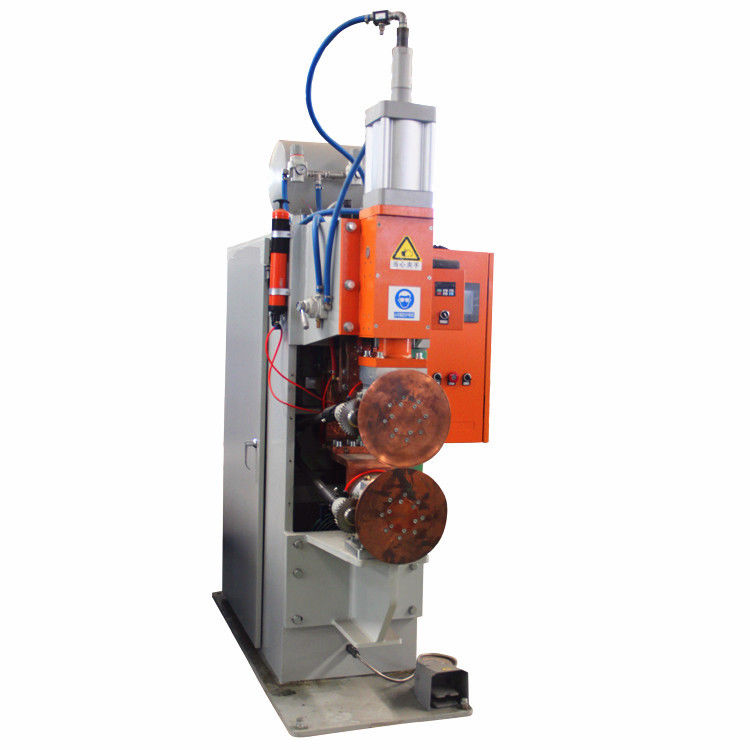

Precision Sheet Metal Resistance Pipe Welding Seam Welder Automatic Industrial

Place of Origin	China
Brand Name	XWH
Certification	CE
Model Number	FN
Minimum Order Quantity	1
Price	USD6000-USD10000
Packaging Details	Wooden Case
Delivery Time	15 working days
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	500 sets/month

Product Details

Product Name	Resistance Seam Welding Machine	Key Word	Fuel Tank Spot Welding Machine
Application	Solar Water Heater Tank	Warranty	1 Year
Packaging Type	Cartons	Function	Automatic Welding
Welding Mode	Resistance Welding	Working Mode	Auto Seam Welder
Highlight	Resistance Pipe Welding Seam Welder , Sheet Metal Seam Welder , Precision Resistance Seam Welding Machine

Leave a Message

Product Description

Automatic Precision Industrial Sheet Metal Resistance Pipe Welding Seam Welder

Seam welding machine is a resistance welding machine in which the workpiece is placed between the roller electrode

or between the roller electrode and the strip electrode, continuously or intermittently rolling and intermittent or continuous

application of current, forming a linear weld.

Product Description

Model Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700

Features:

1. The welding perfomance is stable and the welding process is very easy to adjust.

2. The seam welder uses the internal cooling while the welding wheel adopts the extenal colling.

3. Two welding modes: horizontal and vertical

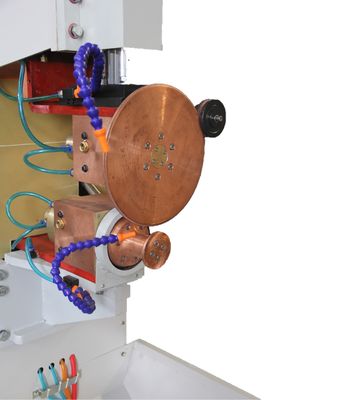

Precision Sheet Metal Resistance Pipe Welding Seam Welder Automatic Industrial 0

Company Information

Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
