Long Life Aid Cables 1M Water Cooled Kickless Secondary Cable For Suspension Spot Welder
| Brand Name: | XWH |
| Model Number: | XW |
| MOQ: | 5 |
| Price: | USD50-USD80 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
1M Water Cooled Kickless Cable
,Suspension Spot Welder Aid Cables
,Aid Cables 1M

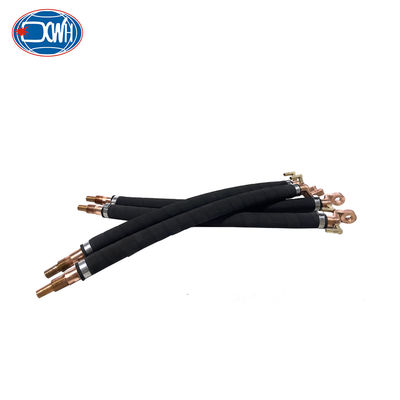

Long Life Aid Cables 1M Water Cooled Secondary Cable For Suspension Spot Welder
Aid cables, is a hollow specialized cable used for high current heating equipment, can be divided into kickless cables and secondary cables. Mainly used for hanging type spot welding machines or suspension spot welding machines. Mainly used for hanging type spot welding machines or suspension spot welding machines.
Parameter
| Item/Cross Section | 150 mm² | 200mm² |
| Length | 0.6m-1.2m | |
| Materials | Red Copper+Rubber | |
| Customization | Yes | |
Features
1.High-quality copper wire, making the least electrical impedance between the transformer output and welding gun.
2.Great flexibility during the work.
3.Smallest water pressure drop and good cooling effect.
4.The pouches and plum plastic core against the pressure, heat and abrasive, with maximum torsion flexion performance.
5. lowest magnetic induction impact.
6. Long life span and economic.
Standard Drawing
Cross Section 150mm²
Cross Section 200mm²
Besides standard models, we can customized according to your requirements. More details, please contact!
Scene images
Raw Materials: Pure Red Copper
Compare with Brass
Higher conductivity and thermal; conductivity,high ductility and plasticity.
Careful Protection :Additional Rubber Sleeve
Additional rubber sleeve is for anti scratch and aesthetically pleasing.

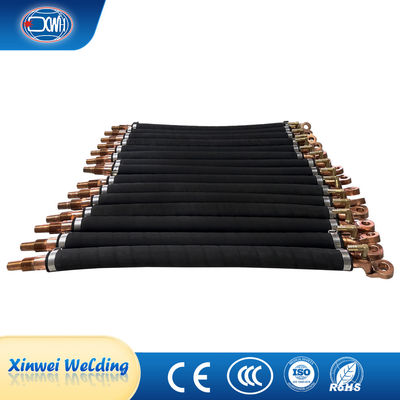

Finished Product
Application
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
