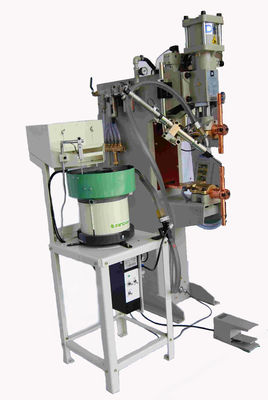

This nut feeder system is used for nut supply to the welding equipment. In order to improve productivity and prevent security
risks, it can conveyor the nuts quickly and accurately , which is a good solution for manual operate. Just wire nuts conveyor to
the welding controllers, its working is fast and safe, which has been widely used in many of the automobile industry.
All Products
-
Portable Spot Welding Machine
-
Stationary Spot Welding Machine
-
Multi Head Spot Welding Machine
-
Table Spot Welding Machine
-
Manual Spot Welding Machine
-
Single Side Spot Welding Machine
-
Seam Welding Machine
-
Robotic Spot Welding Gun
-
Diffusion Welding Machine
-
Laser Welder Machine
-
Stud Welding Machine
-
Kickless Cables
-
Nut Feeder Machine
-
Spot Welding Copper Electrodes
-
Industrial Spring Balancer
-
Car Dent Puller
-
Capacitor Discharge Spot Welding Machine
-
Kris Czurczak from PolandFeel free to expand on each section with more detailed information about your company. If you need a more specific example or further customization, let me know! -
Rebecca BrownCertainly! Here is a concise outline for a company introduction in English. You can customize it with specific details about your company. -
tomThis product is recommended by a friend. After purchase, I found that the quality is really good, the surface is smooth, there is no paint drop, and it is strong and durable. It is worth buying.

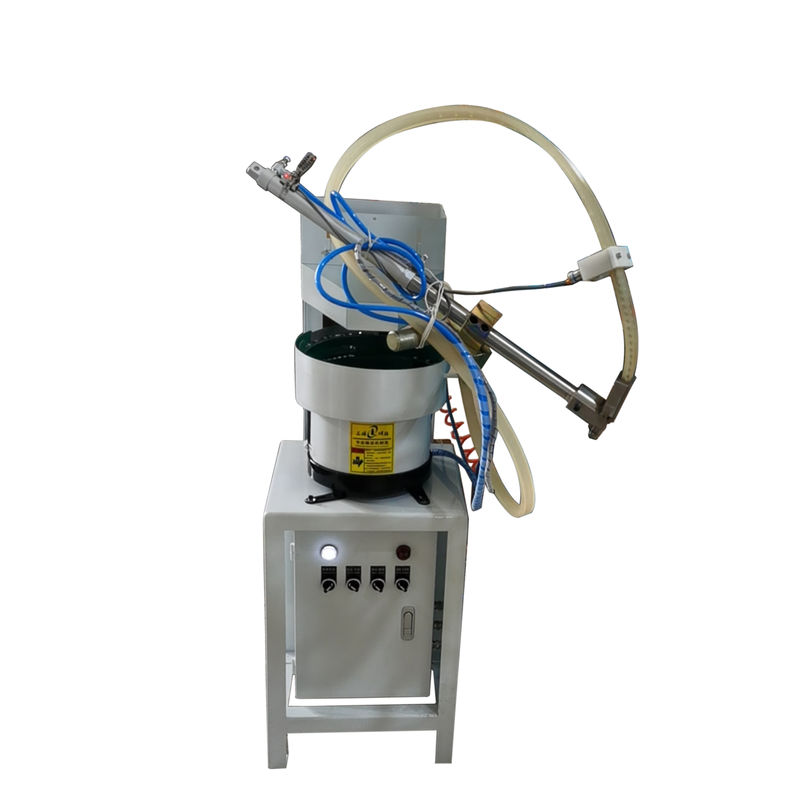

M4 220V 0.4MPa Square Nut Feeder Machine CE Certification
Product Details
| Product Name | Customized Machinery M4/M8/M12 Nut Feeder | Size | M4-M12, 7/16 |
|---|---|---|---|
| Voltage | 220V | Core Components | PLC, Motor |
| Bowl Size | 260mm, 350mm | Main Function | Automatic Form |
| Usage | Auto Feeding Nuts And Bolts | Air Pressure | 0.25-0.4MPa |
| Highlight | M4 nut feeder machine,0.4MPa nut feeder machine |
||
Product Description
Customized Machinery M4/M8/M12 Nut Feeder
| Power supply | AC220V, 50Hz / 60Hz Max 250 - 400VA |
| Nut shapes | Square, round. Hexagon, T, dome, with cover, with rib, collar etc. |
| Air pressure | 0.25 - 0.4MPa |
| Sizes | M4 - M12, 7/16 |
| Bowl size | φ260mm, φ350mm |
| Hopper capacity | 9L (10,000 pcs for M6 nut) |
| Supply capacity | 40 - 60pcs/min |
| Supply chute length | 2m |
| Angle | 0° - 90° |
| Weight | 50kg |
Detailed Images
Packing&Shipping
