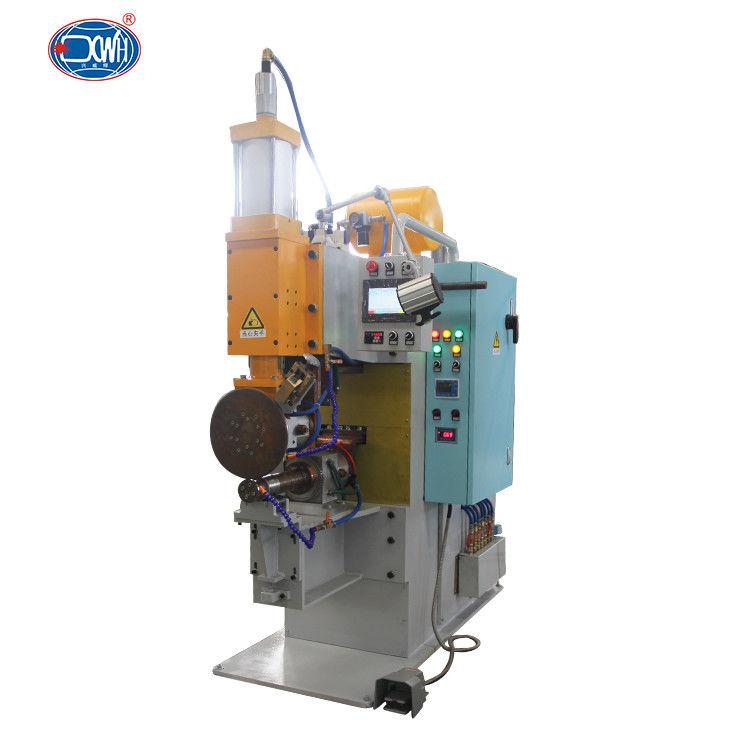

45KVA Straight Longitudinal Seam Welding Machine ISO Certification

  • 45KVA Straight Longitudinal Seam Welding Machine ISO Certification
  • 45KVA Straight Longitudinal Seam Welding Machine ISO Certification
Place of Origin China
Brand Name XWH
Certification CE
Model Number XW
Minimum Order Quantity 1
Price USD3900-USD10000
Packaging Details Wooden Case
Delivery Time 15 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 sets/month
Product Details
Product Name 45KVA Straight Longitudinal Seam Welding Machine Power 45KVA
Warranty 1 Year Welding Material Aluminum
Voltage 380v, 220V/380V/440V/480V Welding Mode Vertical And Horizontal
Welding Length 300-2500mm Type Arc Welding
Highlight

45KVA seam welding machine

,

ISO seam welding machine

,

45KVA longitudinal welding machine
Leave a Message
Product Description

45KVA Straight Longitudinal Seam Welding Machine





Product Description


Seam welding characteristics


1) Seam welding is the same as spot welding, which is a welding process that combines thermal-mechanical (force) action. In comparison, its mechanical (force) effect is insufficient in the welding process (except for step seam welding), and the faster the welding speed, the more obvious the performance.


2) Seam welding The seam is composed of welding points that overlap a part of each other, so the shunt during welding is more serious than that of spot welding, which brings difficulties to the welding of thick plates of high-conductivity aluminum alloys and magnesium alloys.


3) The surface of the roller electrode is prone to sticking and damage to deteriorate the surface quality of the weld, so the dressing of the electrode is a particularly noteworthy problem.


4) Since the cross-sectional area of the seam weld is usually more than 2 times the longitudinal load area of the base metal (the thinner the plate, the greater the ratio), the damage must occur in the heat affected zone of the base metal. Therefore, the joint strength is rarely emphasized on the seam welded structure, and it is mainly required to have good sealing and corrosion resistance.



Parameter



models Item
Rated power
Voltage input
Frequency
Max short circuit current
Working stroke
Welding efficiency
Max force
Max welding capacity
Motor power
Unit
KVA
V
Hz
KA
MM
0.7-3.9
N
MM
W
FN-80-H
80
380
50
26
100
0.7-3.9
6000
1.2+1.2
550
FN-100-H
100
380
50
30
100
0.7-3.9
6000
1.5+1.5
750
FN-160-H
160
380
50
40
100
0.7-3.9
7800
2.0+2.0
750
FN-100-E
100
380
50
30
100
0.7-3.9
6000
1.5+1.5
750
FN-160-E
160
380
50
40
100
0.7-3.9
7800
2.0+2.0
400
45KVA Straight Longitudinal Seam Welding Machine ISO Certification 0







Company Profie
45KVA Straight Longitudinal Seam Welding Machine ISO Certification 1
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in 2003 and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
