This nut feeder system is used for nut supply to the welding equipment. In order to improve productivity and prevent security
risks, it can conveyor the nuts quickly and accurately , which is a good solution for manual operate. Just wire nuts conveyor to
the welding controllers, its working is fast and safe, which has been widely used in many of the automobile industry.
|
PLC 250VA 60pcs/Min Nut Feeder Machine For Projection Spot Welder
| Brand Name: | XWH |
| Model Number: | XW |
| MOQ: | 1 |
| Price: | $1,000.00 - $5,000.00 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Projection Welding Machine Matching High Quality Nut Feeder
Size:
M4-M12, 7/16
Voltage:
220V
Core Components:
PLC, Motor
Bowl Size:
260mm, 350mm
Main Function:
Automatic Form
Usage:
Auto Feeding Nuts And Bolts
Air Pressure:
0.25-0.4MPa
Supply Ability:
1000 sets/month
Highlight:
PLC nut feeder machine
,60pcs/min nut feeder machine
Product Description

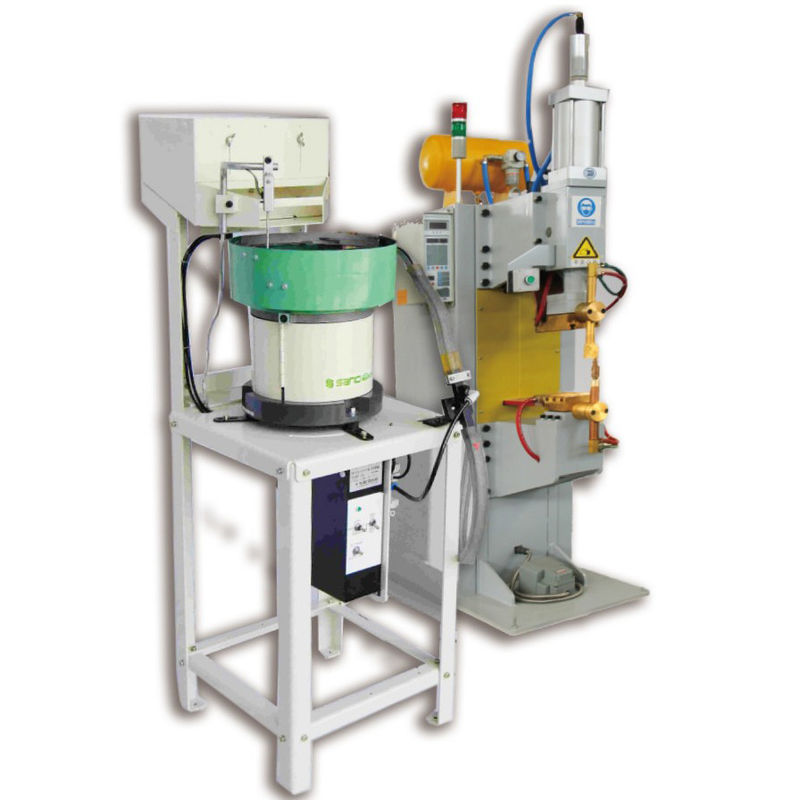

Projection Welding Machine Matching High Quality Nut Feeder Nut Feeder Machine
specification
| Power supply | AC220V, 50Hz / 60Hz Max 250 - 400VA |
| Nut shapes | Square, round. Hexagon, T, dome, with cover, with rib, collar etc. |
| Air pressure | 0.25 - 0.4MPa |
| Sizes | M4 - M12, 7/16 |
| Bowl size | φ260mm, φ350mm |
| Hopper capacity | 9L (10,000 pcs for M6 nut) |
| Supply capacity | 40 - 60pcs/min |
| Supply chute length | 2m |
| Angle | 0° - 90° |
| Weight | 50kg |

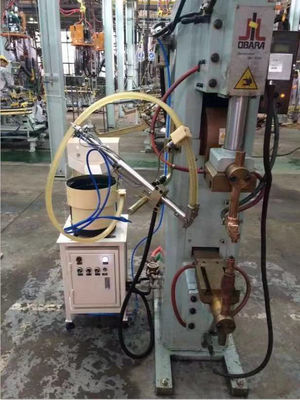

Detailed Images
Packing&Shipping
