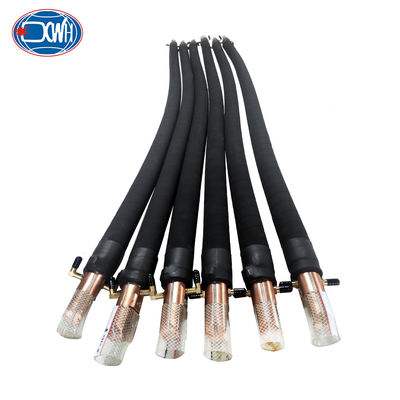

High Duty Different Types Of Kickless Cables For Suspension Spot Welder
| Brand Name: | XWH |
| Model Number: | XW |
| MOQ: | 5 |
| Price: | USD300-USD350 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Spot Welder Kickless Cables
,Welding Kickless Cables
,Spot Welder Cables
High Duty Different Types Of Kickless Cables For Suspension Spot Welder
Parameter
| Item Specifiction | 300mm² | 400mm² | Note | |
| Impedance | 2.0M | 480±15μΩ | 358±15μΩ | |
| 2.4M | 593±15μΩ | 445±15μΩ | ||
| Dc impedance value | 2.0M | 475μΩ | 355μΩ | |
| 2.4M | 587μΩ | 440μΩ | ||
| Resistance | 2.0M | 78μΩ | 74μΩ | Calculated Value |
| 2.4M | 82μΩ | 88μΩ | ||
| Power | =0.99 | =0.99 | ||
| Cooling water capacity | 7.0L/MIN | 7.0L/MIN | Pressure Loss of 0.7KG/cm | |
| Temperature rise characteristic | 2.0M | 45℃/5900A | 45℃/6800A | |
| 2.4M | 45℃/5400A | 45℃/6200A | ||
| Weight | 2.0M | 10.4KG | 13.2KG | Average Value |
| 2.4M | 12.2KG | 15.3KG | ||
Features
1. The inner core is made of pure purple copper core, which has low resistance, good conductivity, and is not easy to generate heat.
2. High quality rubber hose is used, which is resistant to high temperature, high pressure, aging and durable.
3. Manufacturing standards: 2 meters, 2.5 meters, 3 meters, 3.5 meters. If it needs to be extended, it can be customized.
Standard Drawing
Cross Section 300mm²
Cross Section 400mm²
Besides standard models, we can customized according to your requirements. More details, please contact!
Raw Materials: Pure Red Copper
The wire core is made of high-purity copper rods, which overcomes the shortcomings of traditional cable conductors such as fuzzing, breakage, and strand breakage, and achieves low impedance and high power.
Careful Protection :Additional rubber sleeve
Finished Product
Application
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
