Product Details:
|
| Product Name: | 130KVA Crank Arm Galvanized Sheet Table Spot Welding Machine | Frequency: | 50HZ/60HZ |
|---|---|---|---|
| Power: | 130KVA | Voltage: | 380V Or 480V Or Custom Made |
| Rated Duty Cycle: | 50% | Usage: | Table Spot Welding |
| Platform Distance: | 2000mm | Rated Capacity: | 25/35/50 KVA |
| Highlight: | 130KVA ac spot welding machine,0.5Mpa table spot welder,0.5Mpa ac spot welding machine |
||

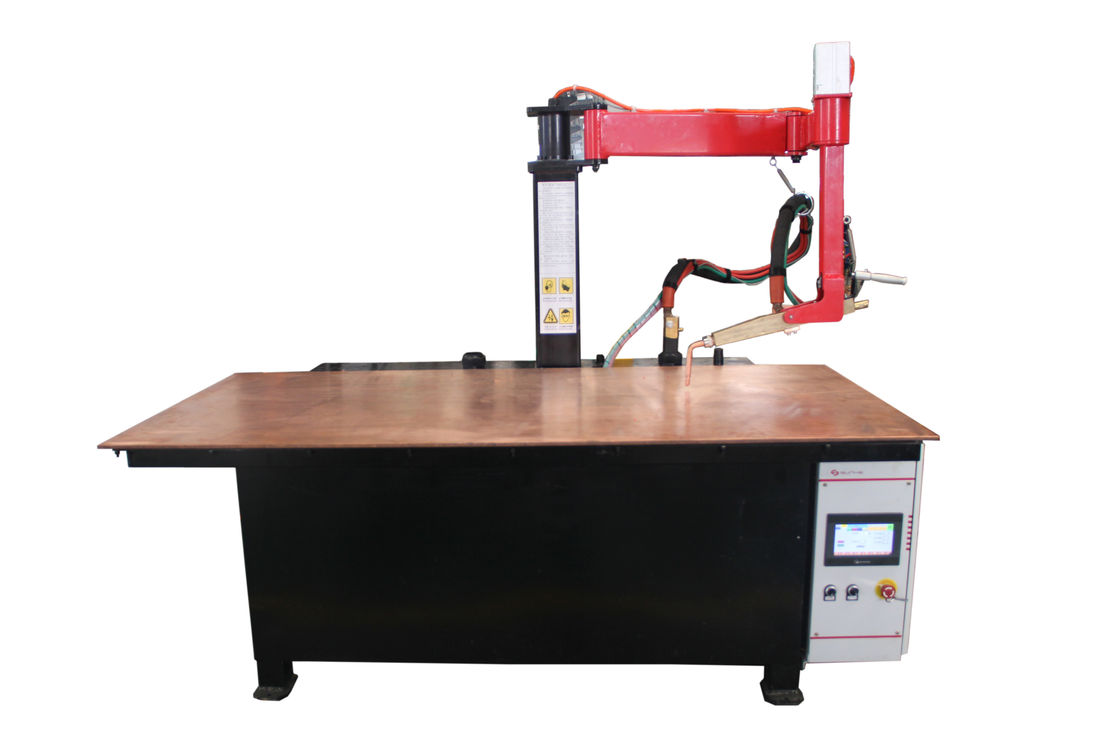

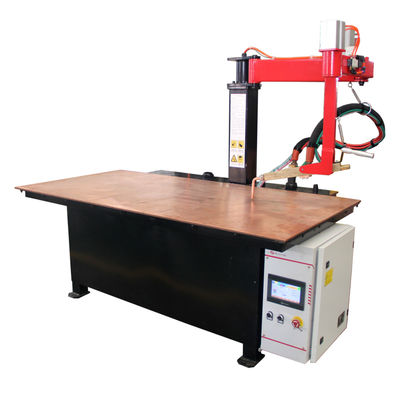

DNT-100K Rocker Arm galvanized sheet Table Spot Welding Machine
1. There are two types of Welding Power Source : AC Spot Welding or Medium Frequency inverter DC spot welding;
2. The lower welding electrode is designed level flat table:Welding range increased,the welded workpiece stays
very flat,not deformed,no mark and smooth under welding point;
3. The up welding electrode is designed as Multi-joint arm, welding easily, without moving work piece, only move the welding gun, can weld any position in the range of the down flat table;
Technical parameters
DNT-100K Rocker Arm galvanized sheet Table Spot Welding Machine
Rated Capacity: 50KVA~200KVA,
Input Voltage:220V/380V~480VAC(Optional), 50Hz/60Hz
Air Source Pressure: =0.5Mpa;
Electrode Force: =2.2KN
Welding Table Size:800mm(W) ×1000mm(L);
Welding Table Height: 750~950mm (200mm Stroke);
Welding Gun Type: Horizontal Gun or Vertical Gun
(Optional);
Welding Gun Length: 395mm;
Machine Size : L:1580mm×W:1000mm×H:1900mm;
Machine Weight: 850kg
