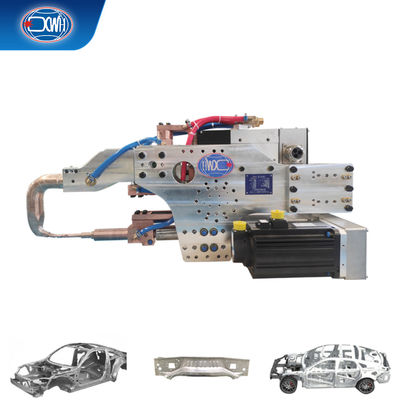

Mfdc Resistance Industrial Automatic Welder Heavy Duty Robot Spot Welding Gun C Type
| Brand Name: | XWH |
| Model Number: | DB3-100, DB3-160 |
| MOQ: | 1 |
| Price: | USD8500-USD12000 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Industrial Automatic Robot Spot Welding Gun
,Heavy Duty Robot Spot Welding Gun
,Mfdc Resistance Robot Spot Welding Gun
Mfdc Resistance Industrial Automatic Welder Heavy Duty Robot Spot Welding Gun C Type
Product Introduction:
Spot welding robot welding tongs are another new type of welding tongs, following manual and automatic welding tongs. They have a significant impact on the effectiveness and potential of robots. By designing four unique floating mechanisms with automatic compensation function for spot welding robot welding tongs, automatic adjustment welding and electrode wear adjustment functions that cannot be achieved by machine and human welding are achieved.
Advantages:
1. The welding tongs can be used with integrated electric cylinders and combined servo electric cylinders at the same time.
2. Self-made transformer, compact structure, there are two series of 1000HZ/2000HZ.
3. Aluminum structure of welding tongs, light weight.
4. X, C type clamp body has a high degree of standardization, interchangeability can reach 80%, which can reduce the reserve of spare parts.
5. The clamp body has good rigidity, and the electrode pressure can reach 600kg, which can meet the needs of high current welding.
6. Easy to disassemble and maintain.
Technical Parameters:
| Models/Item | unit | DB3-100 | DB3-160 |
| Transformer’ s Rated Capacity | KVA | 100 | 160 |
| Primary Power | V | 500V 1000Hz | 500V 1000Hz |
| Max Shortcut Current | KV | 1.6 | 2.2 |
| Max Gun Mouth Current’s Open | MM | 150 | 250 |
| Max Electrode Pressure | N | 4000 | 4500 |
| Cooling Consumption | L/min | 15 | 15 |
| Arm Material | CuCrZr | CuCrZr | |
| Connecting Way Robot | Up, down,left,right,backward | Up, down,left,right,backward | |
| Servo motor | KUKA,ABB,Delta | KUKA,ABB,Delta | |
| Welding thickness | MM | 0.8+0.8,1.2+1.2,1.5+1.8 | 0.8+0.8,1.2+1.2,2+2,2.5+2.5 |
Drawings:
X-type robot welding guns: mainly used for welding flat surfaces, with an arc-shaped current. This is due to the X-shaped welding pliers, which have a longer throat depth. The welding area that can be penetrated is longer.

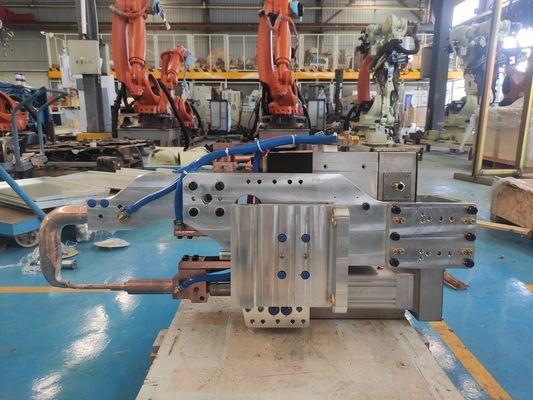

C-type robot welding guns: mainly used for vertical welding. The spot welding position is a vertical or near vertical area. The throat width of C-type welding pliers has requirements for the size of the processed parts. C-type welding pliers can also be divided into single stroke and double stroke.
Scene Images:
Application:
FAQ:
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
