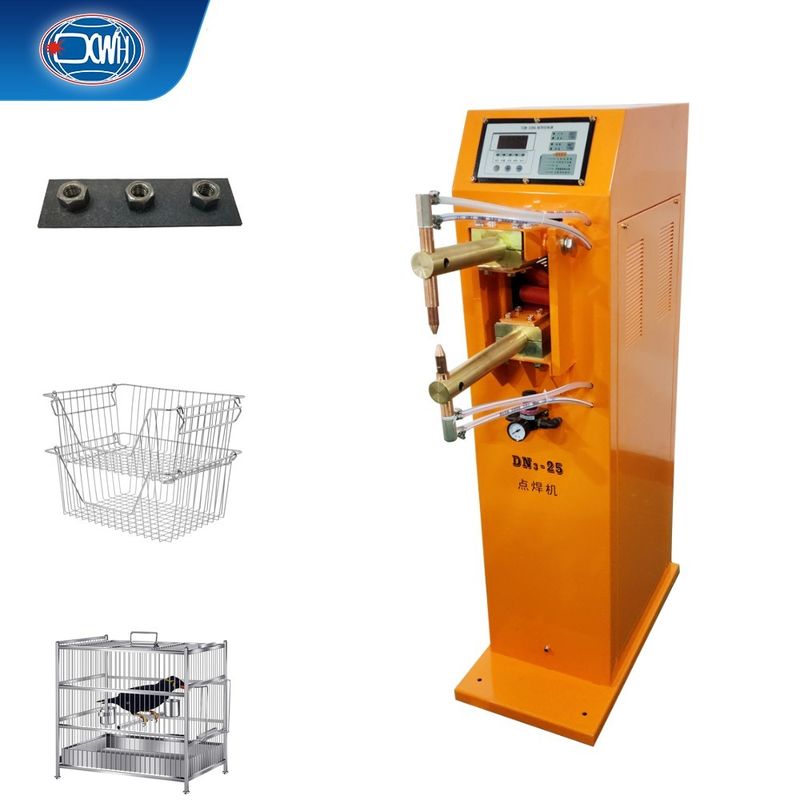

Spotter Welder 2Mm Sheet Metal Steel Pneumatic Industrial Welding Machine Price
| Brand Name: | XWH |
| Model Number: | DN3-16, DN3-25, DN3-35 |
| MOQ: | 1 |
| Price: | USD1000-USD1200 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Pneumatic Industrial Spotter Welder
,Industrial Welding Machine Spotter Welder
,2Mm Sheet Metal Spotter Welder
Spotter Welder 2Mm Sheet Metal Steel Pneumatic Industrial Welding Machine Price
Product Introduction:
Pneumatic spot welder machine is a spot welding equipment that relies on a compressed air source to provide welding pressure. Its main feature is that the welding cylinder on the pressurization mechanism generally acts vertically on the spot welding head, providing stable pressure for welding.
Advantages:
1.The pneumatic spot welding machine is controlled by microcomputer circuit which has a high accuracy.
2. The fine adjustment of welding current can be controlled between 20% to100%.
3. The transmission rod is operated by foot, which is beautiful and durable while using.
4. The welding time is adjustable and the welding repeatability is excellent.
5. Suitable for welding wire crafts, daily hardware, furniture lighting, box and sheet metal parts.
Technical Parameters:
| Product Welding Video | We provide technical guidance videos, product welding videos, and samples please contact us. | |||
| Overseas on-site technical team | South America, Southeast Asia,etc | |||
| One-stop service | Spot welding machine / Seam welding machine / Welding robot /Kickless Cables / Controller / Spring Balancer / Welding Electrode Cap Tip | |||
| Models Item | DN3-35 | DN3-25 | DN3-16 | |
| Rated Power at 50% | 35KVA | 25KVA | 16KVA | |
| Rated Primary Power | 380V | 380V | 380V | |
| Rated Primary Current | 92A | 66A | 42.1A | |
| Rated Duty Cycle | 10% | 10% | 10% | |
| Model of the Controller | TCW-32H | TCW-32H | TCW-32H | |
| Adjustment Rated | 1 | 4 | 4 | |
| Arms Length | 400mm | 400mm | 400mm | |
| 280mm | 280mm | 280mm | ||
| Max. Strength at Electrodes | 1400N | 1400N | 860N | |
| Max. Welding Capacity | 3+3mm | 2.5+2.5mm | 2+2mm | |
| Cooling Way | MainTansiomer: Air Electrode: Water | MainTansiomer: Air Electrode: Water | MainTansiomer: Air Electrode: Water | |
Use Method:
1. When welding, the position of the electrode rod should be adjusted first, so that when the electrode is just pressed onto the weldment, the electrode arms remain parallel to each other.
2. The selection of the number of stages for the current regulation switch can be based on the thickness and material of the solder joint. After power on, the power indicator light should be on, and the electrode pressure can be adjusted by adjusting the spring pressure nut to change its compression degree.
3. After completing the above adjustments, the cooling water can be turned on first and then the power can be turned on to prepare for welding. Procedure for welding process: Place the weldment between two electrodes, step on the foot pedal, and make the upper electrode contact the weldment and apply pressure. When continuing to press the foot pedal, the power contact switch is turned on, and the transformer starts working. The secondary circuit is energized to heat the weldment. When the pedal is released after welding for a certain period of time, the electrode rises, and the power is cut off first and then restored to its original state using the tension of the spring. The single point welding process ends.

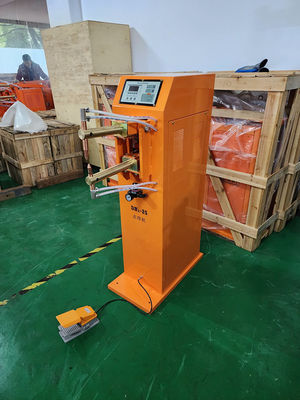

Images:
Application:
FAQ:
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
