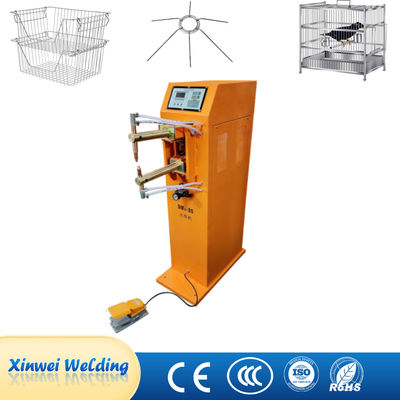

Small Size Industrial Pneumatic Ac Spot Welder Welding Machine 25 Kva For Steel
| Brand Name: | XWH |
| Model Number: | DN3-16, DN3-25, DN3-35 |
| MOQ: | 1 |
| Price: | USD1000-USD1200 |
| Packaging Details: | Wooden Case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Small Size Pneumatic Spot Welder
,Steel Pneumatic Spot Welder
,25 Kva Pneumatic Spot Welder
Small Size Industrial Pneumatic Ac Spot Welder Welding Machine 25 Kva For Steel
Product Introduction:
Pneumatic spot welder machine is a spot welding equipment that relies on a compressed air source to provide welding pressure. Its main feature is that the welding cylinder on the pressurization mechanism generally acts vertically on the spot welding head, providing stable pressure for welding.
Advantages:
1.The pneumatic spot welding machine is controlled by microcomputer circuit which has a high accuracy.
2. The fine adjustment of welding current can be controlled between 20% to100%.
3. The transmission rod is operated by foot, which is beautiful and durable while using.
4. The welding time is adjustable and the welding repeatability is excellent.
5. Suitable for welding wire crafts, daily hardware, furniture lighting, box and sheet metal parts.
Technical Parameters:
| Product Welding Video | We provide technical guidance videos, product welding videos, and samples please contact us. | |||
| Overseas on-site technical team | South America, Southeast Asia,etc | |||
| One-stop service | Spot welding machine / Seam welding machine / Welding robot /Kickless Cables / Controller / Spring Balancer / Welding Electrode Cap Tip | |||
| Models Item | DN3-35 | DN3-25 | DN3-16 | |
| Rated Power at 50% | 35KVA | 25KVA | 16KVA | |
| Rated Primary Power | 380V | 380V | 380V | |
| Rated Primary Current | 92A | 66A | 42.1A | |
| Rated Duty Cycle | 10% | 10% | 10% | |
| Model of the Controller | TCW-32H | TCW-32H | TCW-32H | |
| Adjustment Rated | 1 | 4 | 4 | |
| Arms Length | 400mm | 400mm | 400mm | |
| 280mm | 280mm | 280mm | ||
| Max. Strength at Electrodes | 1400N | 1400N | 860N | |
| Max. Welding Capacity | 3+3mm | 2.5+2.5mm | 2+2mm | |
| Cooling Way | MainTansiomer: Air Electrode: Water | MainTansiomer: Air Electrode: Water | MainTansiomer: Air Electrode: Water | |
Key Points For Use:
1. Before welding, spot weld the shell and connect the bottom wire, clean the electrode contacts, and remove the rust spots on the welded parts.
2. During spot welding, the electrode should first compact the weldment and then be electrified for welding, otherwise electric sparks may damage the surface of the weldment.
3. The appropriate current and time should be adjusted according to the thickness of the weldment to ensure full penetration of the weldment (do not fluctuate the current adjustment switch or time relay simultaneously during spot welding).
4. The required electrode electrical pressure and travel switch position can be adjusted on the top screw.

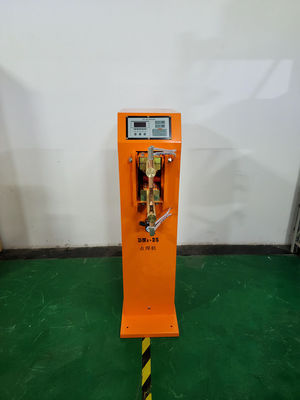

Images:
Application:
FAQ:
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
