Soldadura Por Punto Resistance Cnc Foot Operated Spot Welding Welder Machines
Product Details
| Product Name | Pedal Type Spot Welding Machine | Machine Type | Resiatance Welding Machine |
|---|---|---|---|
| Application | Metal Spot Welding | Welding Material | Alloy Metal Aluminum Stainless Steel |
| Keyword | Manual Spot Welding Machine | Certification | CE |
| After Warranty Service | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided | Free Spare Parts, Field Installation, Commissioning And Training |
| Highlight | Resistance Spot Welding Machines,Cnc Spot Welder Machines,Foot Operated Spot Welder Machines |
||
Product Description
Soldadura Por Punto Resistance Cnc Foot Operated Spot Welding Welder Machines
Product Introduction:
The DN series foot operated spot welding machine uses electrodes to pressurize the welded part while being energized, and uses the Joule heat (instantaneous) generated by the contact resistance between electrodes to melt the metal to achieve the purpose of welding. No need to add any solder, high efficiency, low cost, and other characteristics.
Technical Parameters:
| Models/Item | DN-35 | DN-25 | DN-16 | DN-10 |
| Rated Power at 50% | 35KVA | 25KVA | 16KVA | 10KVA |
| Rated Primary Power | 380V | 380V | 380V | 380V |
| Rated Primary Current | 92A | 66A | 42.1A | 26.3A |
| Rated Duty Cycle | 10% | 10% | 10% | 10% |
| Secondary Unload Voltage | 2.6～4.2V | 2.3～3.55V | 1.98～3.01V | 1.65～2.4V |
| Adjustment Rated | 4 | 4 | 4 | 4 |
| Welding Time Adjustment | 0～9.99s | 0～9.99s | 0～9.99s | 0～9.99s |
| Arms Length | 280mm | 280mm | 280mm | 260mm |
| Max. Welding Capacity | 3+3mm | 2.5+2.5mm | 2+2mm | 1.5+1.5mm |
| Cooling Ways | Main Transformer: Air air cooling Electrode: Water cooling | |||
Advantages:
1. Reasonable lever pressurization and force distribution power transmission structure, easy to operate and flexible.
2. Adjustable welding time and good welding repeatability.
3. Thyristor controlled turn on or off electric circuit ensure the machine be turned off quickly and be more reliable.
4. Widely used in metal container manufacturing, construction machinery repair, automotive parts, bicycle parts, special-shaped marking standards, electronic components, instruments and meters, electrical switches, cable production, filters, silencers, metal packaging, chemical containers, wire mesh, mesh baskets and other metal product industries.

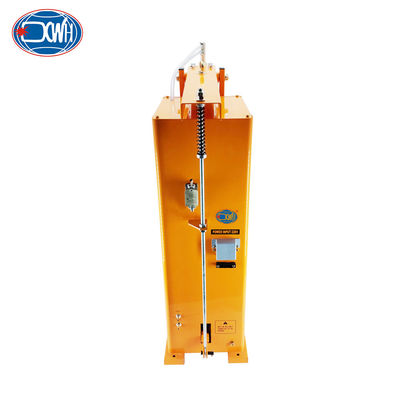

Detail Images:

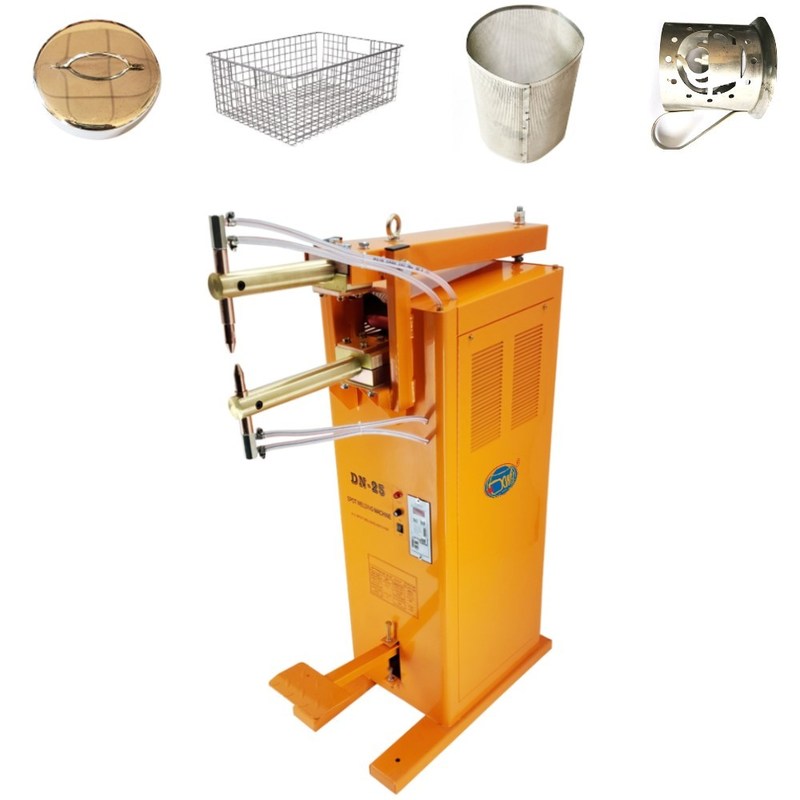

Scene Images:
Please note: the pedal spot welder can be custom-made according to your requirements.
